EM8080 Wireless Three-Phase Current Monitor, also known as a three-phase imbalance analyzer, is used to monitor and record three-phase current data and analyze three-phase imbalances in power lines. It provides accurate data for load redistribution in transformer districts, prevents indiscriminate load shedding, effectively resolves issues of severe load imbalance in transformer districts, and offers a technical solution to ensure the safe and economical operation of equipment.

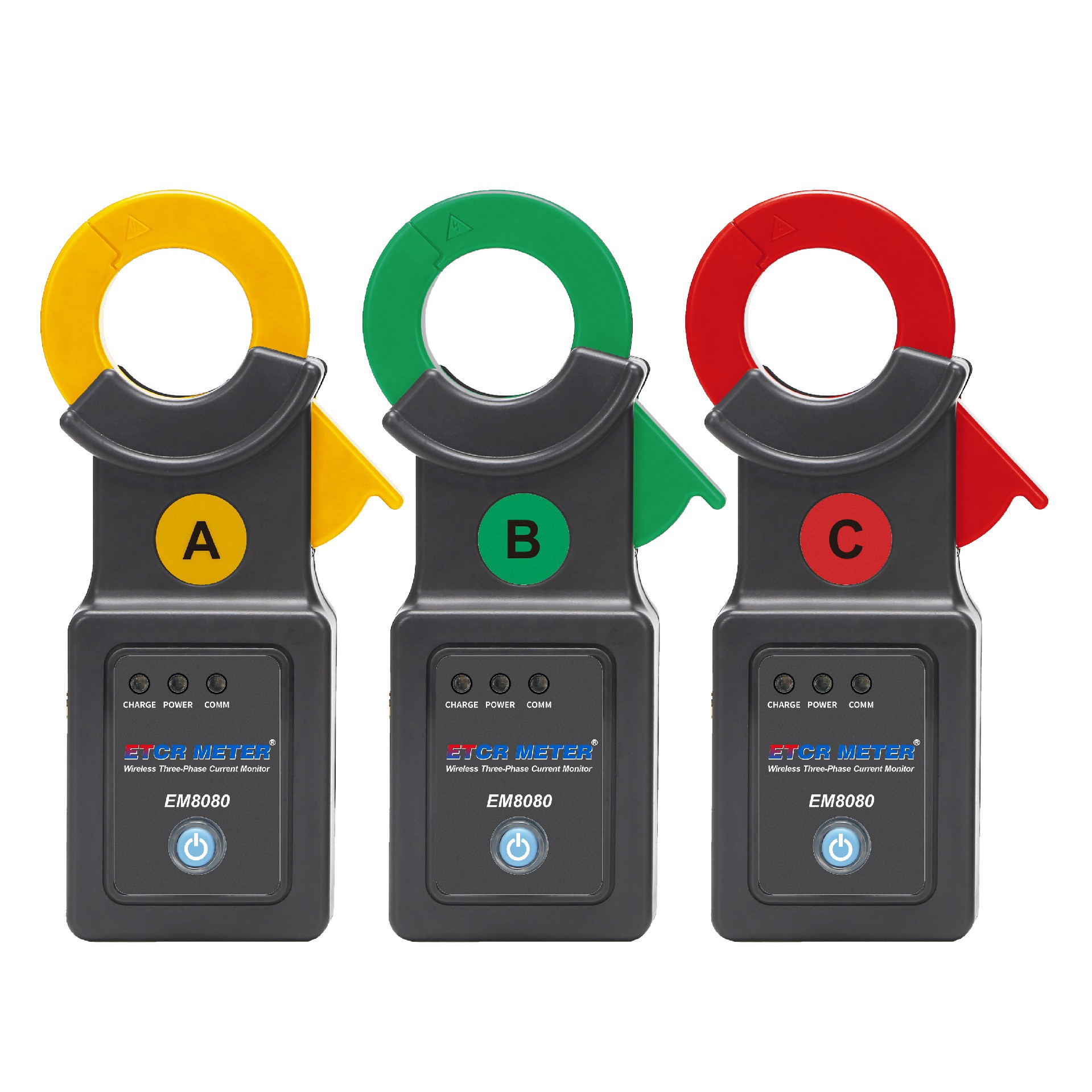

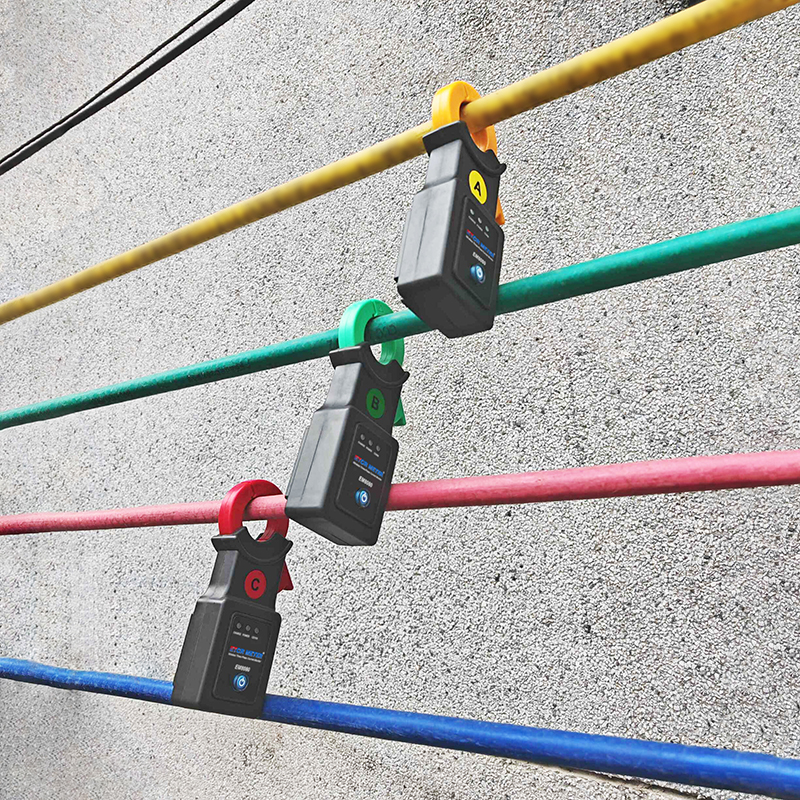

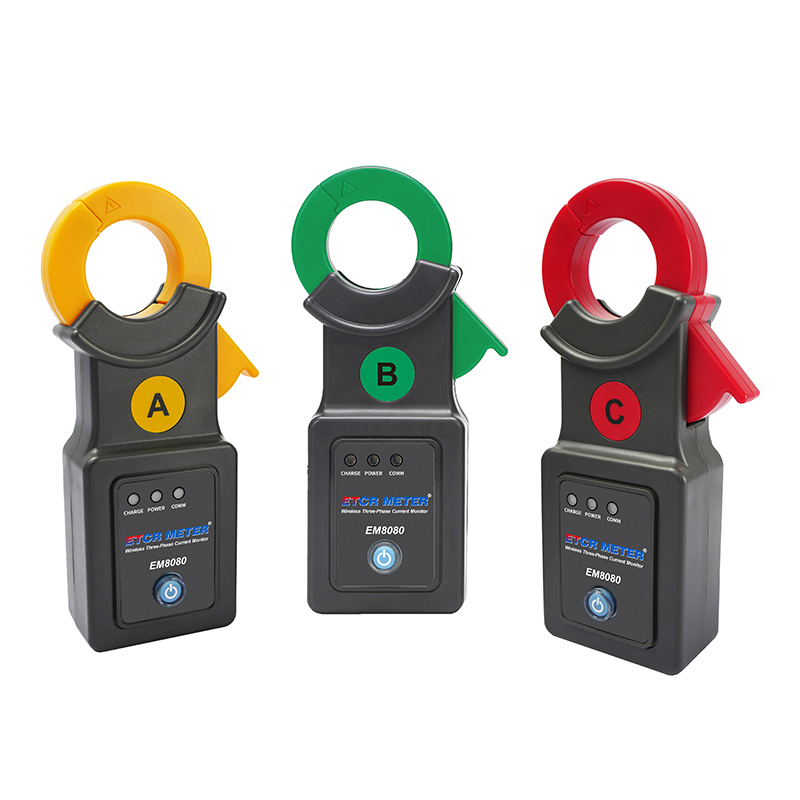

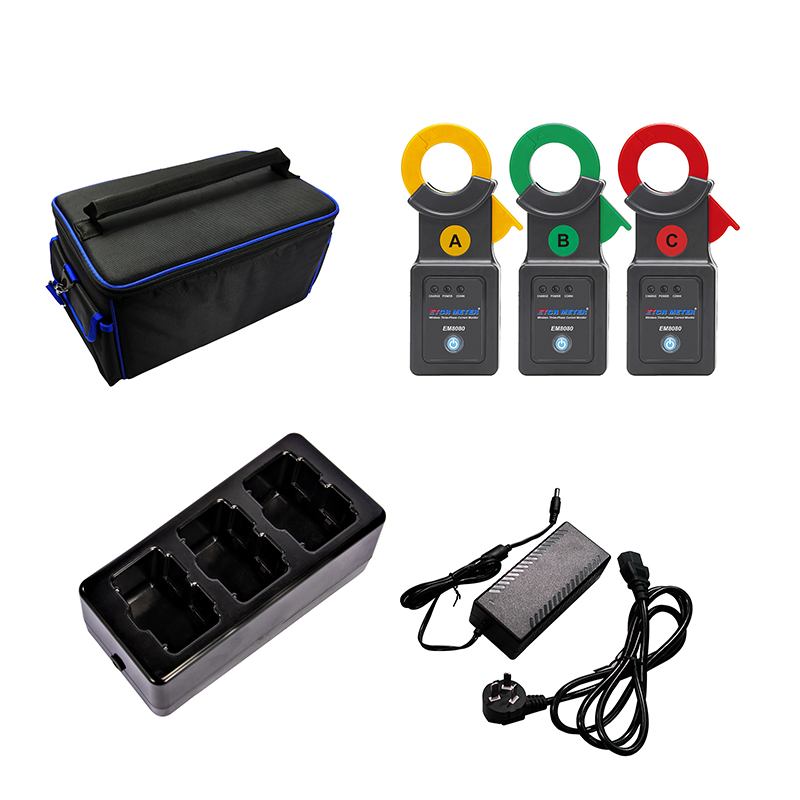

EM8080 Wireless Three-Phase Current Monitor consists of three current clamps and a cloud-based backend system. It employs a multi-connection communication method, with all three clamps featuring built-in Bluetooth connectivity; Clamp A also includes built-in 4G connectivity. During operation, the three current clamps are attached to the A, B, and C phases of the power transmission line, respectively. The clamps collect real-time data on the three-phase currents of each branch, The system then calculates the average current over a unit of time (15 minutes) and stores this data in the device’s flash memory. At the top of every 15-minute interval, the Phase B and Phase C units transmit their average current values for that period via Bluetooth to the Phase A clamp, which features 4G connectivity. The Phase A current clamp uploads the average current values for each phase over the specified time period to the backend server. Users can access the backend or connect to the Phase A current clamp via Bluetooth on their mobile devices to import the three-phase current data, allowing them to view the three-phase load current data and trends.
ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.


Product Features
1. The monitoring device utilizes multi-connection communication technology to achieve multi-connection communication between devices, between devices and mobile phones, and with the backend server.
2. The monitor can measure and record data such as the average, maximum, and minimum values of three-phase current, and three-phase imbalance, displaying a trend graph of three-phase current changes over time.
3. Device number, test interval, etc., can be set on-site via Bluetooth or remotely in the backend via 4G communication, and device number, battery level, and three-phase load data can be viewed.
4. Extremely low operating power consumption ensures continuous monitoring for extended periods on-site.

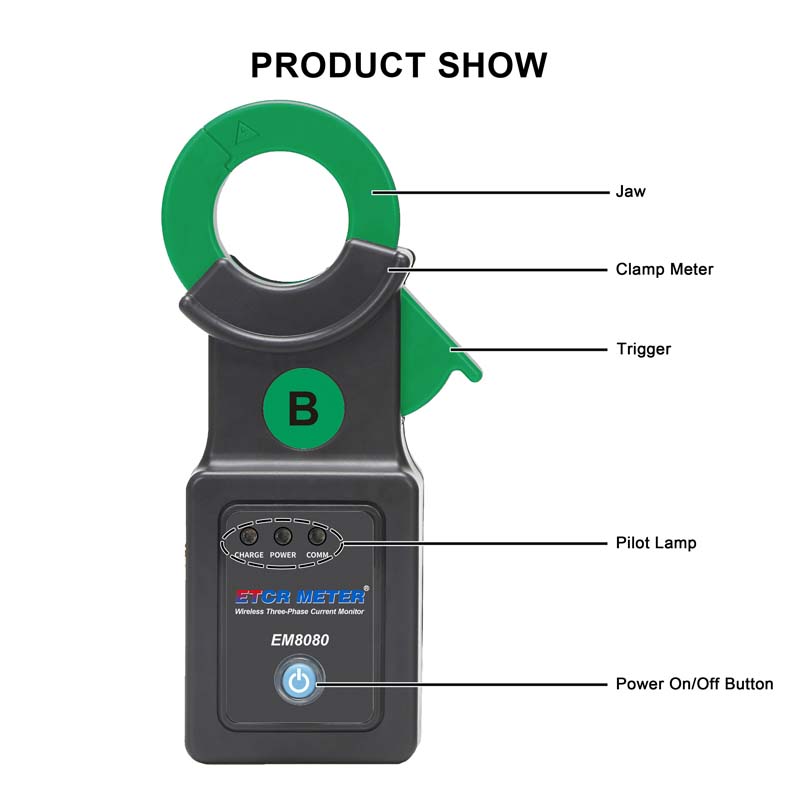

5. The monitoring device adopts a clamp-like structure, eliminating the need to disconnect the circuit under test, ensuring safe and quick testing.
6. The monitoring device is waterproof and dustproof, with an IP65 protection rating.
7. The monitoring device has an anti-theft function with a built-in electronic lock. It can be connected to Bluetooth and controlled via an app to lock or unlock the clamp head, allowing for outdoor installation.
8. The monitoring device has a built-in high-capacity lithium battery, providing an ultra-long battery life.

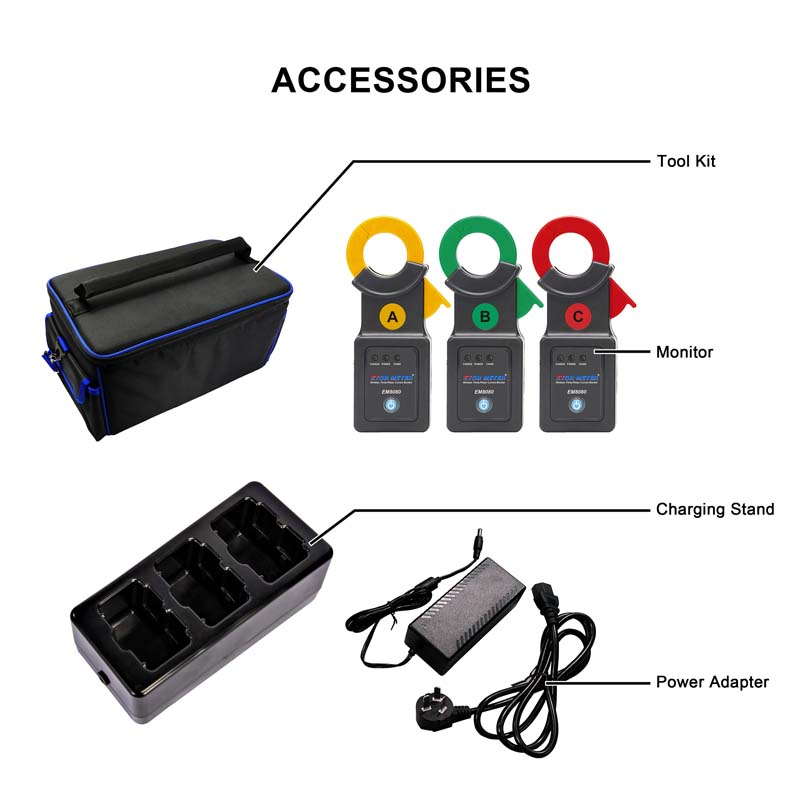

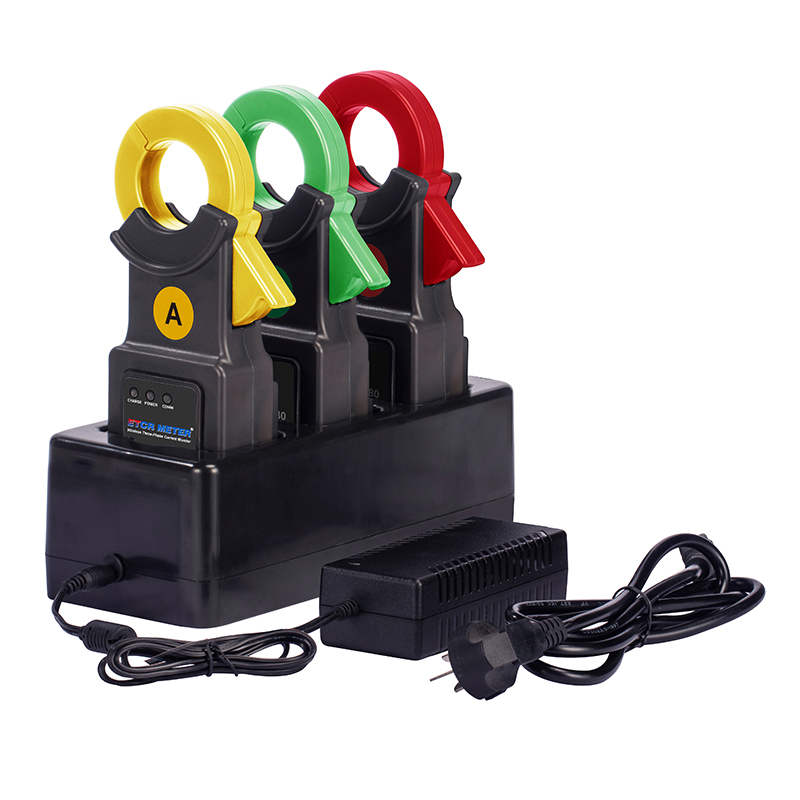

9. The monitoring device comes with a charging dock, which can charge up to three monitors simultaneously.
