Power Supply

AC 220V

Built-in Lithium Battery

DC 22.2V 5200mAh

Measurement Range

1.000mΩ~10.00Ω

AUTO

1.000mΩ~20.00mΩ

10A

10.00mΩ~200.0mΩ

5A

100.0mΩ~2.000Ω

1A

1.00Ω~10.00Ω

100mA

Max Resolution

1uΩ

Measurement Accuracy

0.5%FS

Test Current Gear

AUTO, 10A, 5A, 1A, 100mA

Output Voltage

24V MAX

Measurement Radius

50m

Measurement Time

Sampling AD speed 1s/time

Alarm Function

Can set the alarm value, When the test value exceeds the alarm setting value, the buzzer will have alarm sound prompt

Data Storage

The results are displayed automatically after each testing, data storage 600 groups (data will not be lost after power failure or battery replacement)

Discharge Function

Automatic discharge after testing, and discharge indication clear, avoid the misoperation

Automatic Shutdown

After setting automatic shutdown, 15 minutes without any operation after starting up will automatic shutdown

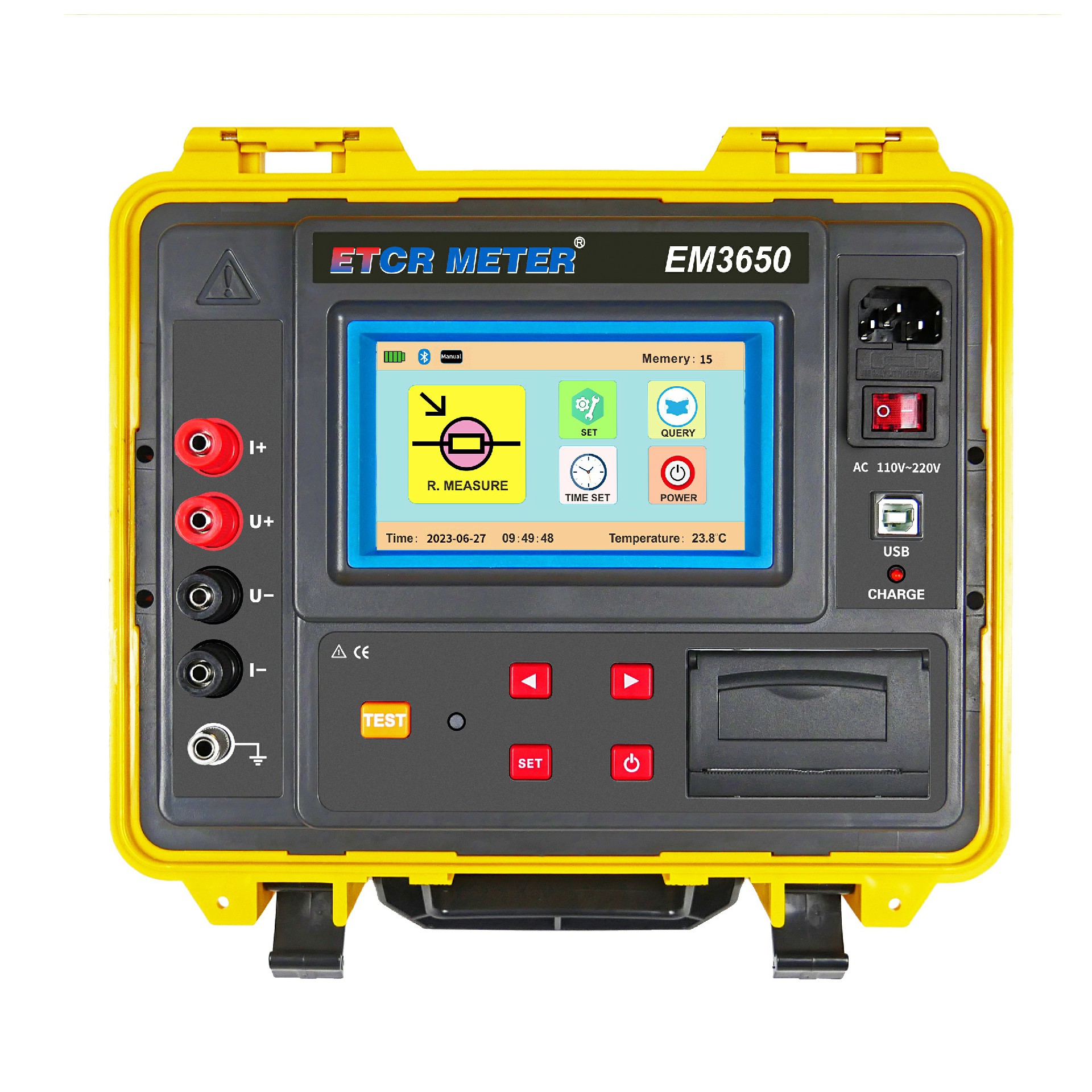

Display Mode

5 inch colorful touch screen, resolution: 480X854

Host Dimension

280mmX260mmX160mm

Weight

Total weight: 20.1kg(include all accessories)

Printer

Built-in printer

Bluetooth Communication

Yes, after installing the APP, can view the test result on mobile

USB Interface

With USB interface, software monitoring, storage data can be uploaded to computer, save and print.

Withstand Voltage

AC 3700V/rms(between the housing and screws)

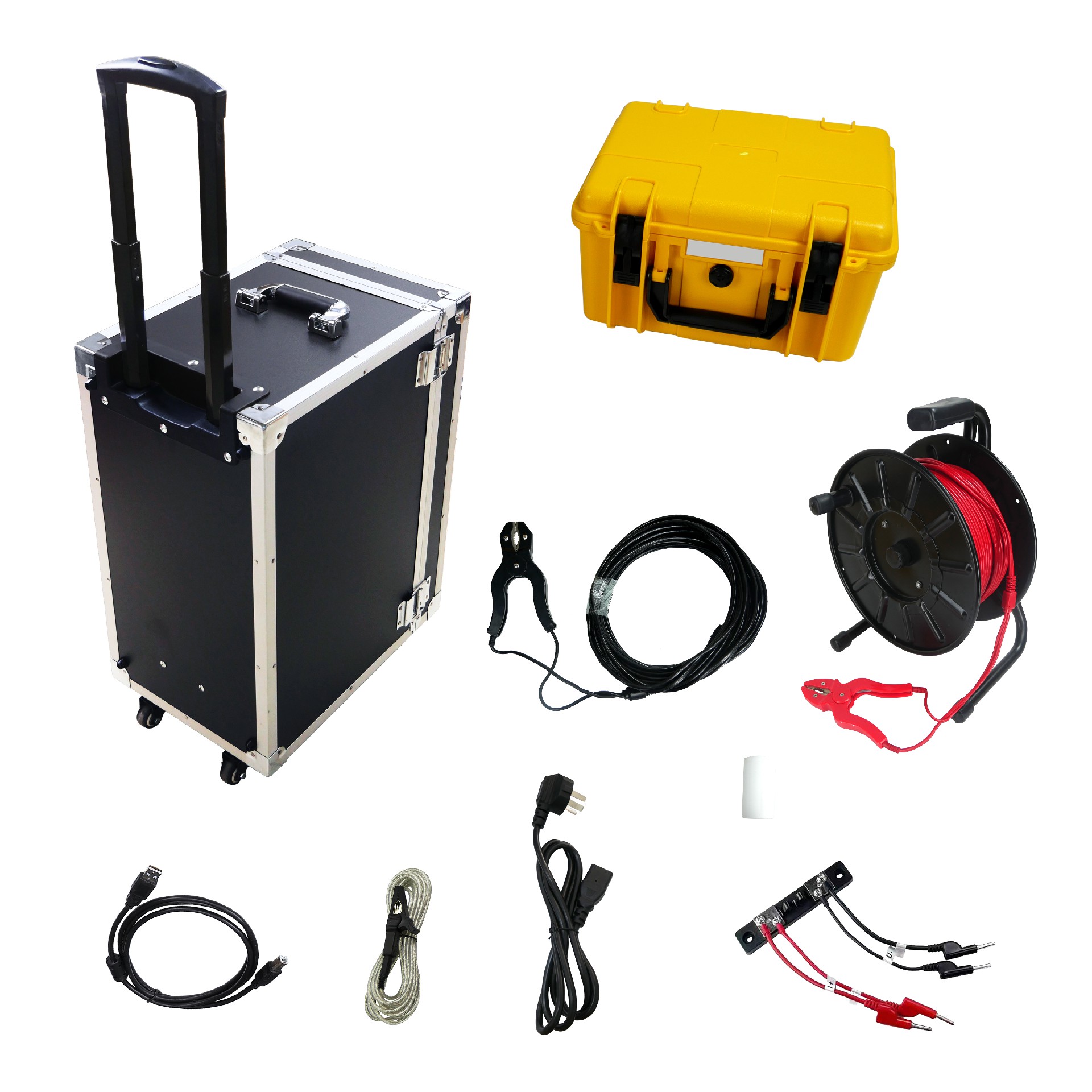

Accessories

Tester: 1PCS; Power Line: 1PCS; Test Line: 2PCS(each 1PCS of red and black); Ground lead: 1PCS; Charger: 1PCS; USB communication cable: 1PCS; 3.75mΩ standard resistor: 1PCS; Print paper: 1roll; Tool Case: 1PCS
