ETCR METER Split Type Leakage Current Sensor Series
  • Product Series : Split Type Leakage Current Sensor

    • Main Features

      Used for online detection of AC leakage current, phase, electrical energy, power, power factor, and harmonics
      Products comply with RoHS environmental protection requirements
      Products meet CE requirements
      Can output current signal or voltage signal
      Terminal blocks: S1, S2 coil tap end, GND shielded end
      Accept customer customization

    Product Introduction

    Technical Parameters

    Performance characteristics of open and closed leakage current transformer series products:

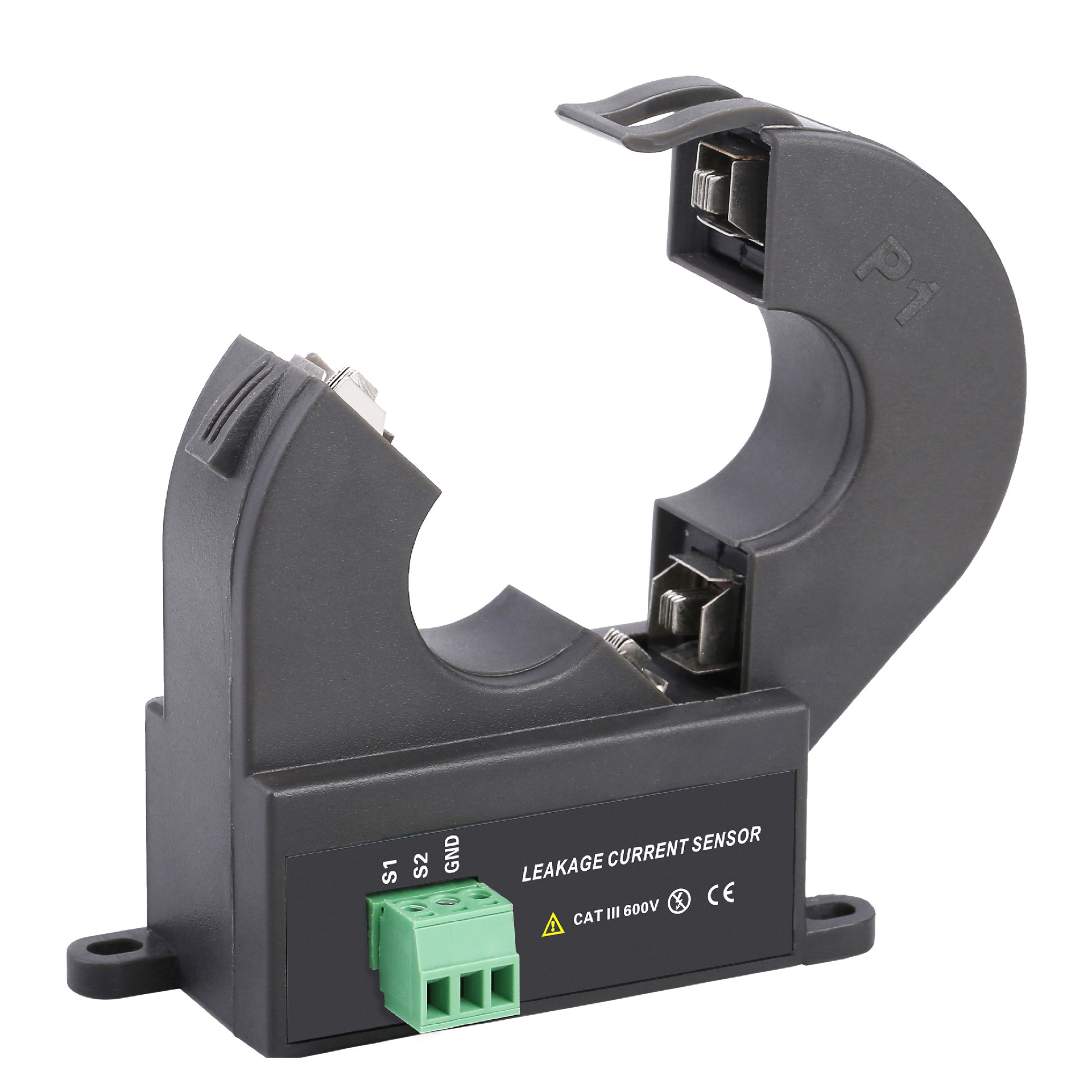

    1. The open-and-close structure does not require power failure and does not need to disconnect the line under test. The installation is fast, safe and reliable, especially suitable for online installation.
    2. It adopts permalloy iron core and double-layer shielding technology, with stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
    3. The firewire and zero wire can be clamped together at the same time to measure the leakage current of cables and electrical equipment.
    4. It can output current signal or voltage signal.
    5. The range, turn ratio, output interface, etc. of the transformer can be customized according to customer requirements.
    6. Safety level: CATⅢ600V.
    7. Working temperature: -15°C~50°C

    Product ModelProduct PictureMeasurement ParametersReference LoadClamp Jaw SizeDimensions

    Range: 0.00mA~20A

    Accuracy level: 0.5

    phase error: ≤2°

    Variable ratio: 800:1

    Operating frequency: 10Hz~100kHz

    0~200mA≤300Ω
    0~2A≤30Ω
    0~20A≤3Ω
    Ф10mm53mm×42mm×28mm

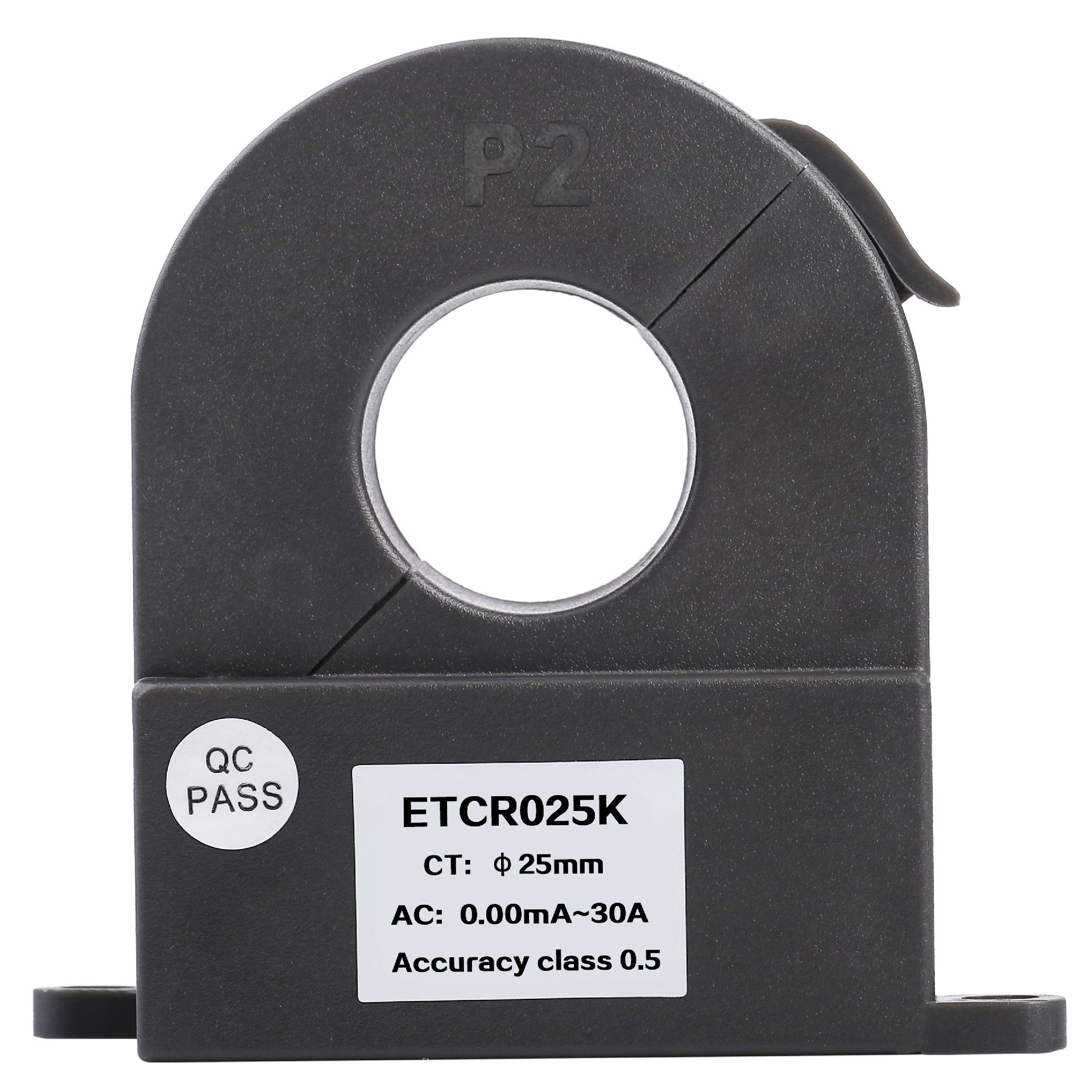

    Range: 0.00mA~30A

    Accuracy level: 0.5

    phase error: ≤2°

    Variable ratio: 800:1

    Operating frequency: 10Hz~100kHz

    0~300mA≤300Ω
    0~3A≤30Ω
    0~30A≤3Ω

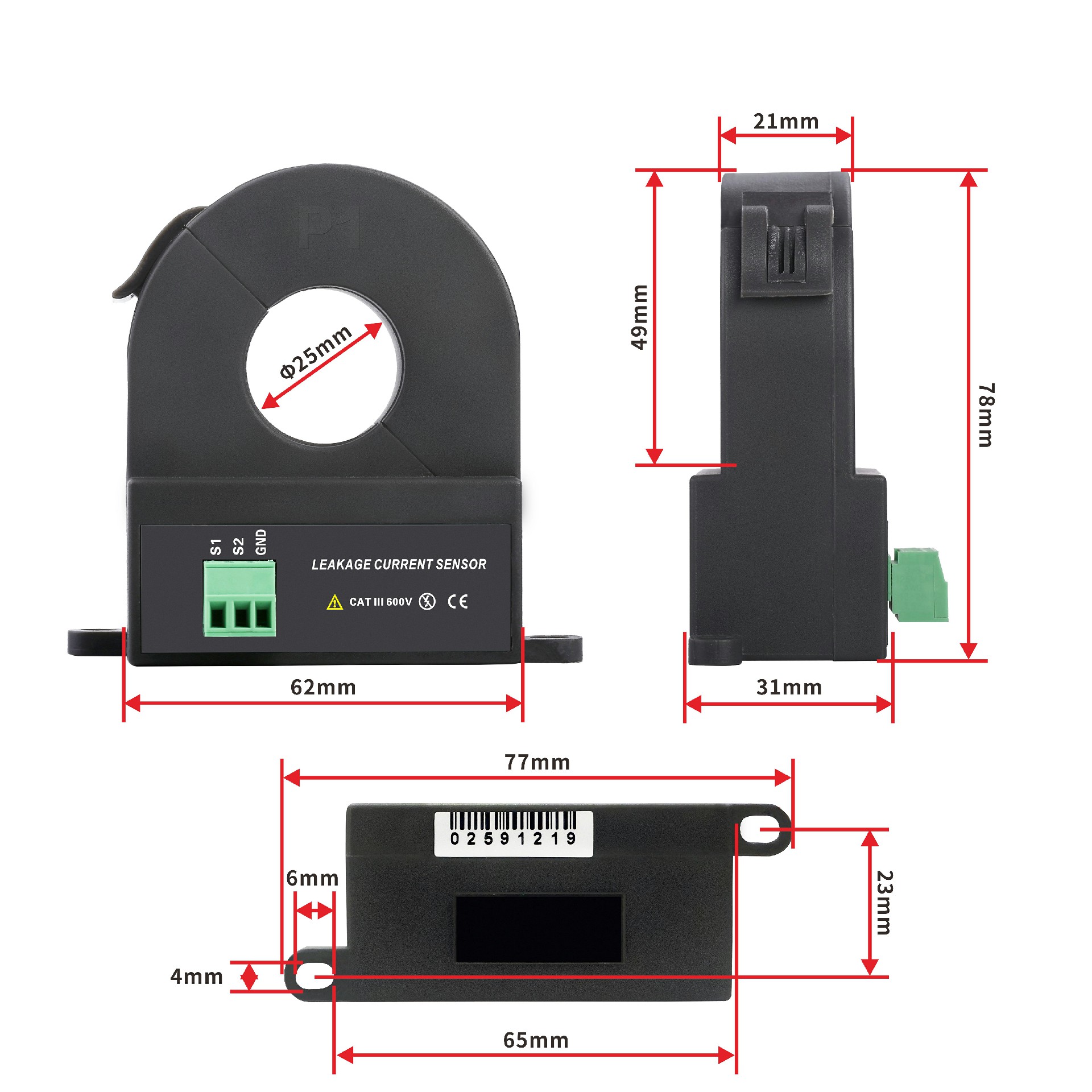

    Ф25mm78mm×82mm×31mm

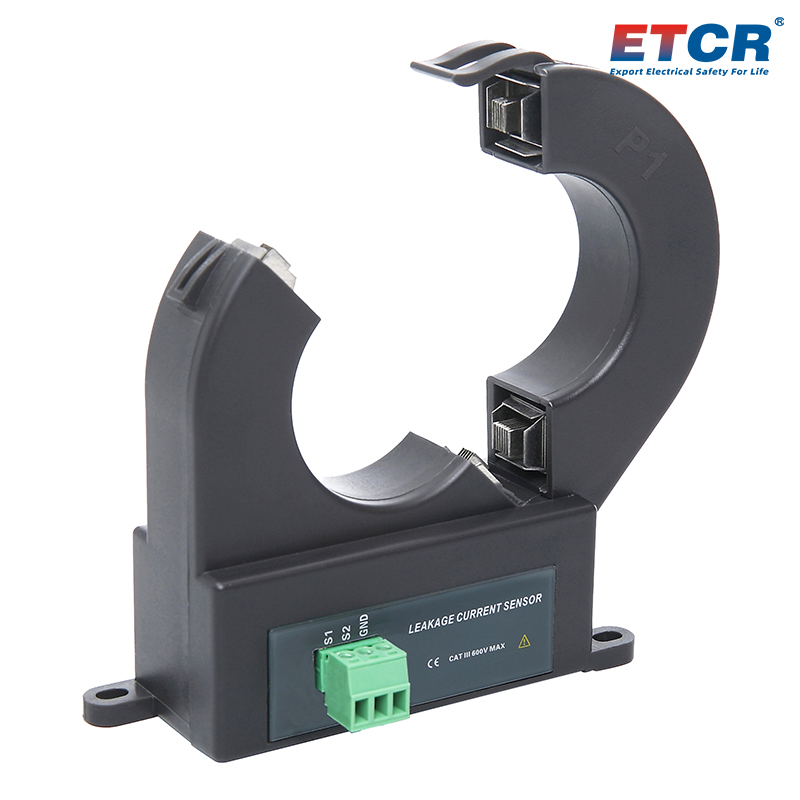

    EM040KETCR040K-3.jpgRange: 0.00mA~60A
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1
    Working frequency: 10Hz~100kHz
    0~600mA≤300Ω
    0~6A≤30Ω
    0~60A≤3Ω
    Ф40mm95mm×98mm×31mm
    EM080KEM080K-3~1.jpgRange: 0.00mA~60A
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1
    Working frequency: 10Hz~100kHz
    0~600mA≤300Ω
    0~6A≤30Ω
    0~60A≤3Ω
    Ф80mm135mm×152mm×40mm


    Model Comparison



    Product Model NameClamp Jaw SizeCurrent RangePrecision LevelOthers
    Split Type Leakage Current Sensor SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA~20A/30A/60A0.5Accept Customization
    Split Type DC Leakage Current Sensor SeriesΦ10mm/Φ25mmDC 0.0mA~100mA3.0±12VDC, Accept Customization
    Microampere Level Split Leakage Current Sensor SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA~10A0.5Accept Customization
    Split Type Leakage Current Sensor Series80×26mm/85×20mmAC 0.00mA~60A1.0Accept Customization
    Flat Port Leakage Current Sensor Series145×40m/200×40mmAC 0.00mA~60A1.0Accept Customization
