Performance characteristics of separate leakage current transformer series products：

1. The open-and-close structure does not require power failure and does not need to disconnect the line under test. The installation is fast, safe and reliable, especially suitable for online installation.
2. It adopts permalloy iron core and double-layer shielding technology, with stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
3. The firewire and zero wire can be clamped together at the same time to measure the leakage current of cables and electrical equipment.

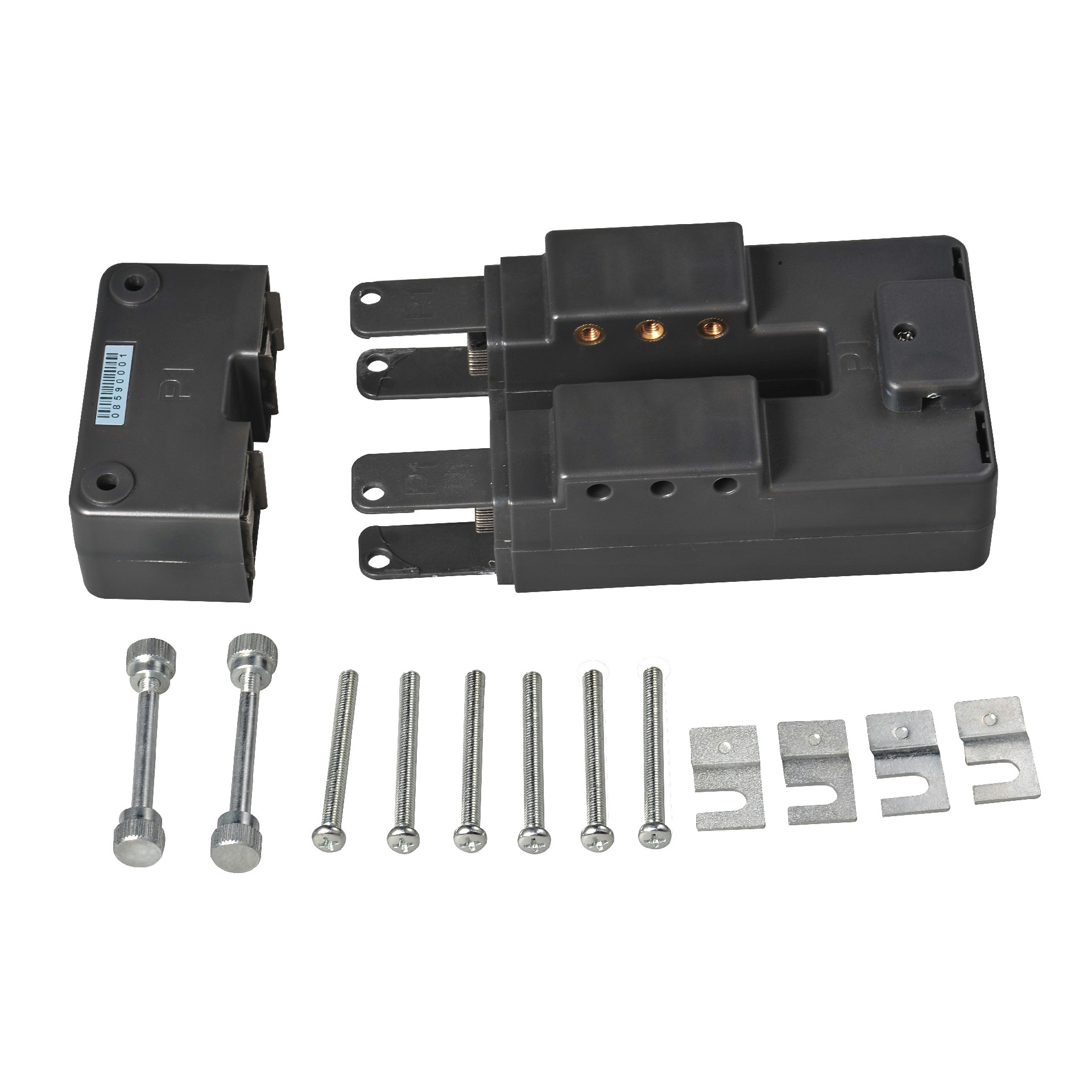

4. Screw fixing method, especially suitable for testing the leakage current of grounding flat steel.
5. Output interface: terminal block (S1, S2 coil tap terminal, GND shielded terminal) or 2-core shielded wire output
6. The range, turn ratio, output interface, etc. of the transformer can be customized according to customer requirements.
7. Safety level: CATⅢ600V.
8. Working temperature: -15°C～50°C

Product Model	Product Picture	Measurement Parameters	Reference Load	Clamp Jaw Size	Dimensions	Weight

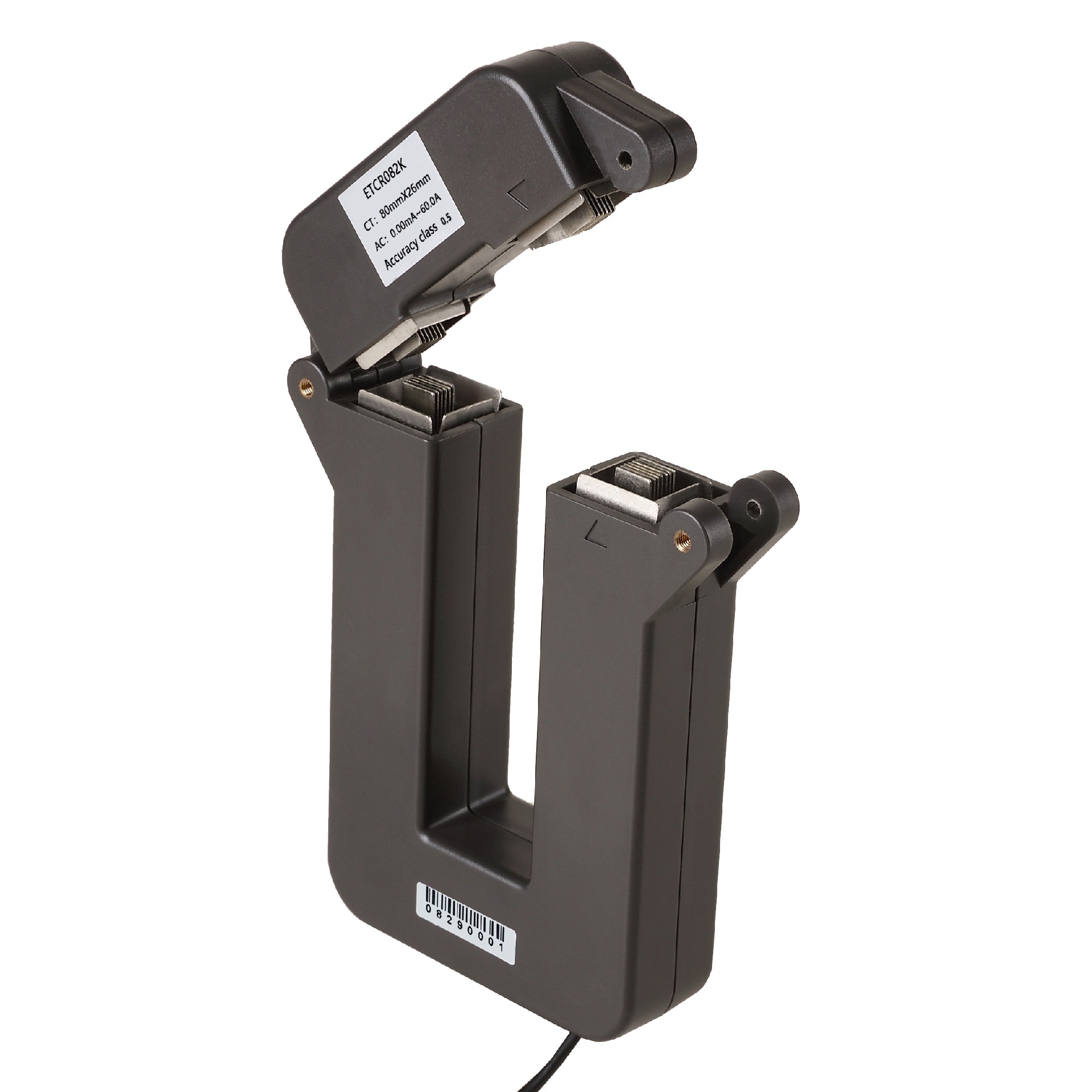

EM082K		Range: 0.00mA～60A Accuracy level: 0.5 Phase error: ≤1° Variable ratio: 1000:1 Working frequency: 10Hz～100kHz	0～600mA≤300Ω 0～6A≤30Ω 0～60A≤3Ω	80mm×26mm	132mm×101mm×25mm	800g

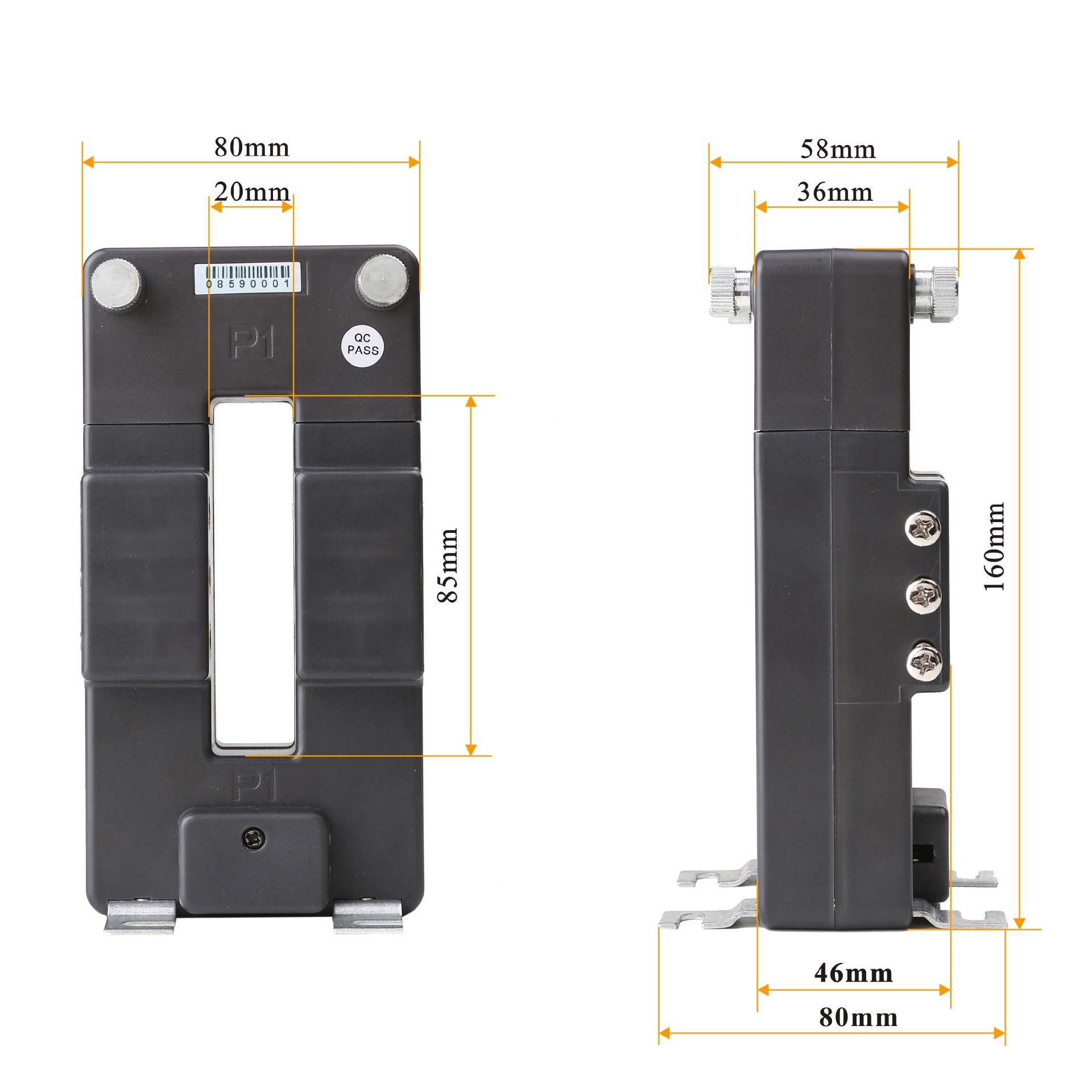

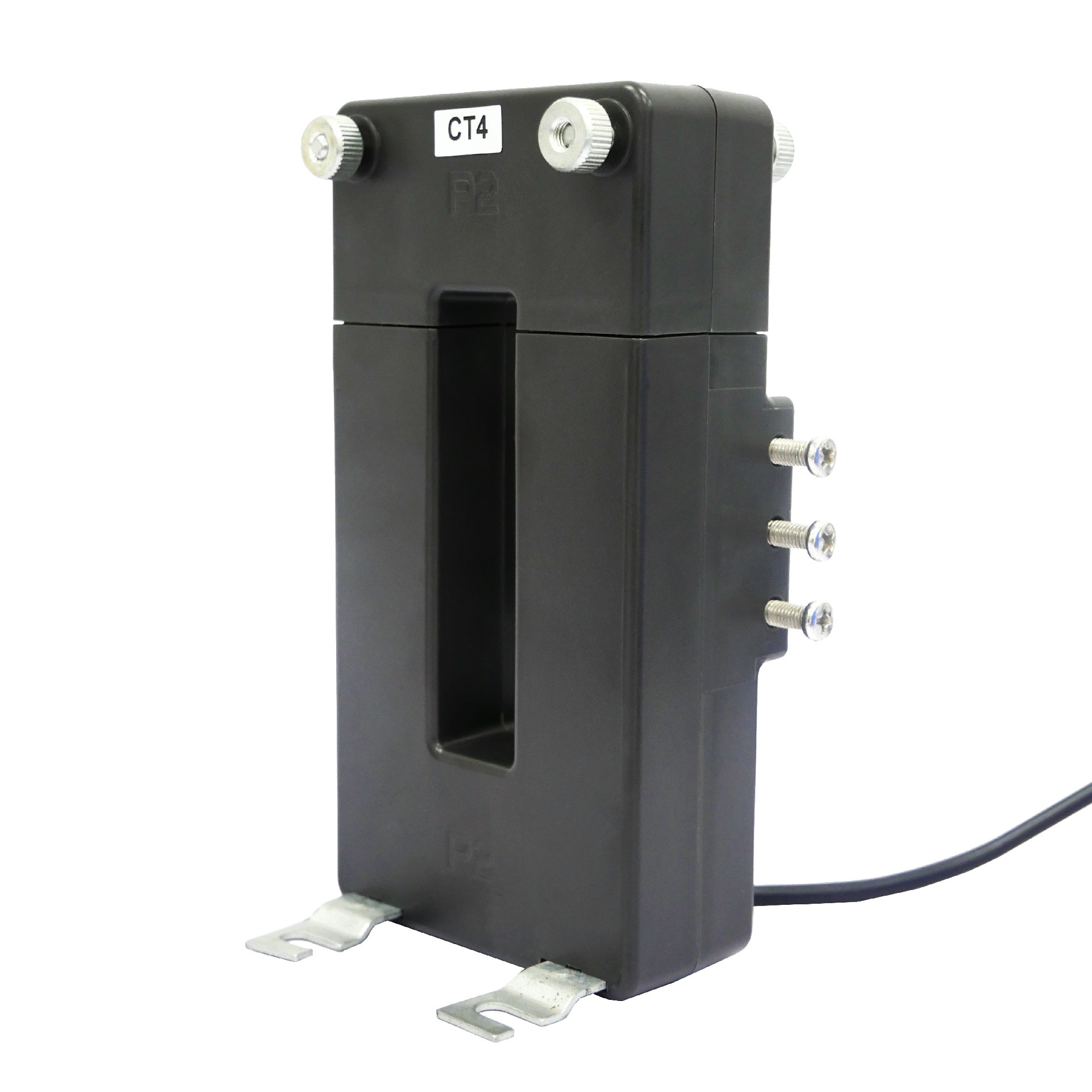

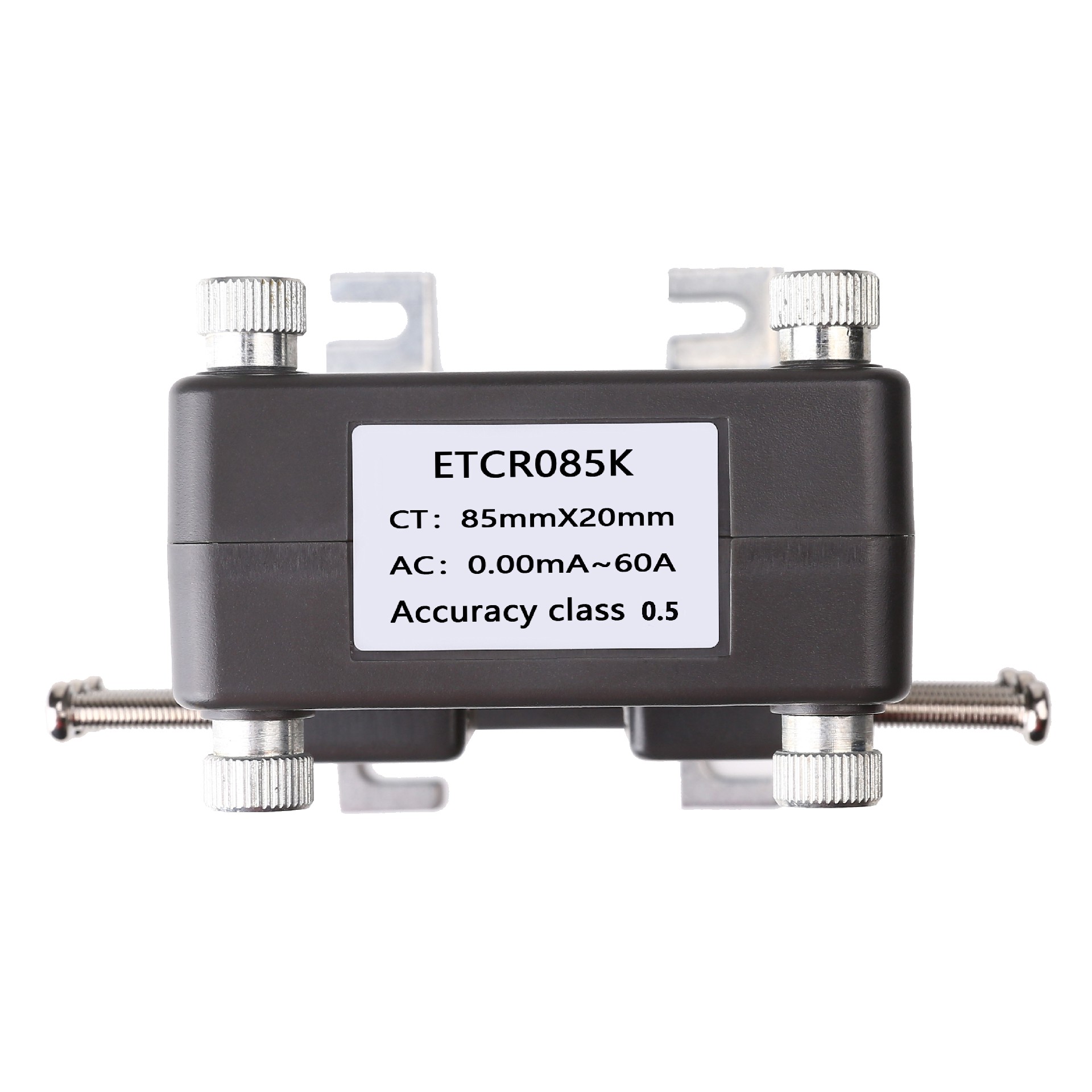

EM085K		Range: 0.00mA～60A Accuracy level: 0.5 Phase error: ≤1° Variable ratio: 1000:1 Working frequency: 10Hz～100kHz	0～600mA≤300Ω 0～6A≤30Ω 0～60A≤3Ω	85mm×20mm	160mm×80mm×58mm	810g
