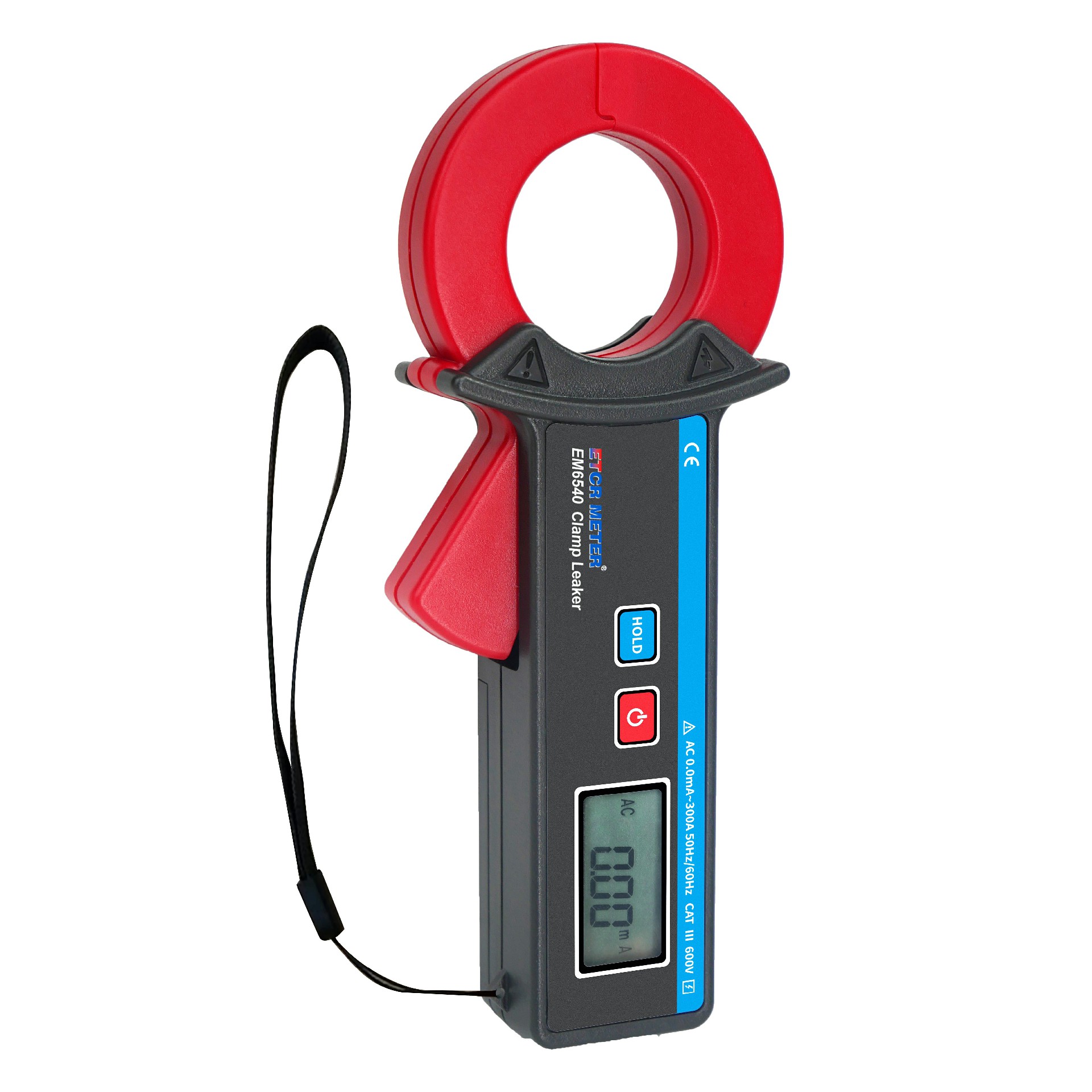

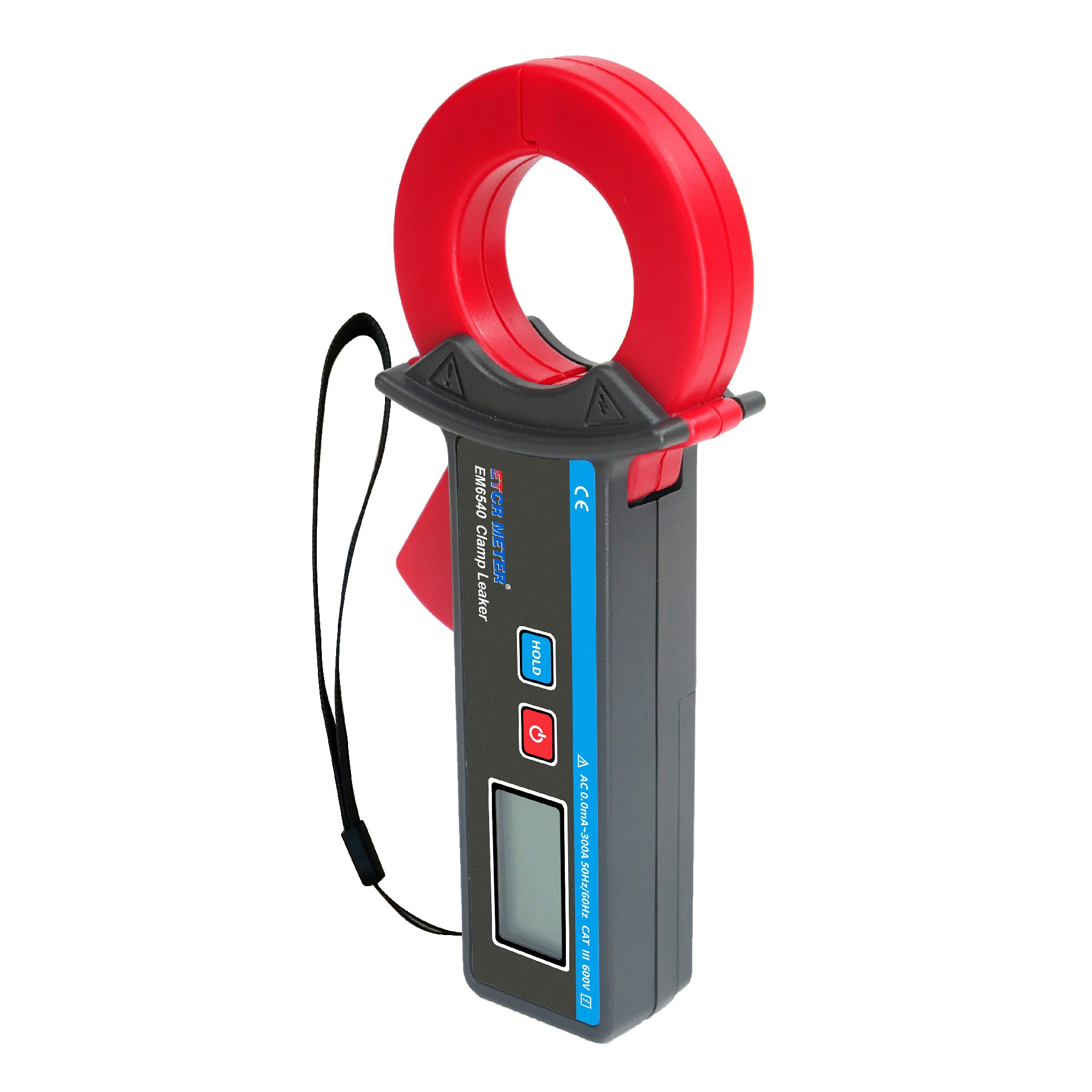

ETCR EM6540 Mini Clamp Leakage Current Meter
  • Product Series : High Precision Clamp Leakage Current Tester

    • Main Features

      Measurement of AC leakage current, AC current
      Current range: AC 0.00mA~300.0A
      Clamp jaw size: Φ40mm
      Memory: data storage 99 groups
      Peak hold function

    Product Introduction


    ETCR EM6540 Mini Clamp Leakage Current Meter, also known as clamp type leakage current tester, high accuracy clamp type current meter, which is used for Measurement of AC leakage current, AC current. The iron core of meter adopts slope film alloy technology and double-layer shielding technology, almost unaffected by the external magnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement all year, which is widely used in fields of electricity, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching unit, industrial and mining enterprise, etc.


    ETCR EM6540 Mini Clamp Leakage Current Meter with peak hold, data hold, data storage and other functions.


    1.The clamp meter has small volume, easy to carry, making it an essential tool for electrical safety testing.
    2.Double-layer shielding technology, high accuracy, strong anti-interference ability and 10uA solution.
    3.Peak hold function.
    4.Memory function.

    EM6540 (9).jpg


    EM6540 (8).jpg

    Technical Parameters

    Power Supply

    DC3V Alkaline dry battery LR03 X 2PCS

    Range

    0.00mA~300.0A

    Resolution

    10uA

    Measurement Accuracy

    ±1.5%±5dgt (23±3, below 70%RH)

    Meter Weight

    0.31kg (include accessories)

    Meter Dimension

    180mmX72mmX32mm

    CT Size

    Φ40mm

    LCD Size

    35mmX21.5mm; display area: 32mmX15mm

    Sampling Rate

    2 times/second

    Frequency

    50Hz, 60Hz Automatic identification

    Data Store

    99 groups , flash display “FULL” symbol indicate stored full

    Peak Hold

    Peak capture and hold function, long press HOLD key display peak value

    Data Hold

    Data hold function: “DH” symbol display

    Overflow Display

    Exceed measure range overflow function: “OL ” symbol display

    Automatic Shut Down

    5 Minutes after power on, will shut down automatically without any operation to reduce the power consumption.

    Battery Voltage

    When battery voltage lower than 2.8V, will display low battery voltage symbol ””, remind to replace battery

    Working Current

    5mA

    Line Voltage

    Below AC 600V circuit measurement

    Shift

    Automatically

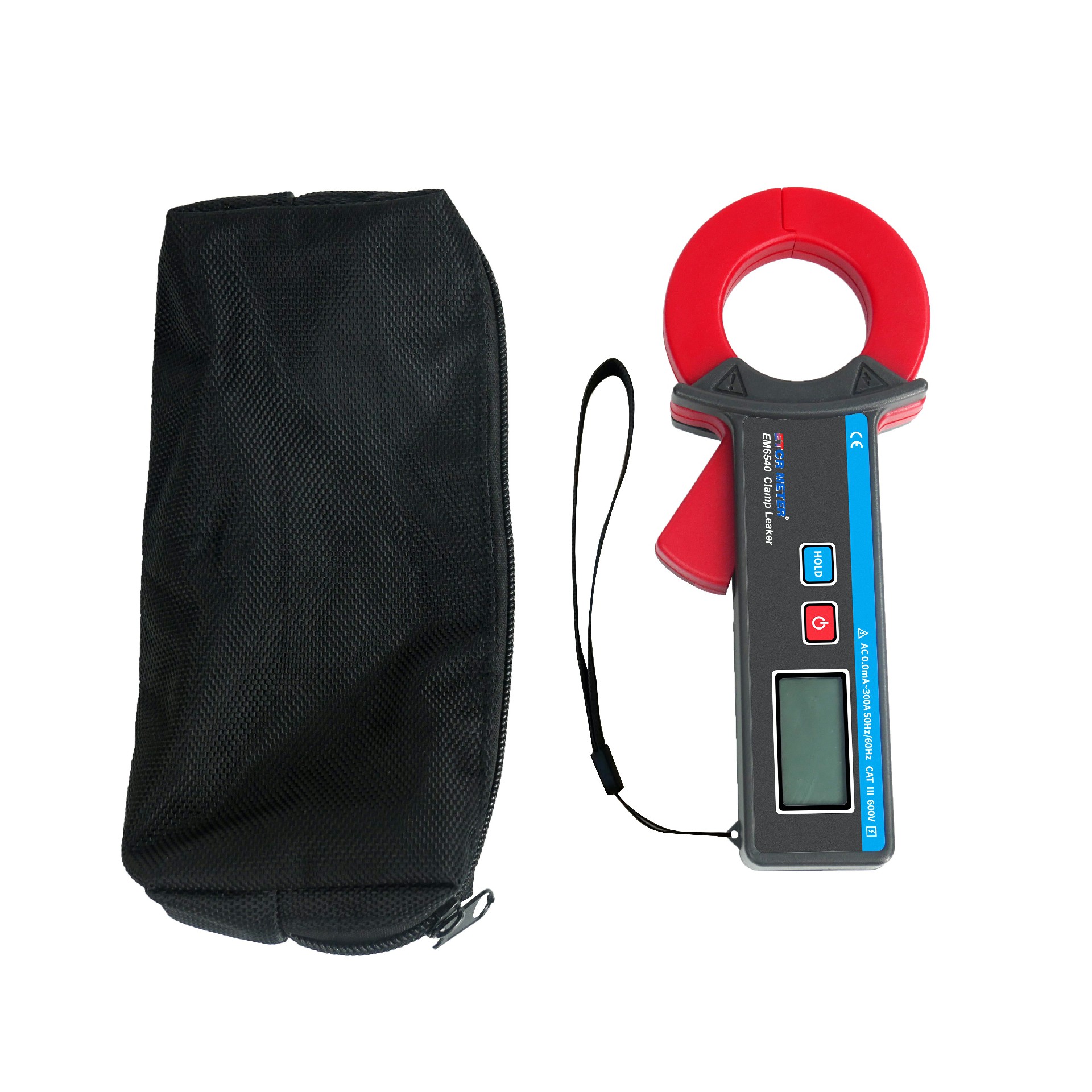

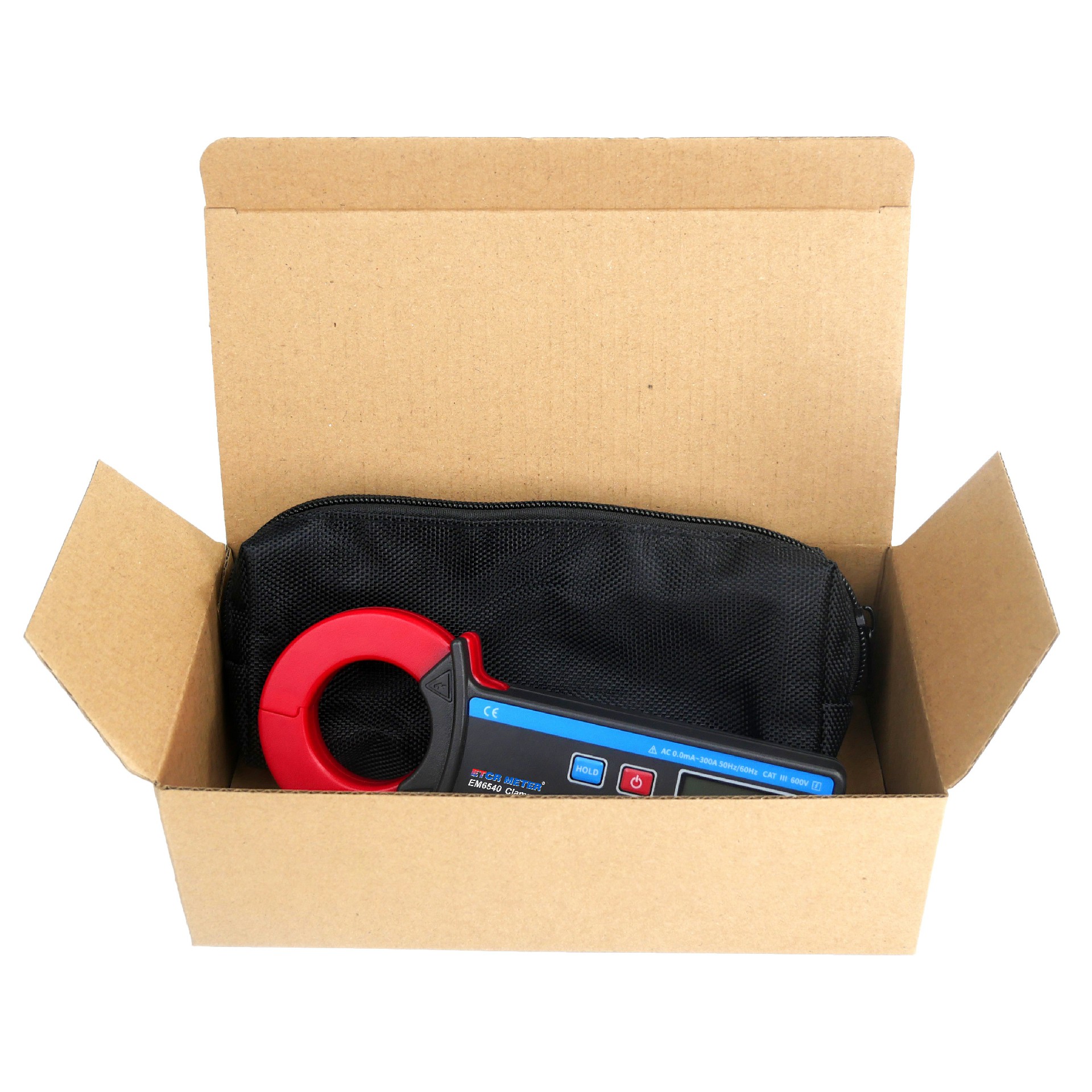

    Accessories

    Meter: 1PCS; Tool bag: 1PCS; LR03 Alkaline battery : 2PCS


    Model Comparison








    Product PictureProduct Model NameClamp Jaw SizeCurrent RangeCommunication MethodOthers
    EM6300 (1).jpgETCR EM6300 High Precision Clamp Leakage Current Meter25mm×30 mmAC 0.000mA~60.0AUSB
    EM6540 (1)~1.jpgETCR EM6540 Mini Clamp Leakage Current MeterΦ40mmAC 0.00mA~300A--

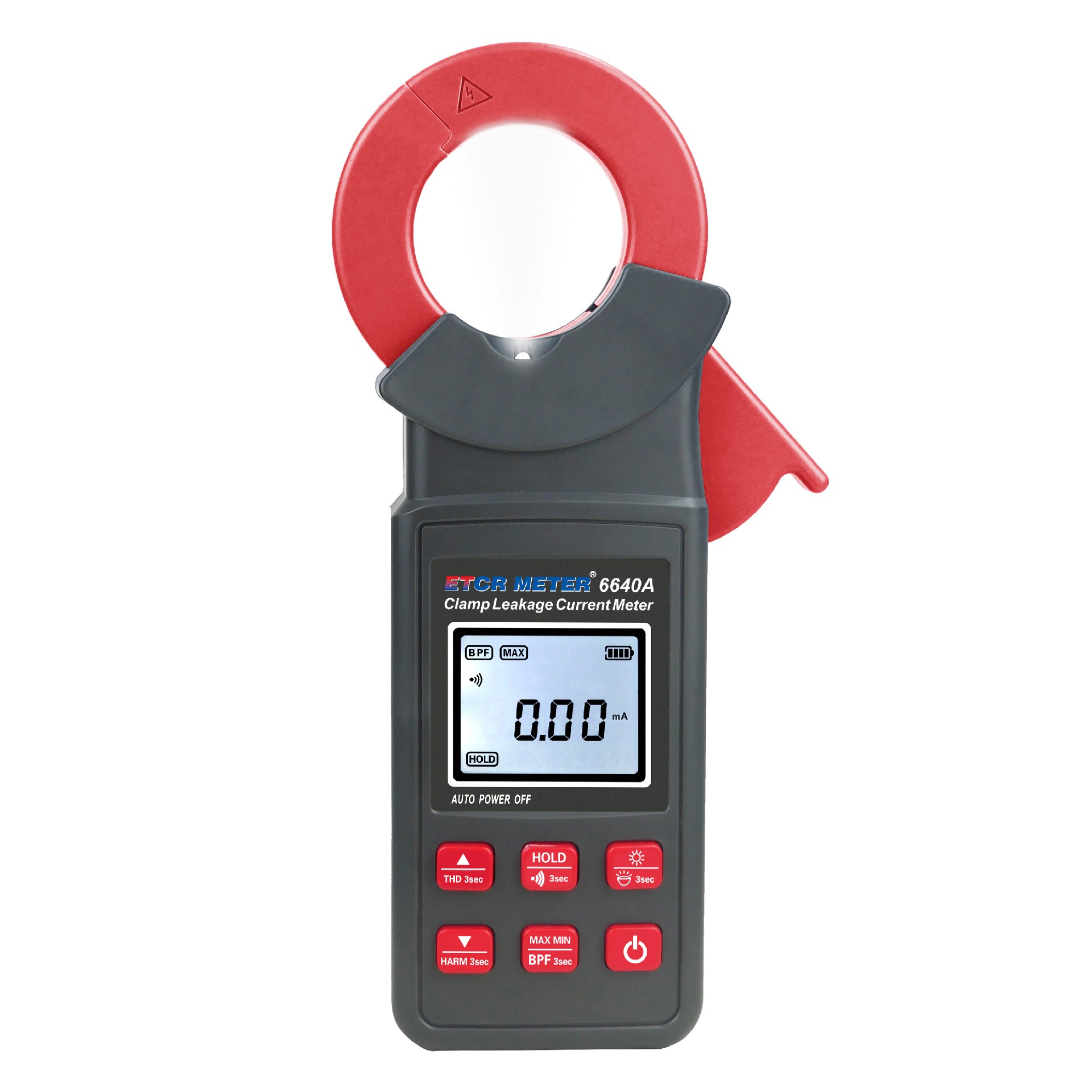

    EM6640A (1).jpgETCR EM6640A

    Clamp Leakage Current Meter

    Φ40mmAC 0.00mA~300ABluetoothTrue vitrual value
    Harmonics
    Flashlight

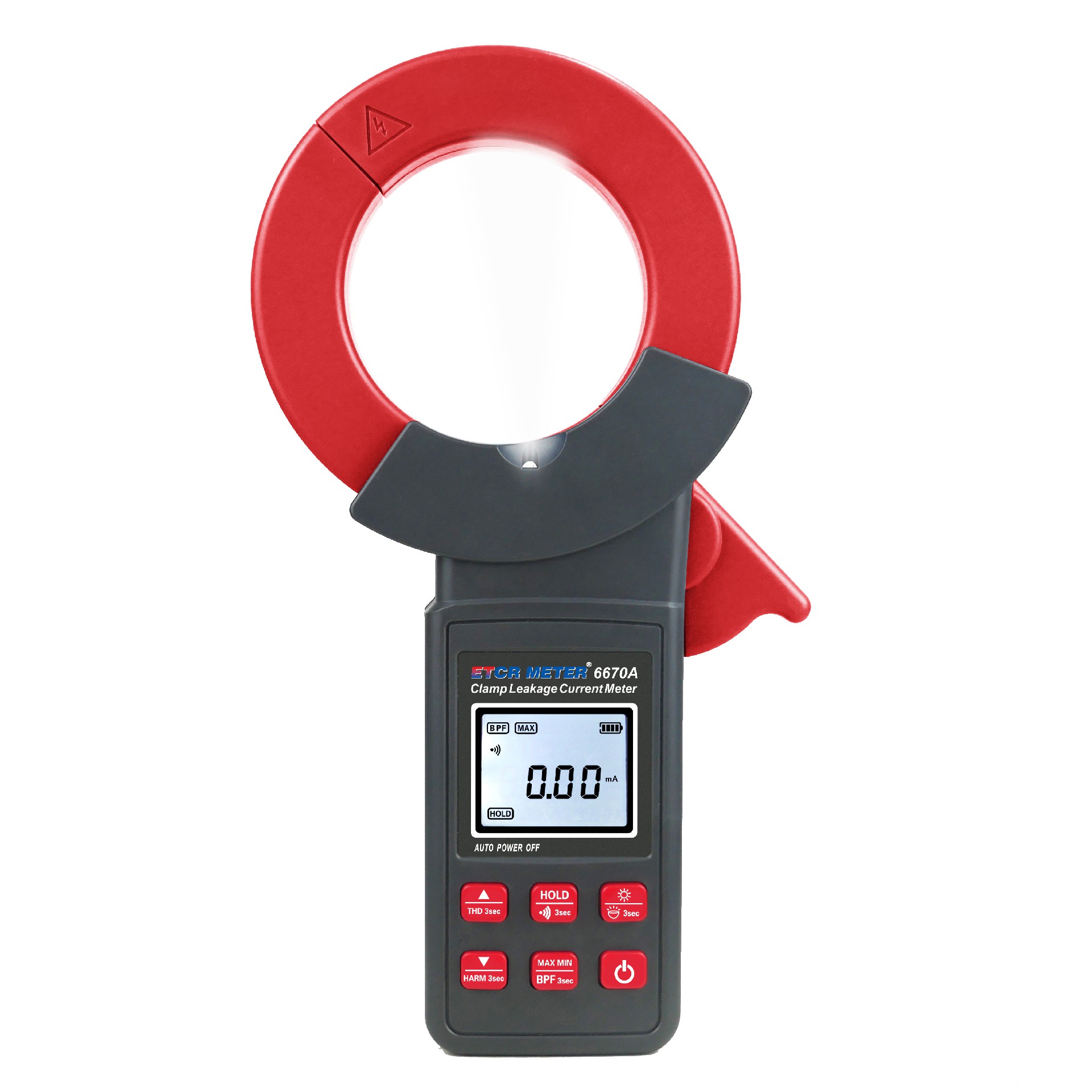

    EM6670A (1).jpgETCR EM6670A High Precision Clamp Leakage Current MeterΦ70mmAC 0.00mA~1200ABluetoothTrue vitrual value
    Harmonics
    Flashlight

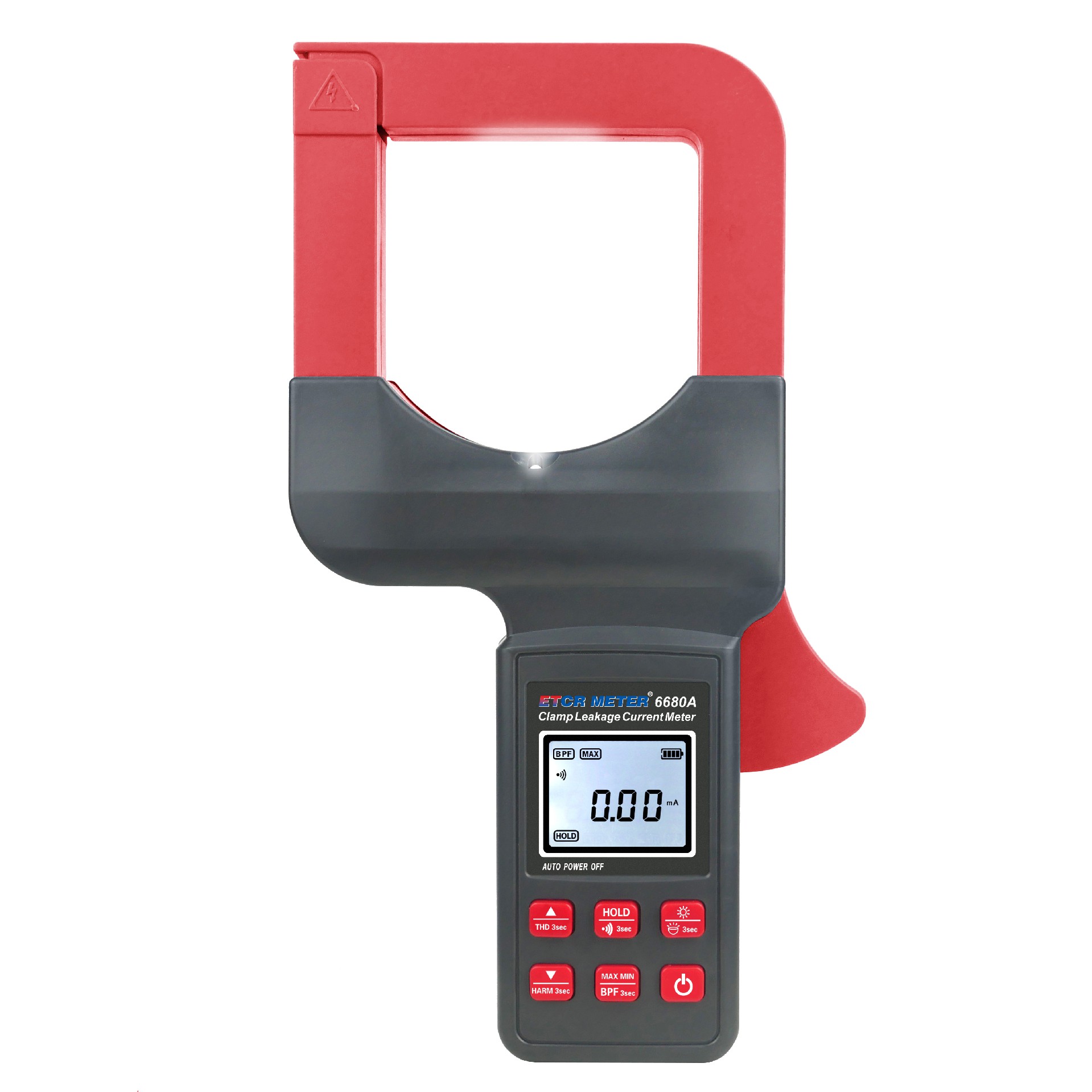

    EM6680A (1).jpgETCR EM6680A Large Caliber Clamp Leakage Current Meter80mm×80mmAC 0.00mA~2000ABluetoothTrue vitrual value
    Harmonics
    Flashlight
    ETCR7100-1~3.jpgETCR EM7100 Super Large Caliber Clamp Leakage Current Meter108mm×148mmAC 0.0mA~3200AUSB

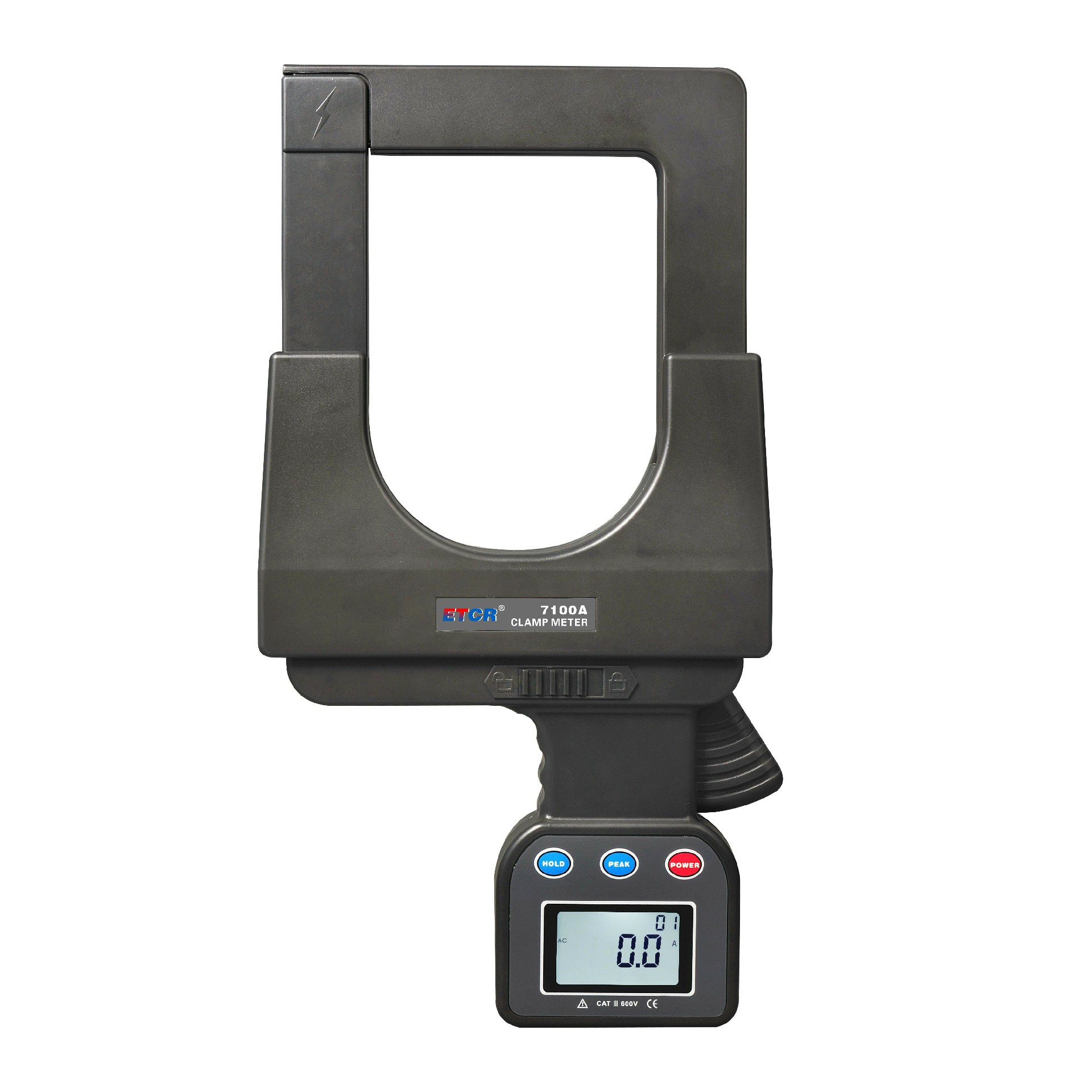

    ETCR7100A-1~3.jpgETCR EM7100A Super Large Caliber Clamp Current Meter108mm×148mmAC 0.0A~4000AUSB


    Product Video

    Related Products
    ETCR EM6640A Clamp Leakage Current Meter
    ETCR EM6670A High Precision Clamp Leakage Current Meter
    ETCR EM6680A Large Caliber Clamp Leakage Current Meter
    ETCR EM6540 Mini Clamp Leakage Current Meter

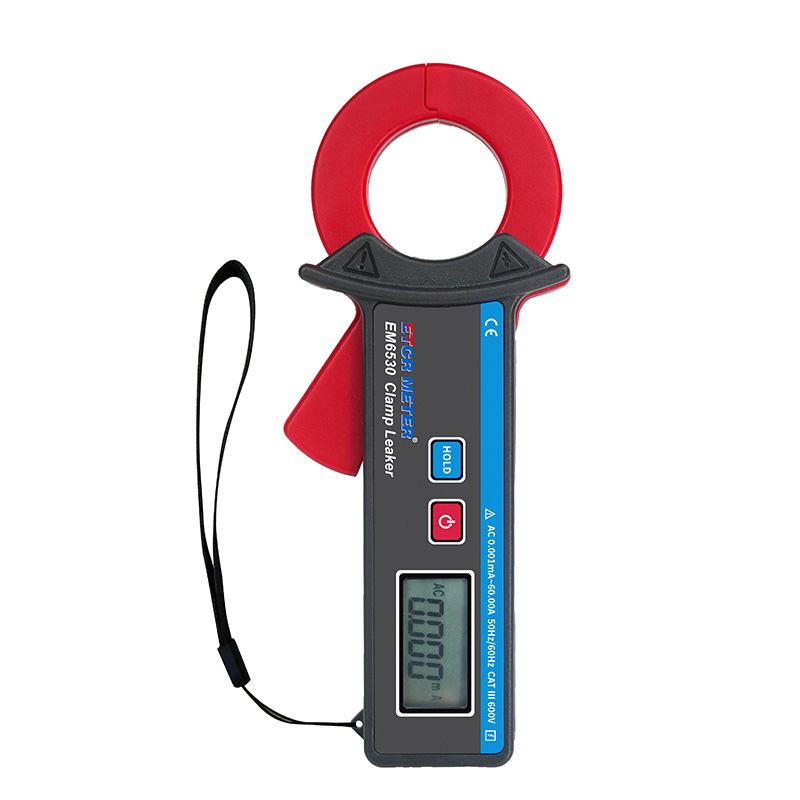

    ETCR EM6530 Mini Clamp Leakage Current Meter
