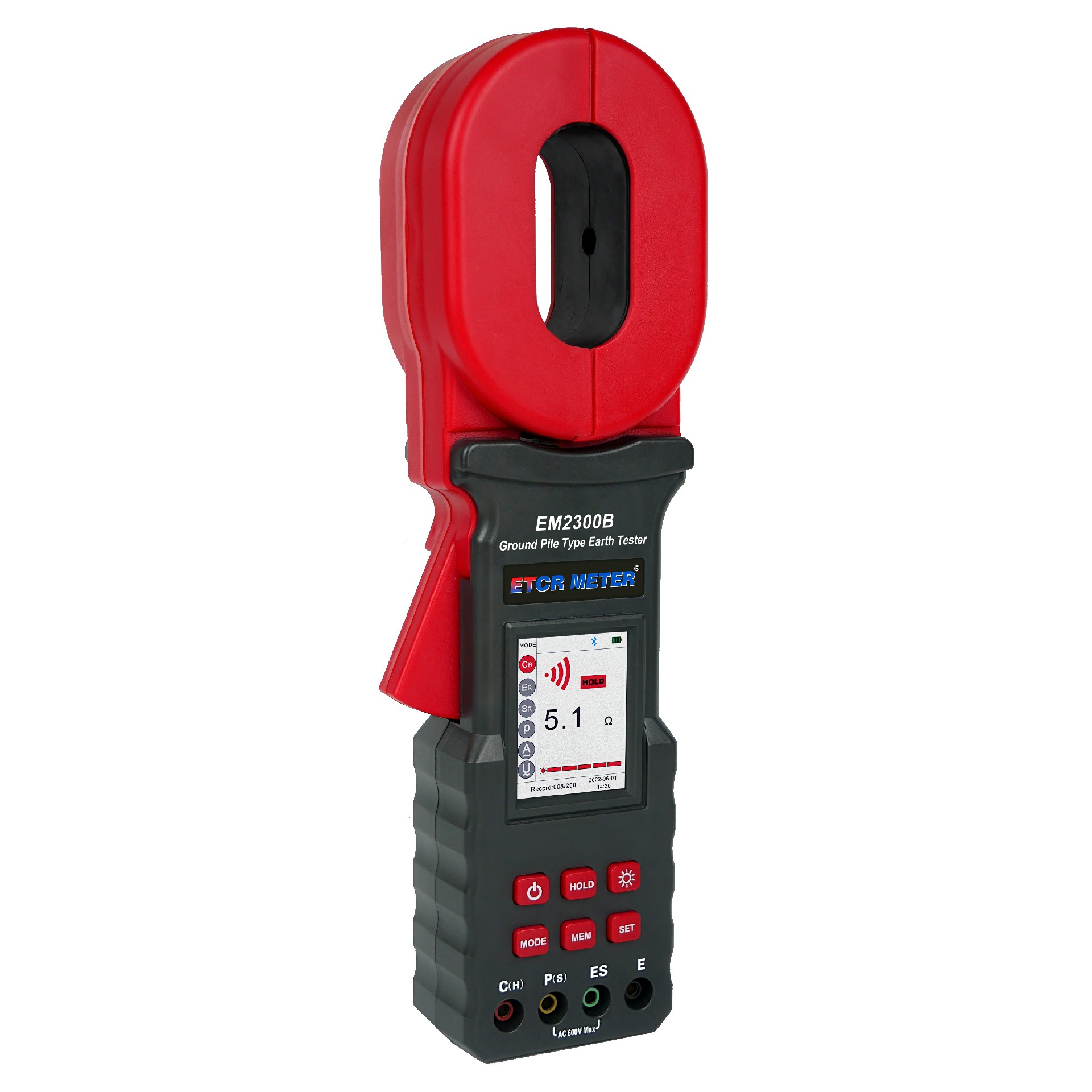

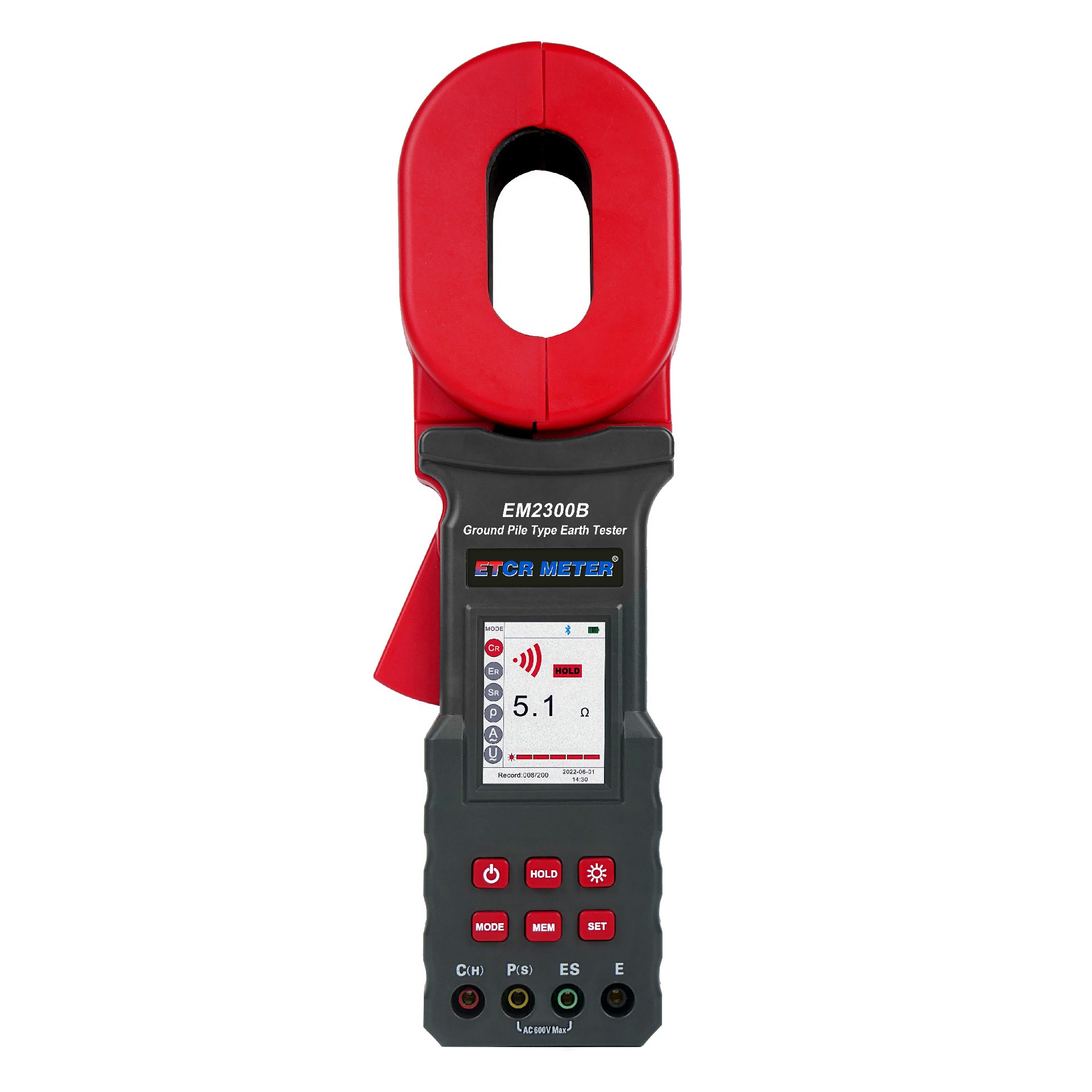

ETCR EM2300B Ground Pile Clamp Earth Resistance Tester, also known as ground pile clamp tester, which is used for measurement of the earth resistance,soil resistivity, earth current,earth voltage. The tester has various measurement methods such as clamp tester method, two-wire method, three-wire method, four-wire method, and selection method. The tester introduces FFT (fast Fourier transform) technology and AFC (automatic frequency control) technology. It has unique anti-interference ability and environmental adaptability. The consistency of repeated tests is strong to ensure the high precision, high stability and high reliability of the measurement. The ground pile clamp earth resistance tester adopts large-caliber current clamp design, which can meet the test needs of various occasions, can measure the earth resistance value of large-size grounding down lead, can measure the earth resistance value of various complex grounding structures such as single-point and mesh grounding, and there is no need to disconnect any parallel connection of grounding electrode when measuring parallel connection of grounding systems, which greatly improves the convenience of measurement and provides a perfect solution for grounding performance testing.

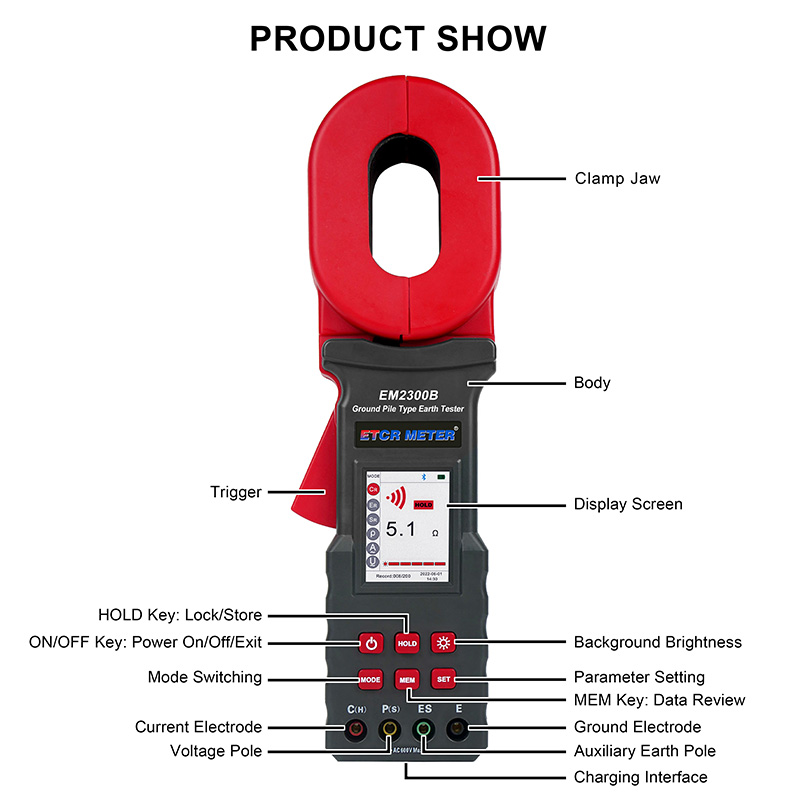

1.The tester has various measurement methods such as clamp tester method, two-wire method, three-wire method, four-wire method, and selection method to measure the earth resistance.

2.Equipped with 2.5-inch color LCD screen

3.The tester has a storage function that automatically stores 500 sets of test results containing date and time.

4.Alarm function: Alarm threshold can be set

5.Memory Function

6.Rechargeable lithium battery

7.Bluetooth Communication

1.Measurement Range & Accuracy(Basic Error Under Benchmark Condition)

2.Technical Specification

Power Supply	DC 3.7V 2600mAh rechargeable lithium battery, the battery is fully charged about 4.2V
Display Mode	2.5 inch color LCD screen
Earth Resistance Measurement Method	Clamp tester method, two-wire method, three-wire method, four-wire method, selection method
Earth Resistance Range	0.00Ω~200kΩ
Soil Resistivity Range	0.00Ωm~9999kΩm
Earth Current Range	0.000mA~45A
Earth Voltage Range	0.0V~600.0V
Test Frequency	128Hz/111Hz/105Hz/94Hz(AFC Automatic frequency control)
Short Circuit Test Current	AC 10mA max
Open Circuit Test Voltage	AC 14V max
Electrode Spacing Range	1m~100m
Clamp Jaw Size	65mm×32mm
Tester Size	LXWXH: 307mm×98mm×56mm
Tester weight	Clamp tester :about 1112g(including battery); Total weight :about 5.1kg(including accessories)

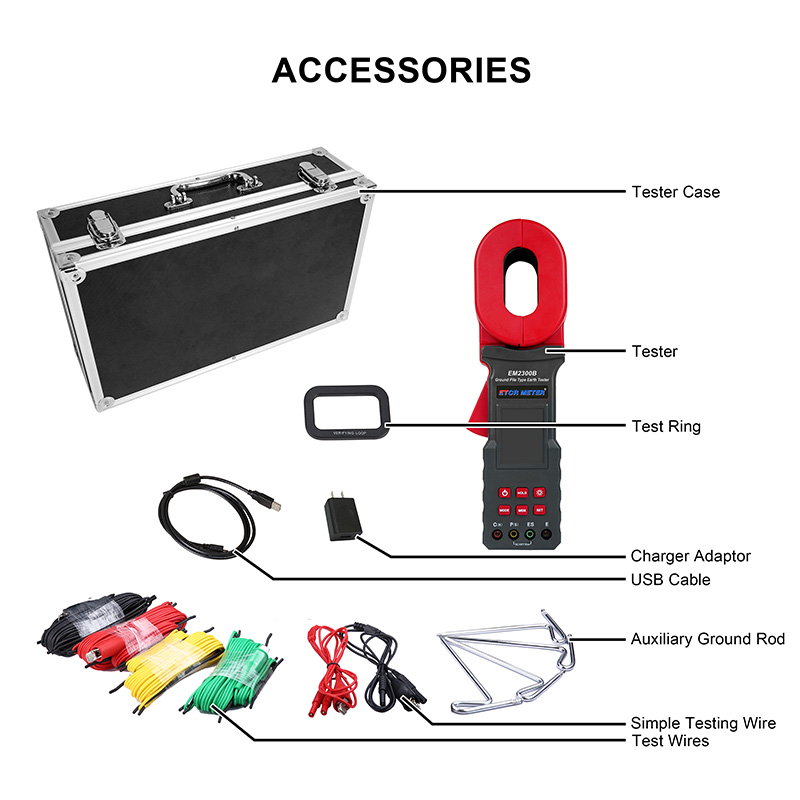

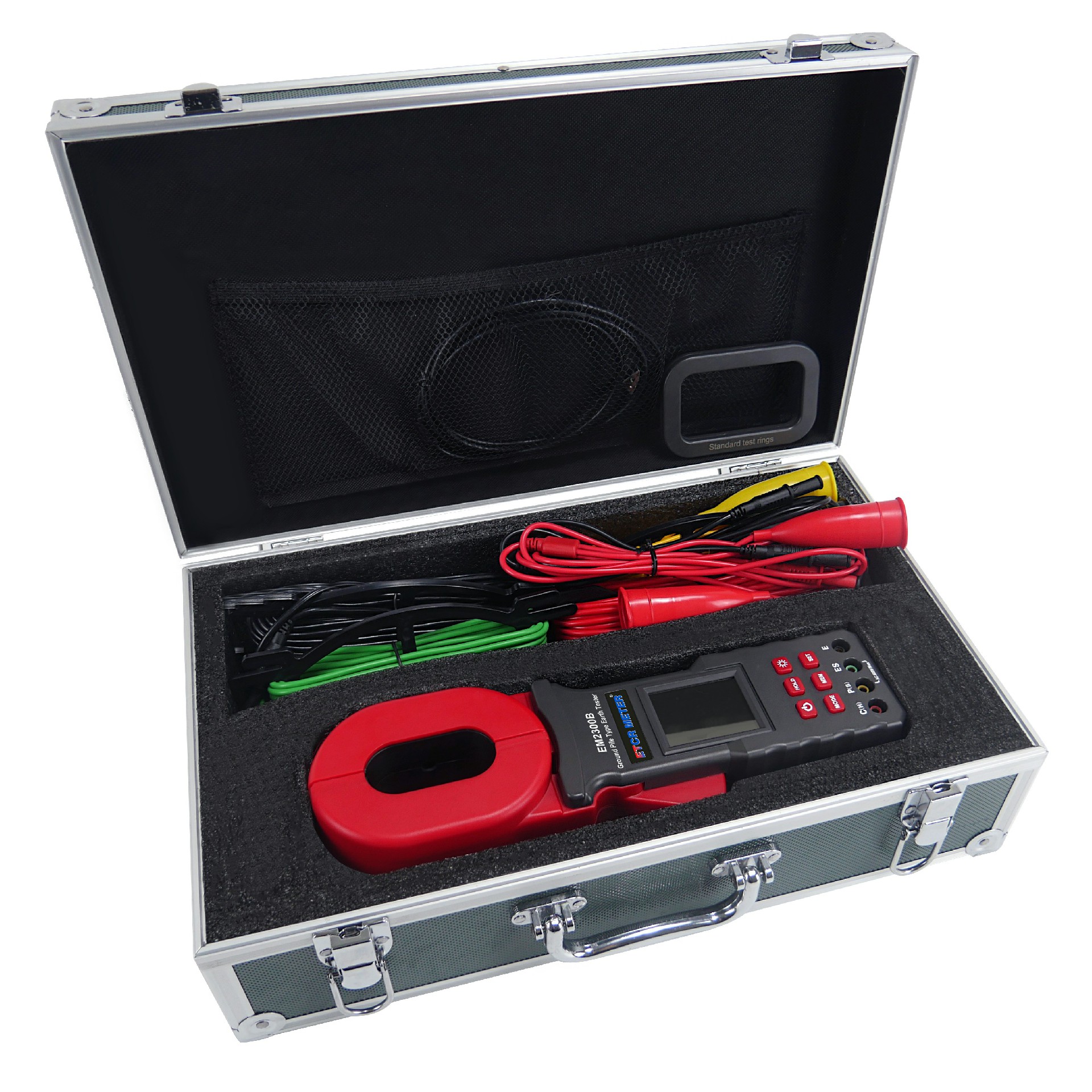

Test Line	4 pieces: red 20m, black 20m, yellow 10m, green 10m each 1 piece
Simple Testing Line	2 pieces: red 1.6m, black 1.6m each 1 piece
Auxiliary Earth Rod	4 pieces: φ9mm×230mm（935g）
Measurement Time	Earth resistance: about 15 seconds/time; earth current: about 2 times/second; earth voltage: about 2 times/second
Line Voltage	Measurement below AC 600V
Data Hold	The ”HOLD" symbol indicates when holding data
Memory	500 groups, ”HOLD" symbol storage indication
Data Access	The ”READ" symbol indicates when viewing data
Overflow Display	When the overrange overflows, the “OL” symbol indicates
Working Current	Measurement: 600mA Max (maximum backlight)
Alarm Function	When the measured value exceeds the alarm set value, the “Du-Du-Du-"  Beep alarm prompt
Alarm Threshold Setting Range	Resistance:0Ω～2000Ω; Current:0mA～60A; Voltage:V~600V
Battery Voltage	When the battery voltage drops to about DC 3.5V±0.1V,the low battery voltage symbol “” is displayed to remind the meter that it needs to be charged.
Automatic Shutdown	Automatically shut down after 5 minutes of power-on
Bluetooth Communication	With Bluetooth Communication , supports Android system.
Overload Protection	Measure earth resistance:  C(H)-E, P(S)-ES   AC 280V/3 seconds between each port
Withstand Voltage	AC 3700V/rms(Between the circuit and the housing)
Working Temperature & Humidity	-10℃~40℃; below 80%rh
