Performance characteristics of small-caliber clamp current transformer series products：

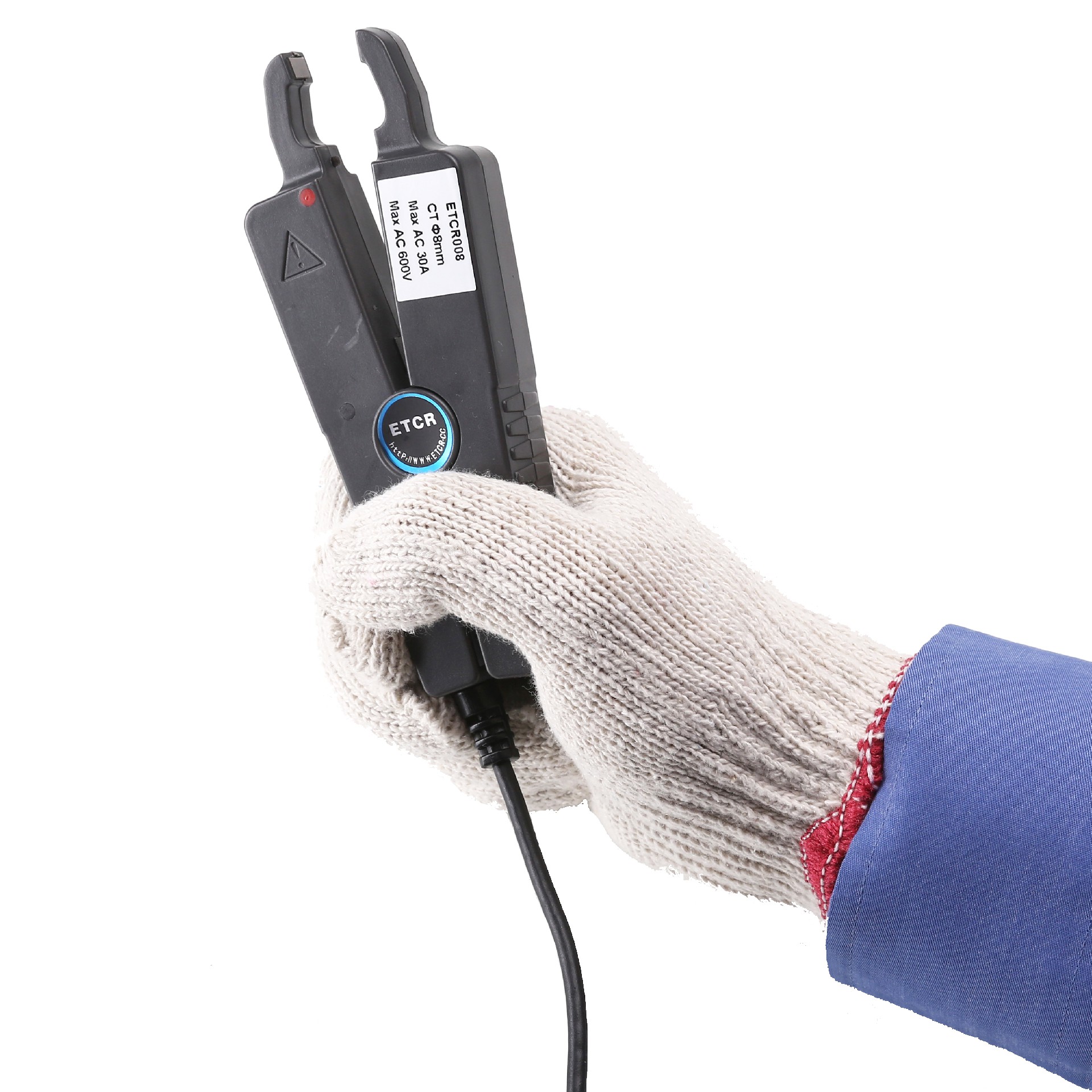

1.Clamp-shaped structure, no power failure is required, no line under test is disconnected, and it is easy to carry, especially suitable for on-site online testing.
2.Using permalloy iron core, it has stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
3.The small-caliber structure is suitable for small spaces or places with dense wiring.
4.Can output current signal or voltage signal.
5.The range, variable ratio, output interface, etc. of the transformer can be customized according to customer requirements.
6.Output interface: Terminal interface: BNC plug/4.0mm dual banana plug/3.5mm audio plug/bare wire tap (optional), cable length 1.5m.
7.Safety level: CATⅢ600V.
8.Working temperature: -15°C～50°C

Product Model	Product Picture	Measurement Parameters	Reference Load	Clamp Jaw Size	Dimensions	Weight

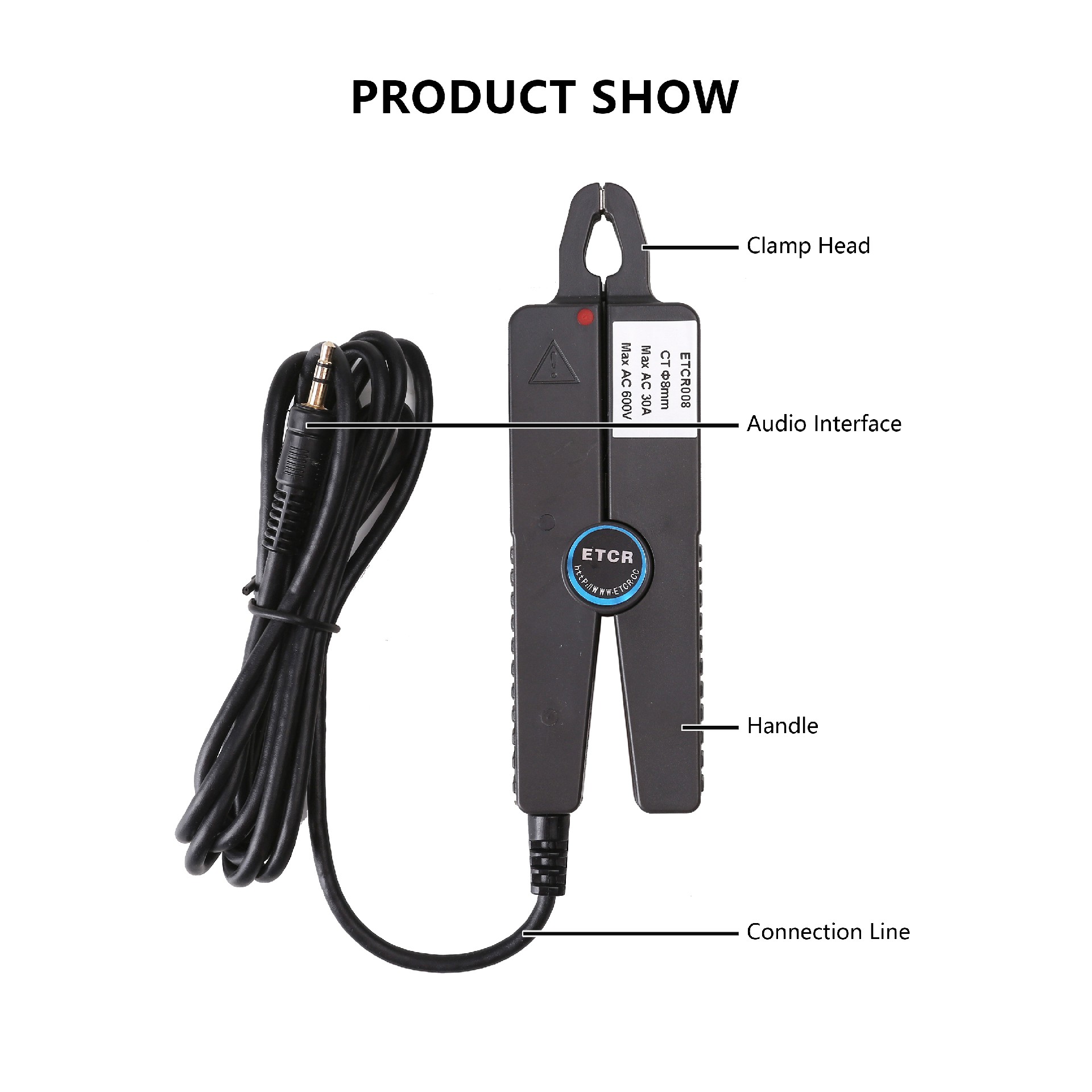

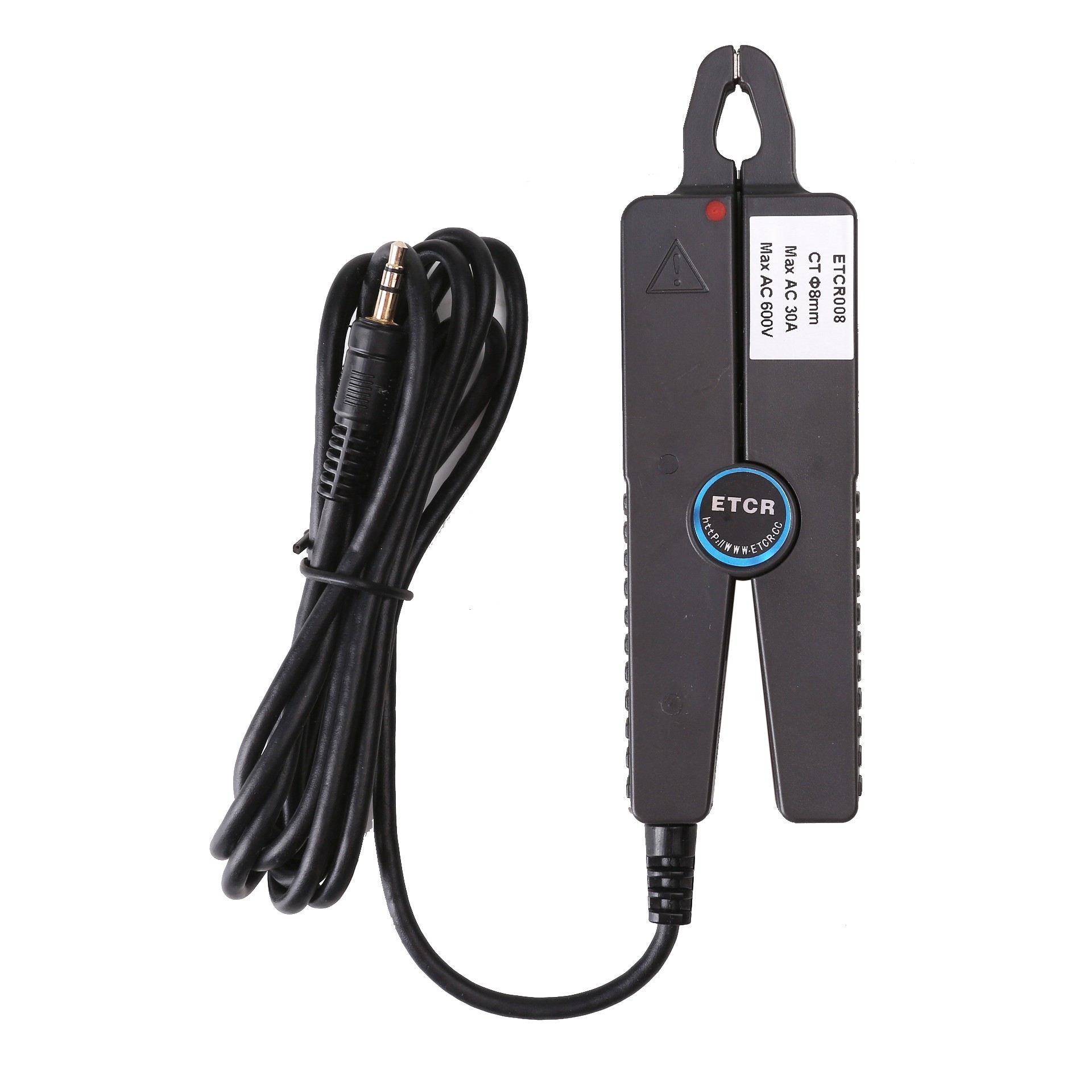

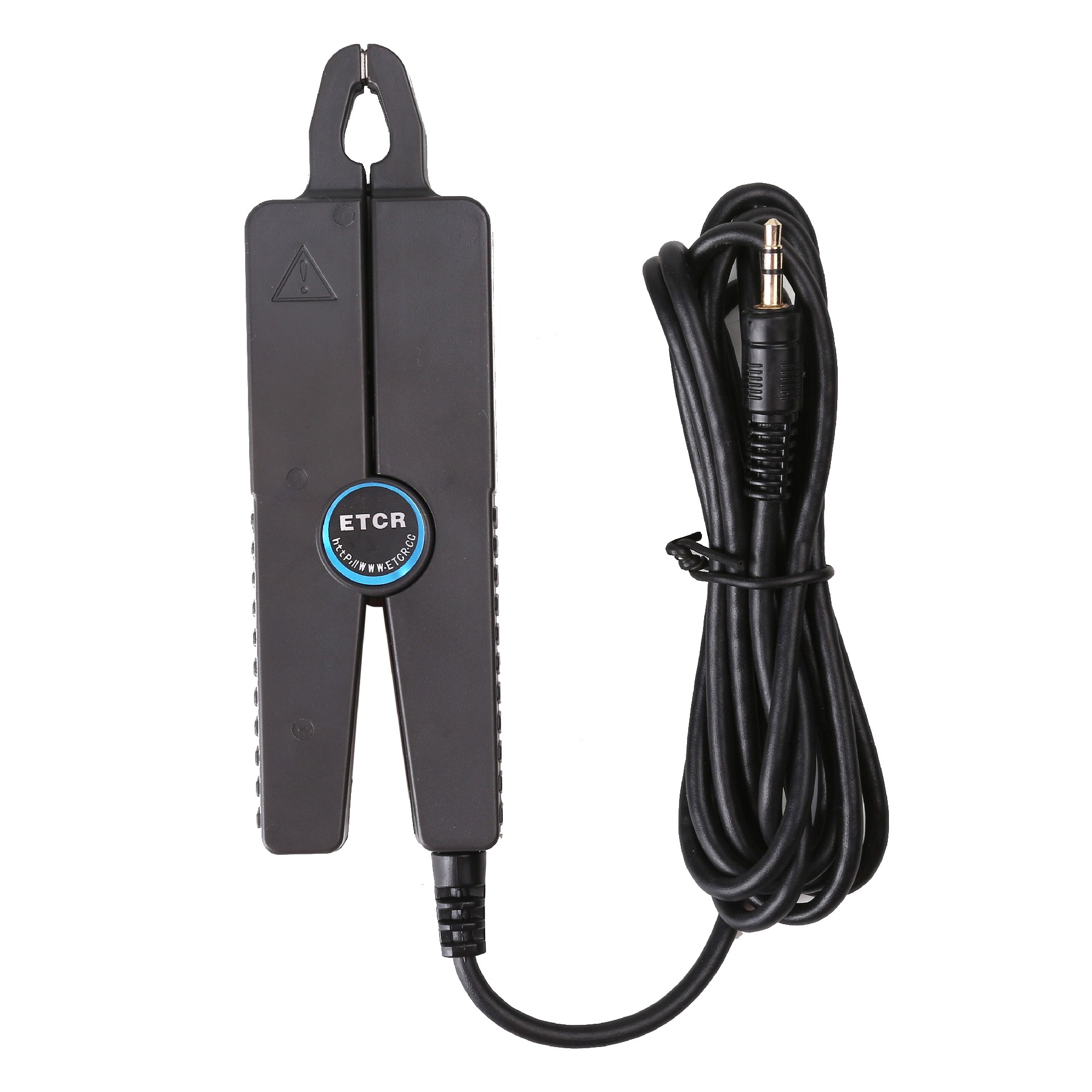

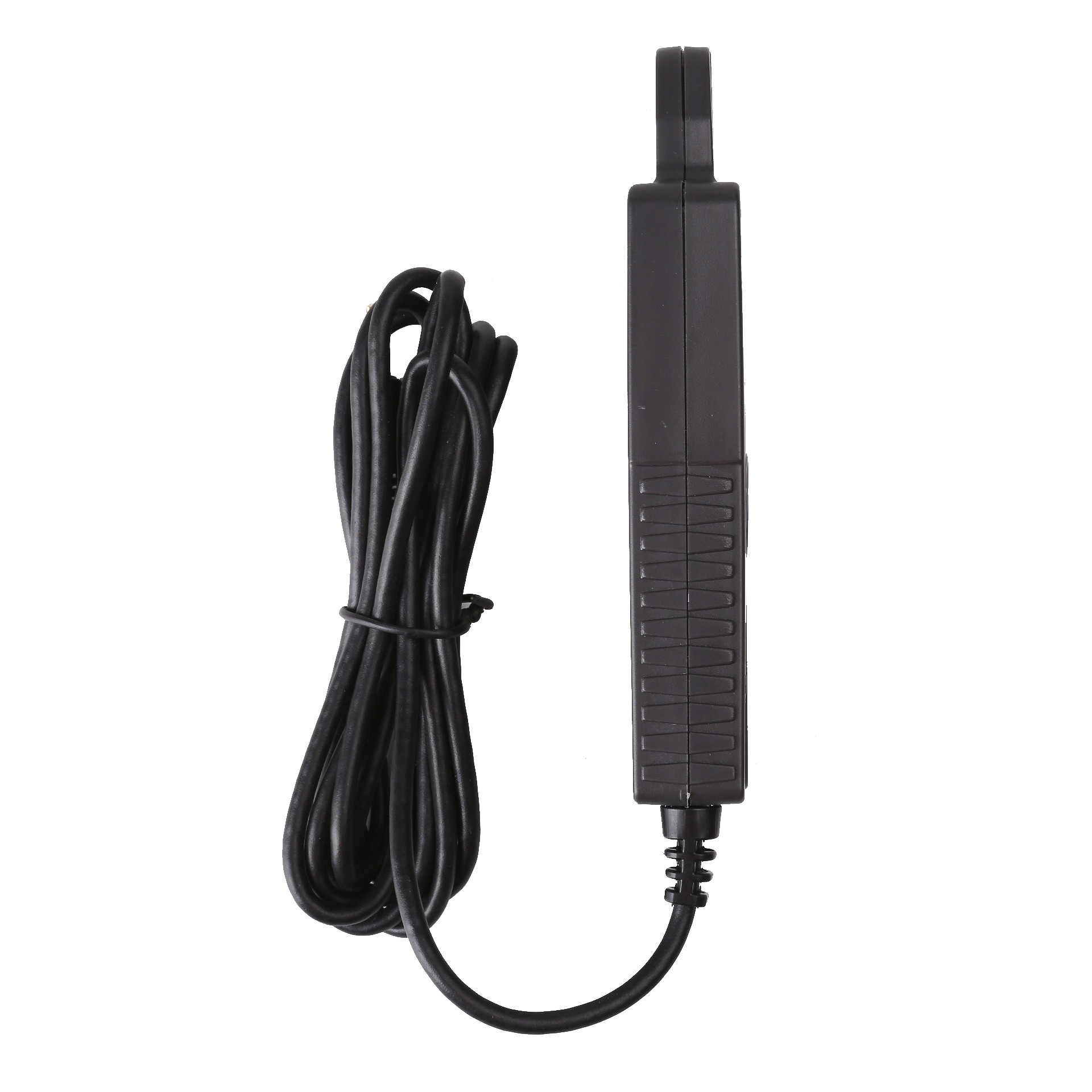

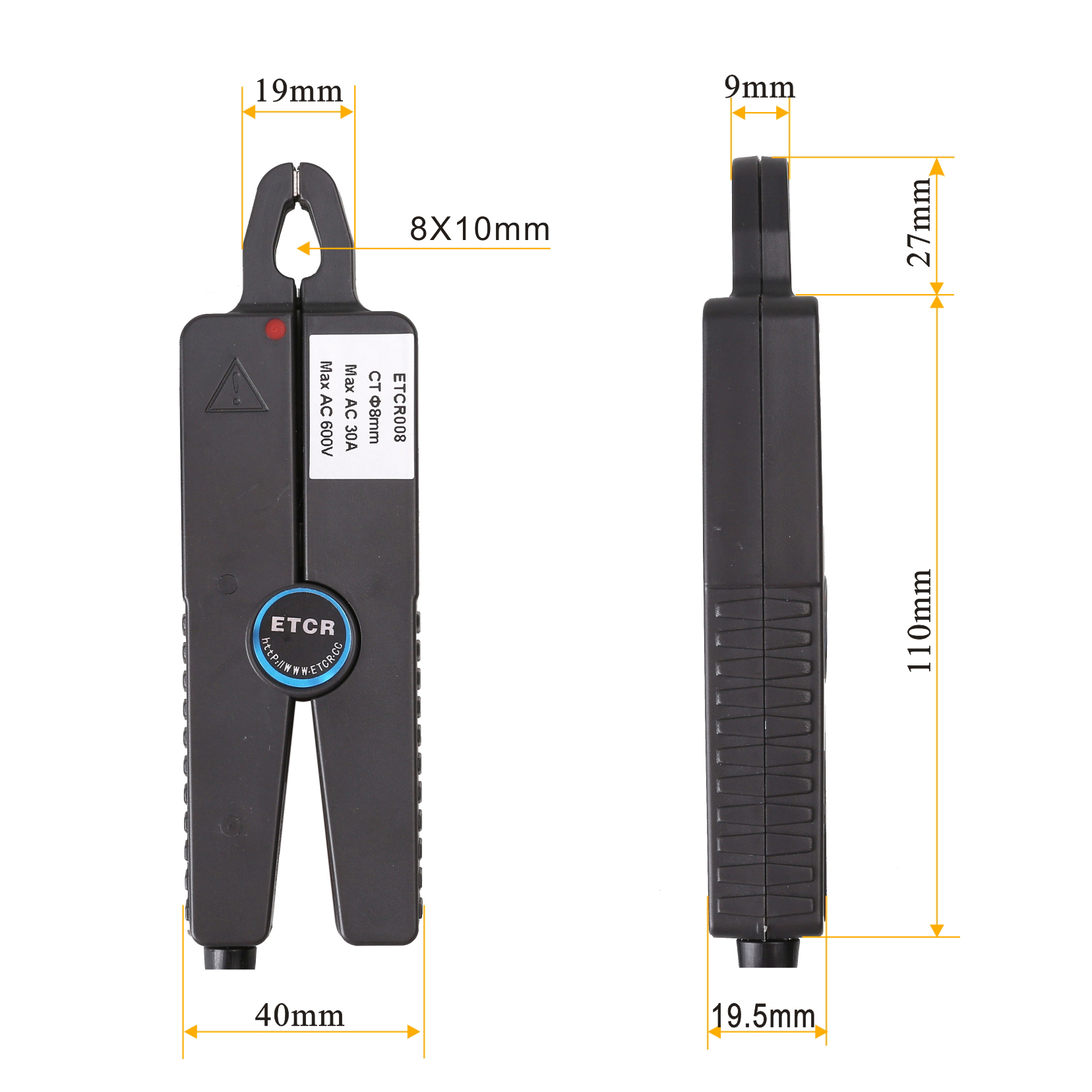

EM008		Range: 0.00mA～30A AC Accuracy level: 0.5 Phase error: ≤2° Variable ratio: 2500:1 Working frequency: 10Hz～100kHz	0～300mA≤300Ω 0～3A≤30Ω 0～30A≤3Ω	Ф8mm	137mm×40mm×19.5mm	175g

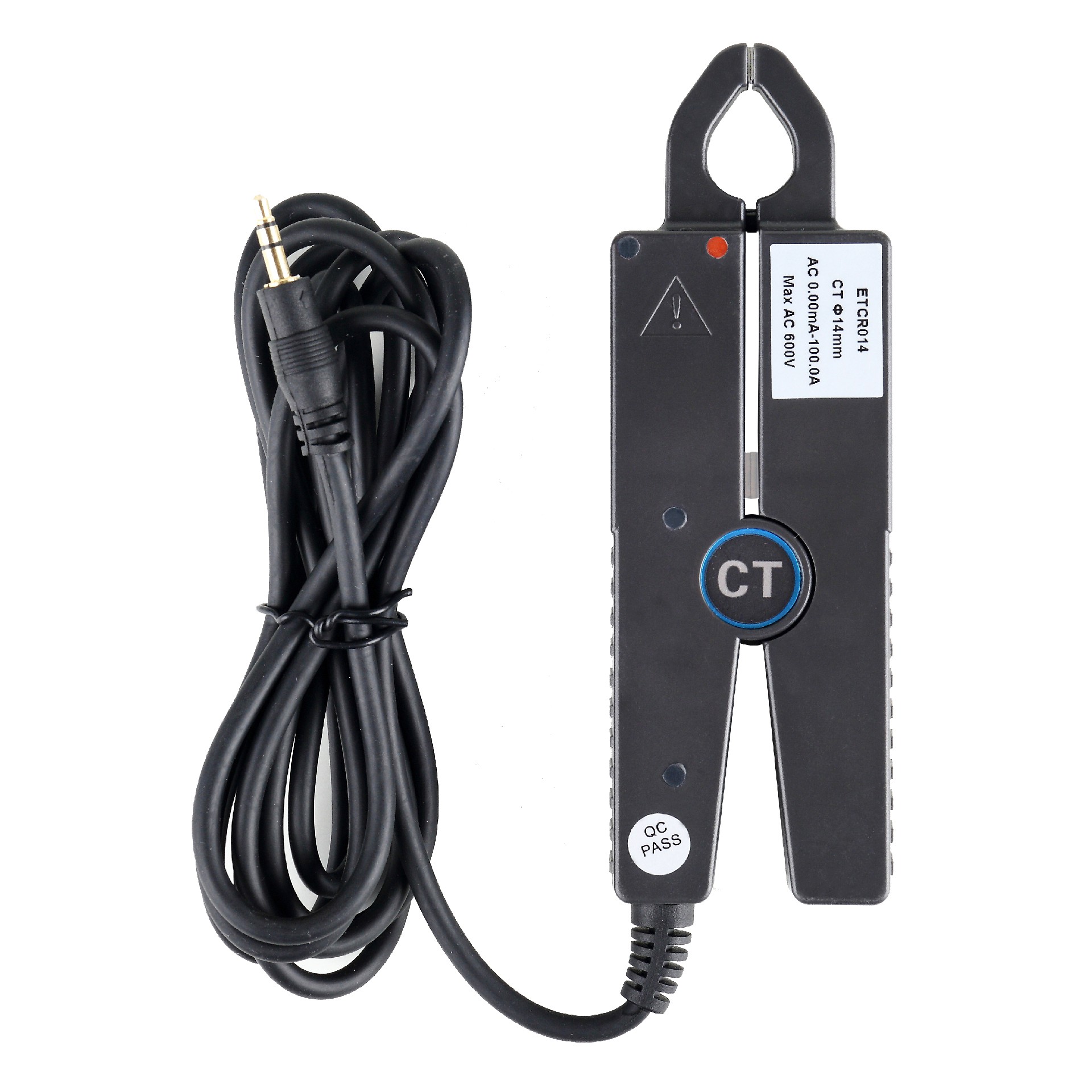

EM014		Range: 0.00mA～100A AC Accuracy level: 0.5 Phase error: ≤2° Variable ratio: 2500:1 Working frequency: 10Hz～100kHz	0～1A≤300Ω 0～10A≤30Ω 0～100A≤3Ω	Ф14mm	142mm×46.7mm×22.6mm	195g

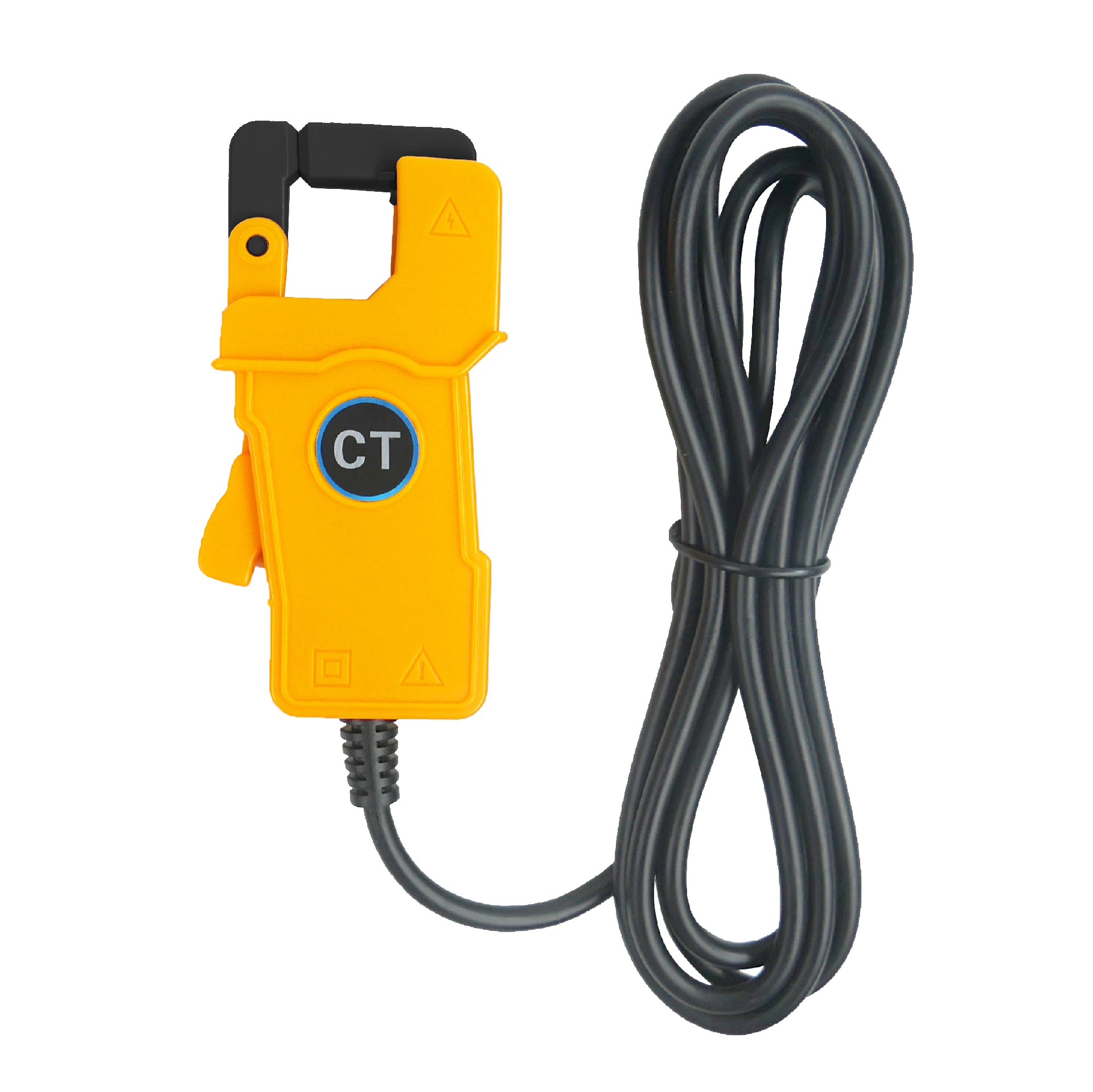

EM015		Range: 0.00mA～100A AC Accuracy level: 0.5 Phase error: ≤2° Variable ratio: 2500:1 Working frequency: 10Hz～100kHz	0～1A≤300Ω 0～10A≤30Ω 0～100A≤3Ω	17mm×18mm	47mm×92mm×26mm	156g
