Product Series : Clamp Type Current Sensor
Used for online detection of AC and DC current
Products meet CE requirements
Power supply: 9V DC
Clear method: yes
Accept customer customization
Product Introduction
Technical Parameters
Performance characteristics of AC and DC current clamp series products：
1. Clamp-shaped structure, no power failure or disconnection of the line under test, easy to carry, especially suitable for on-site online testing.
2. It adopts Hall induction technology, has stable performance and high accuracy, and has strong anti-interference ability.
3. It can output current signal or voltage signal.
4. The range, output signal, output interface, etc. of the transformer can be customized according to customer requirements.
5. Output interface: BNC plug/4.0mm dual banana plug/3.5mm audio plug (optional), cable length 1.5m.
6. Safety level: CATⅢ600V.
7. Working temperature: -15°C～50°C
| Product Model | Product Picture | Measurement Parameter | Output Signal | Clamp Jaw Size | Dimensions | Weight |

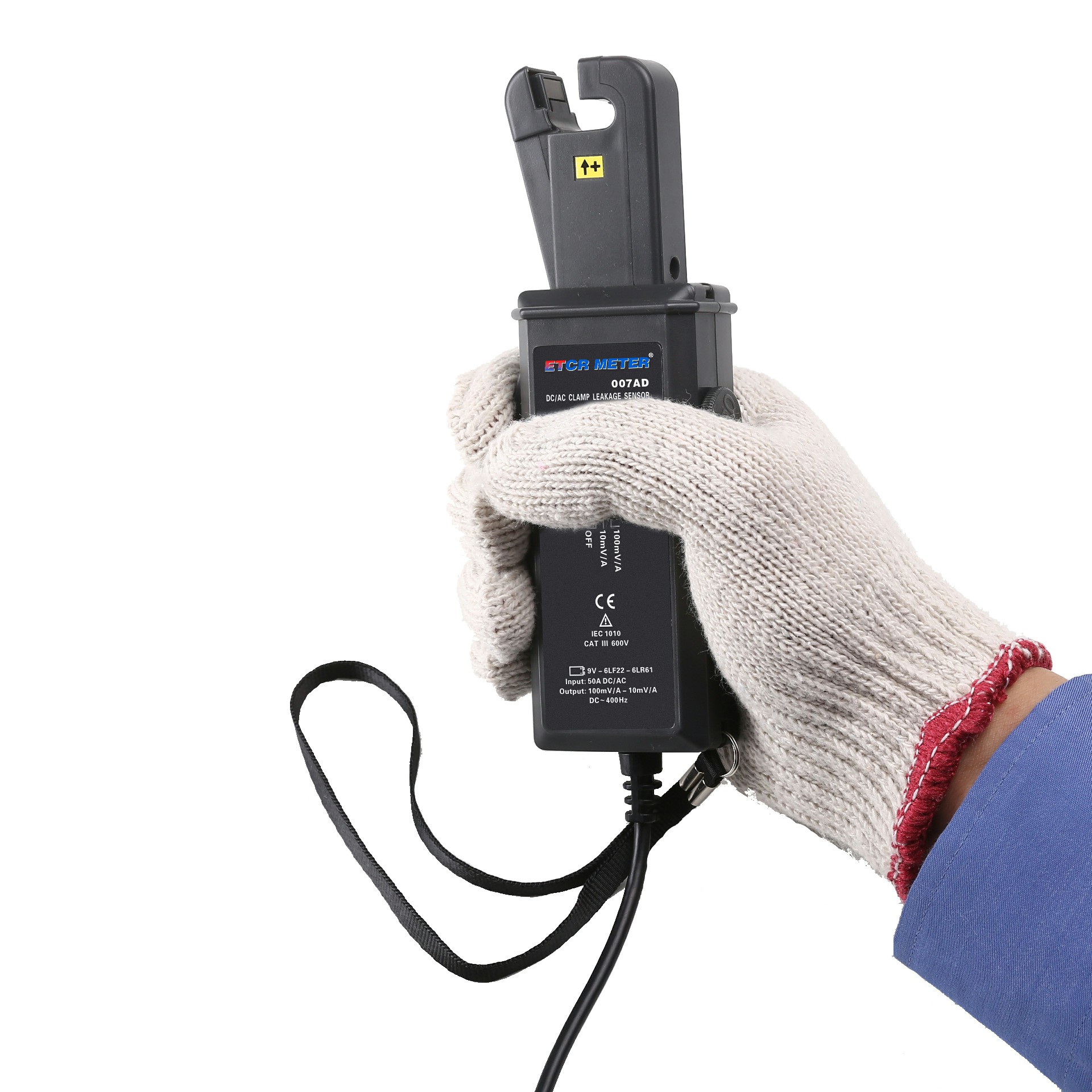

| EM007AD |  | Range: 0mA～50A AC/DC Accuracy level: 3 Phase error: ≤3° Working frequency: DC～400Hz | 10mV/1A or 100mV/1A(Manual shift) | Ф7mm | 168mm×65mm×34mm | 170g |

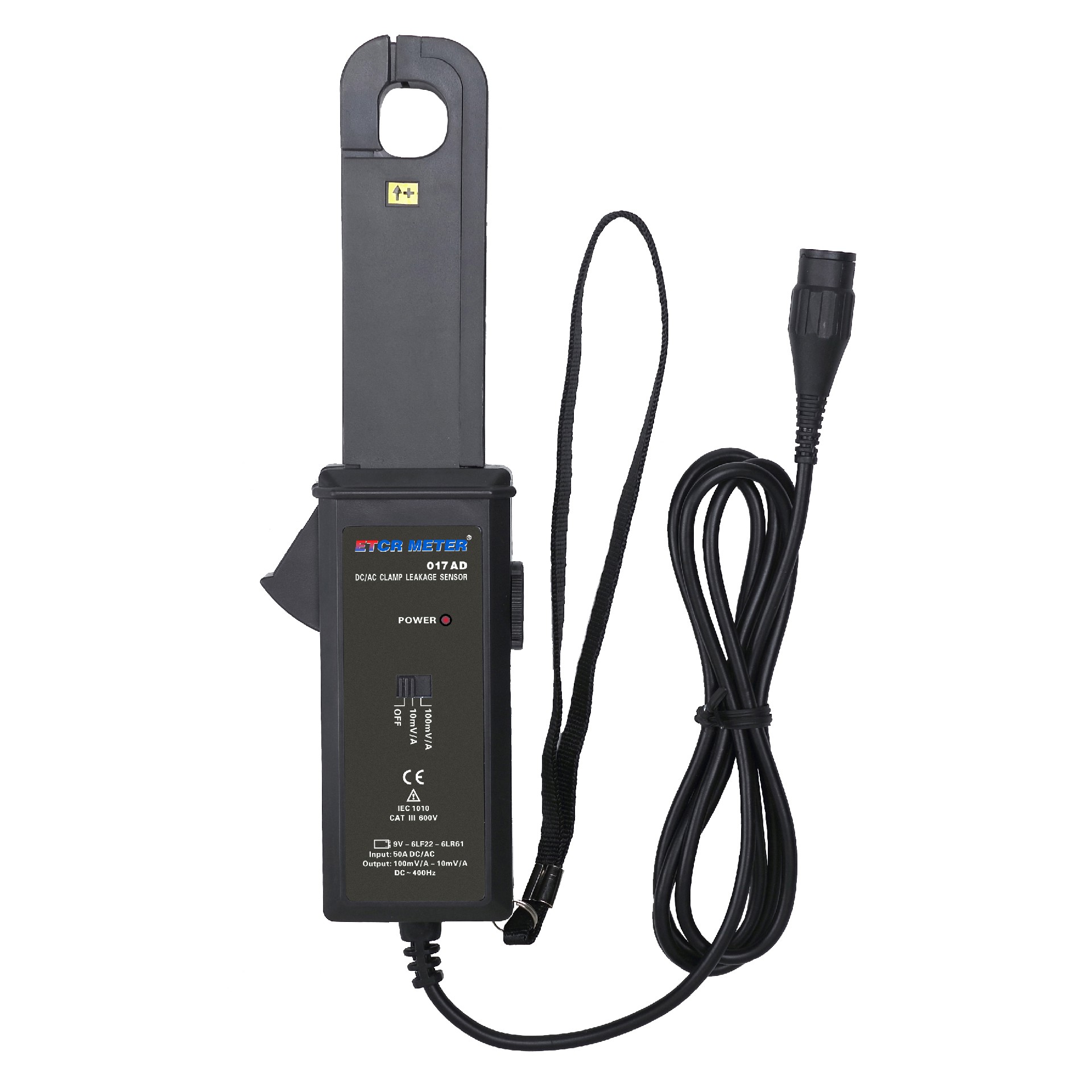

| EM017AD |  | Range: 0mA～50A AC/DC Accuracy level: 3 Phase error: ≤3° Working frequency: DC～400Hz | 10mV/1A or 100mV/1A(Manual shift) | 16mm×18mm | 215mm×65mm×34mm | 202g |
| EM030AD |  | Range: 0.1mA～100mA DC Accuracy level: 3 Phase error: ≤3° Working frequency: DC | 25mV/1mA | 25mm×30mm | 115mm×70mm×33mm | 163g |

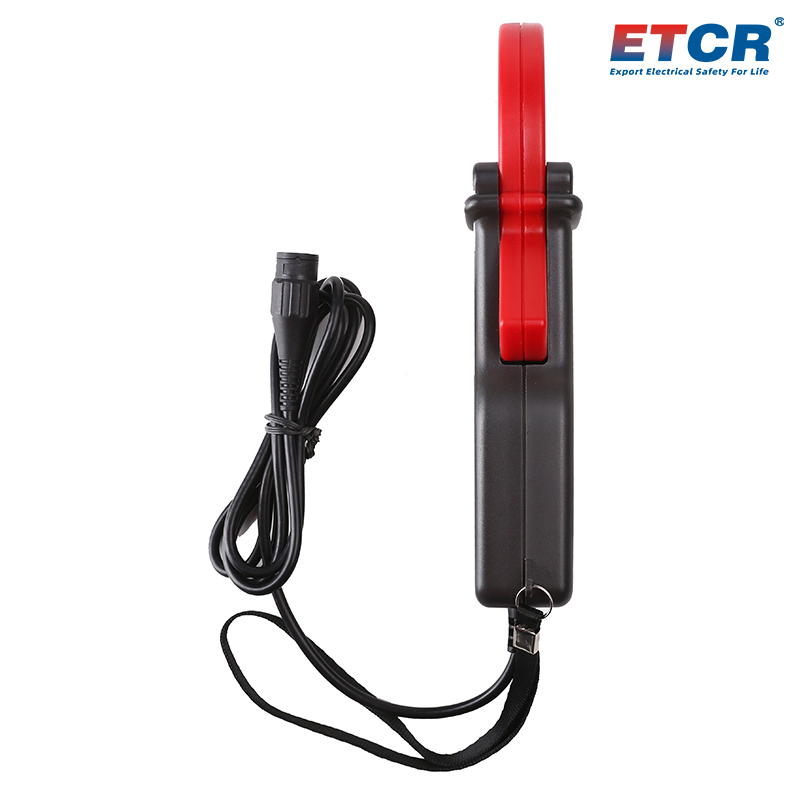

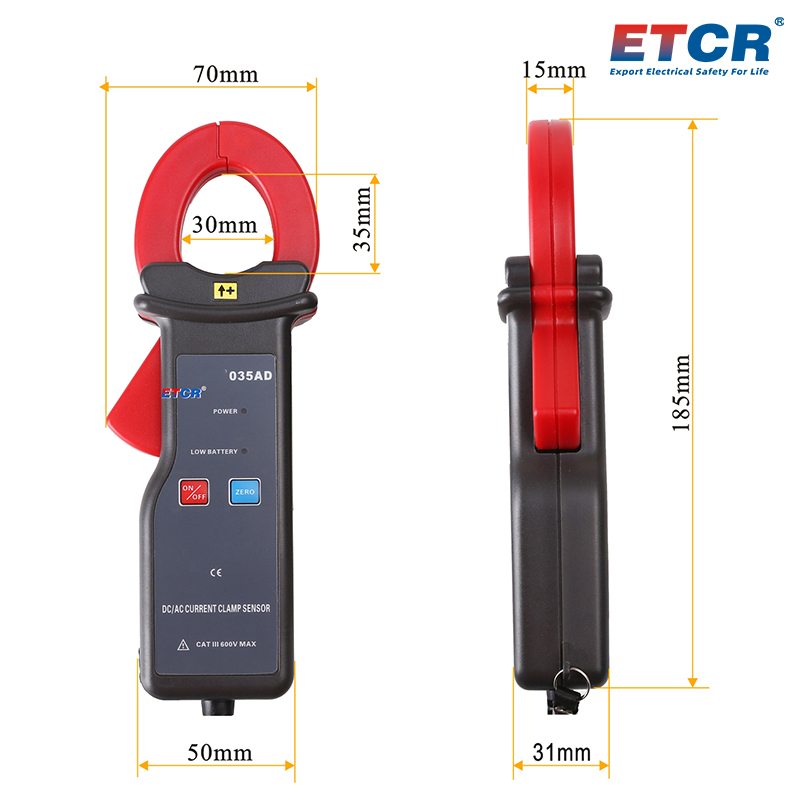

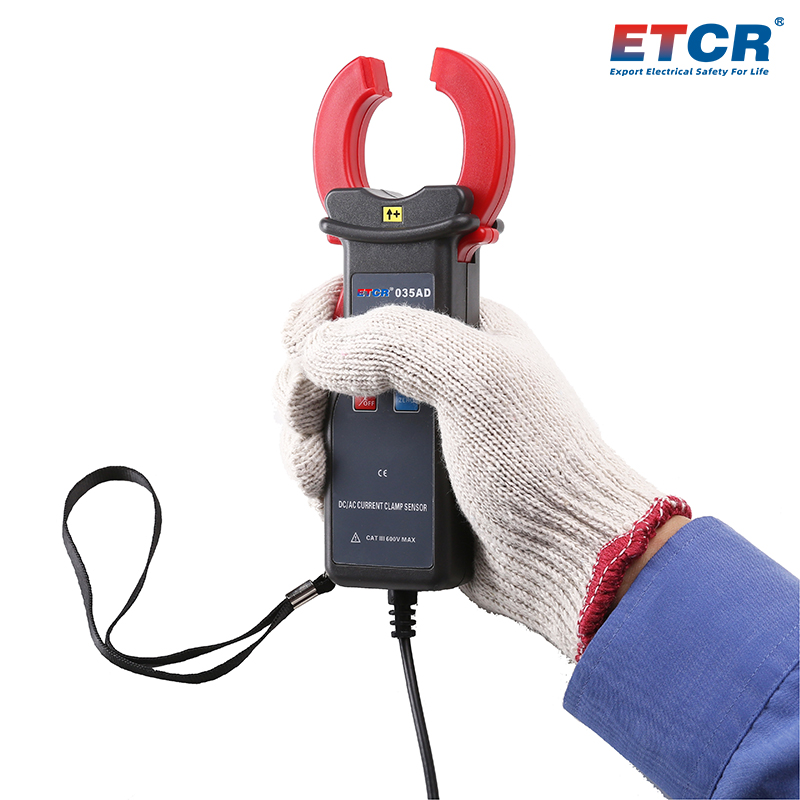

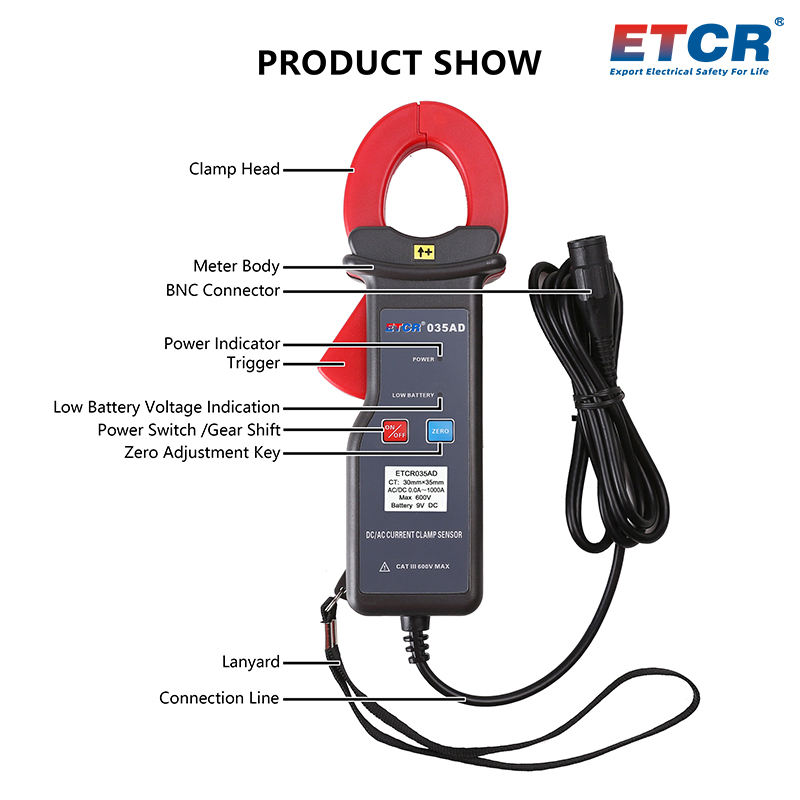

| EM035AD |  | Range: 0.0A～1000A AC/DC Accuracy level: 2 Phase error: ≤3° Working frequency: DC～400Hz | 1mV/1A | 30mm×35mm | 122mm×70mm×33mm | 180g |

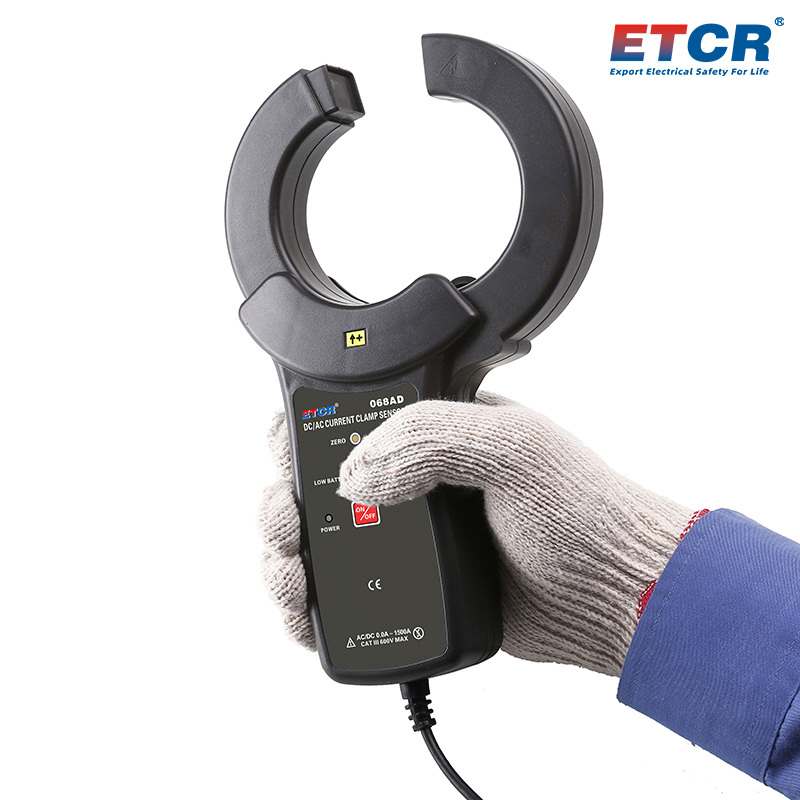

| EM068AD |  | Range: 0.0A～1500A AC/DC Accuracy level: 3 Phase error: ≤3° Working frequency: DC～400Hz | 1mV/1A | Ф68mm | 224mm×115mm×43mm | 515g |
