Product Introduction

1. Clamp-type structure, no power outage or disconnection required, making it easy to carry and particularly suitable for on-site online testing.

2. Utilizing Hall effect sensing technology, it offers stable performance, high accuracy, and strong anti-interference capabilities.

3. The transformer's measuring range, output signal, and output interface can be customized to meet customer requirements.

4. Output interface: BNC plug/4.0mm dual banana plug/3.5mm audio plug (optional), cable length 1.5m.

5. Safety rating: CAT III 600V.

6. Operating temperature: -15°C to 50°C

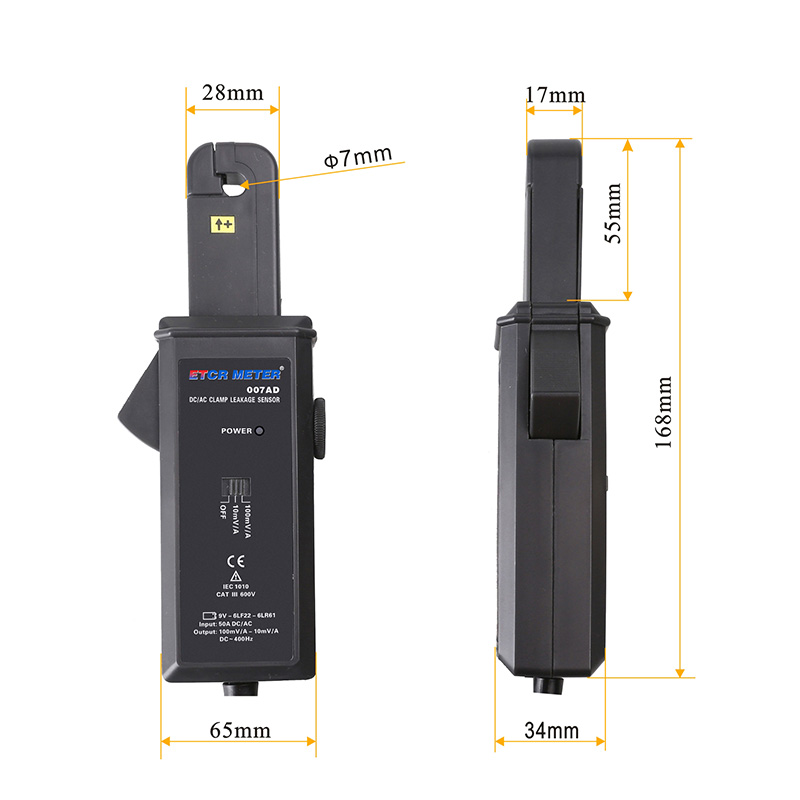

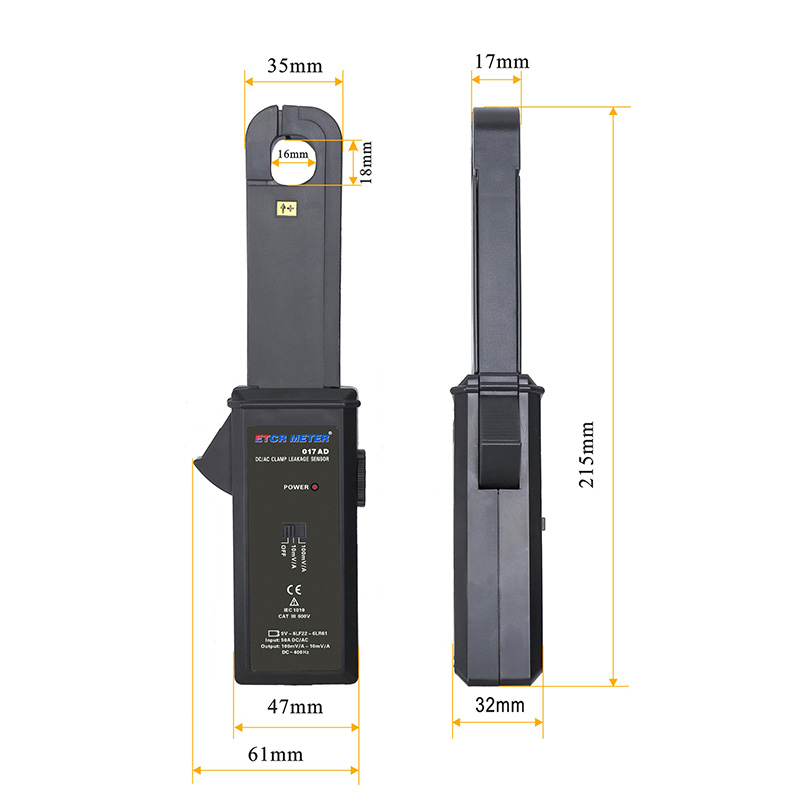

EM007AD (5).jpg EM017AD (7).jpg

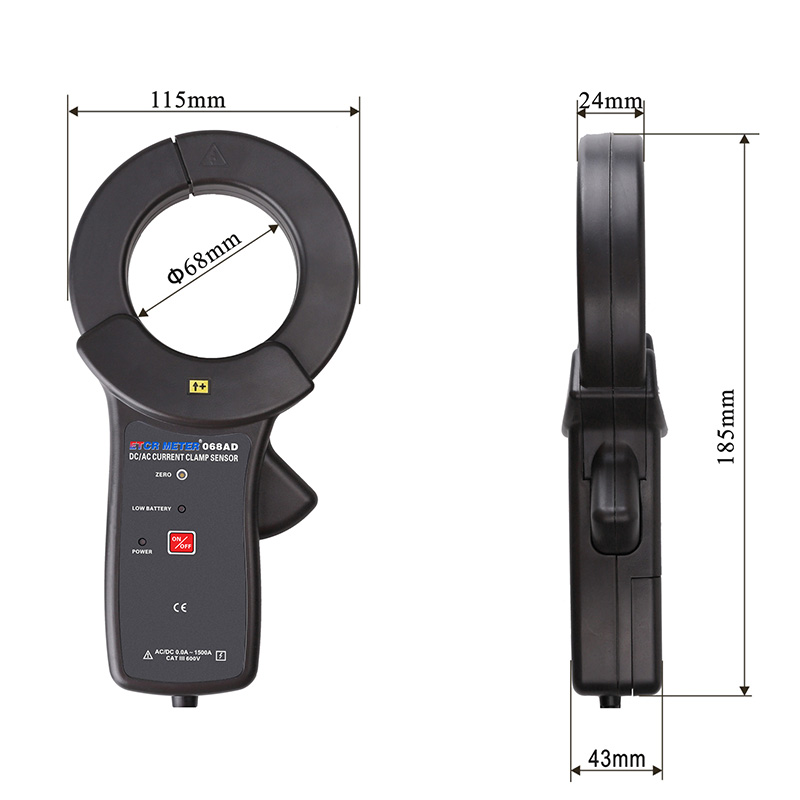

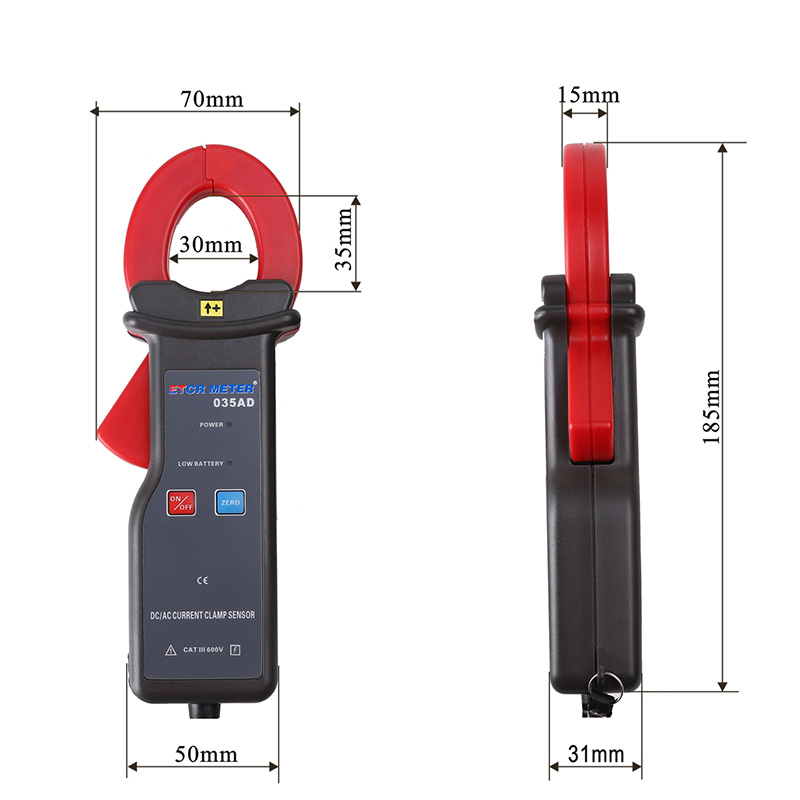

EM035AD (5).jpg EM068AD (5).jpg

Technical Parameters

Product Model	Product Image	Measurement Parameters	Output Signal	Jaw Size	Dimensions	Weight

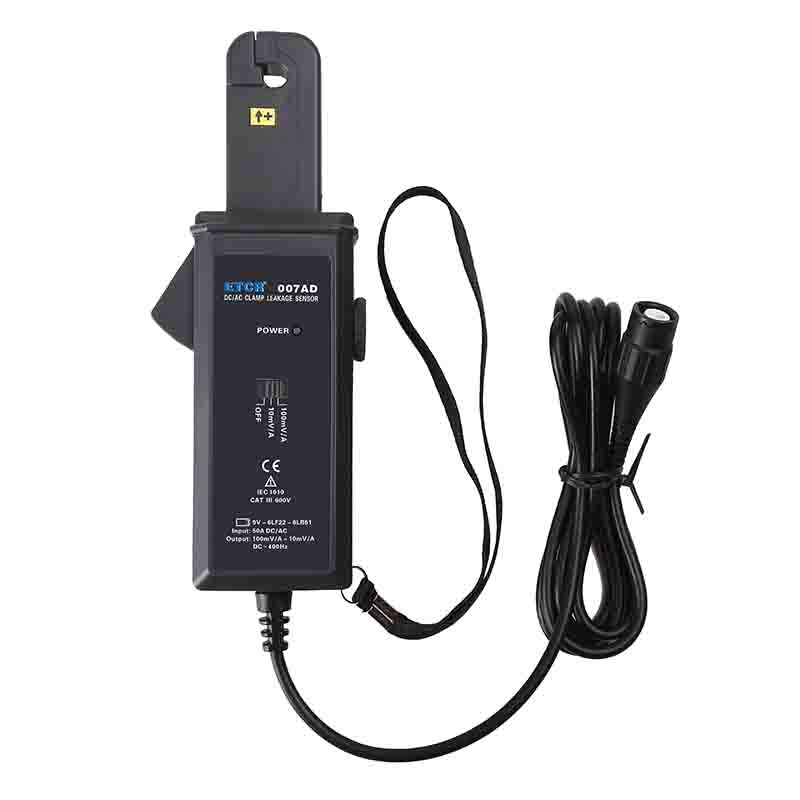

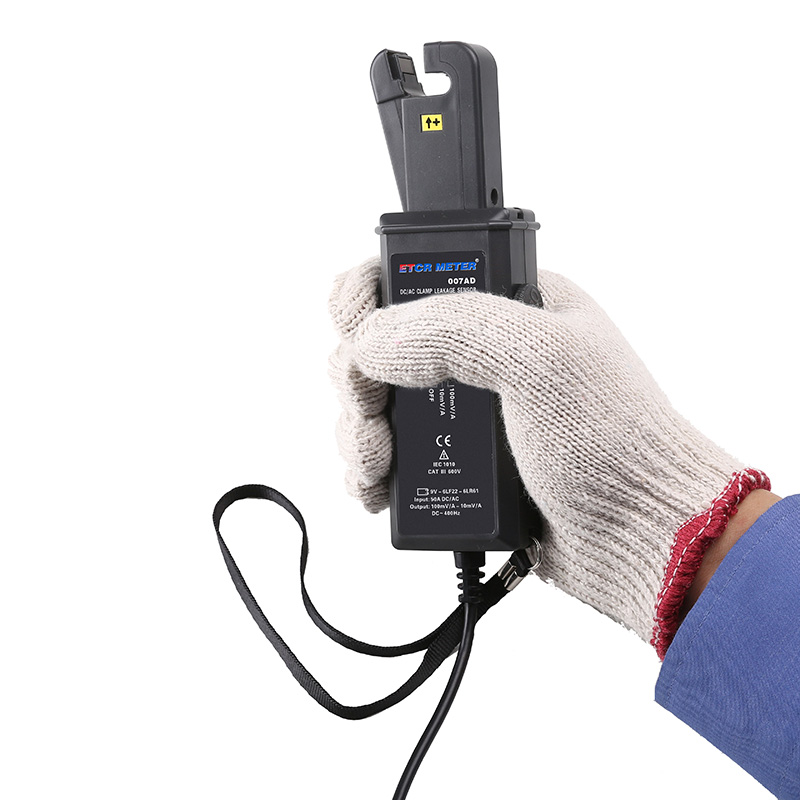

ETCR EM007AD		Range： 0mA～50A AC/DC Accuracy Grade：3 Phase Error：≤3° Operating Frequency：DC～400Hz	10mV/1A or 100mV/1A (manual shift)	Ф7mm	168mm×65mm×34mm	170g

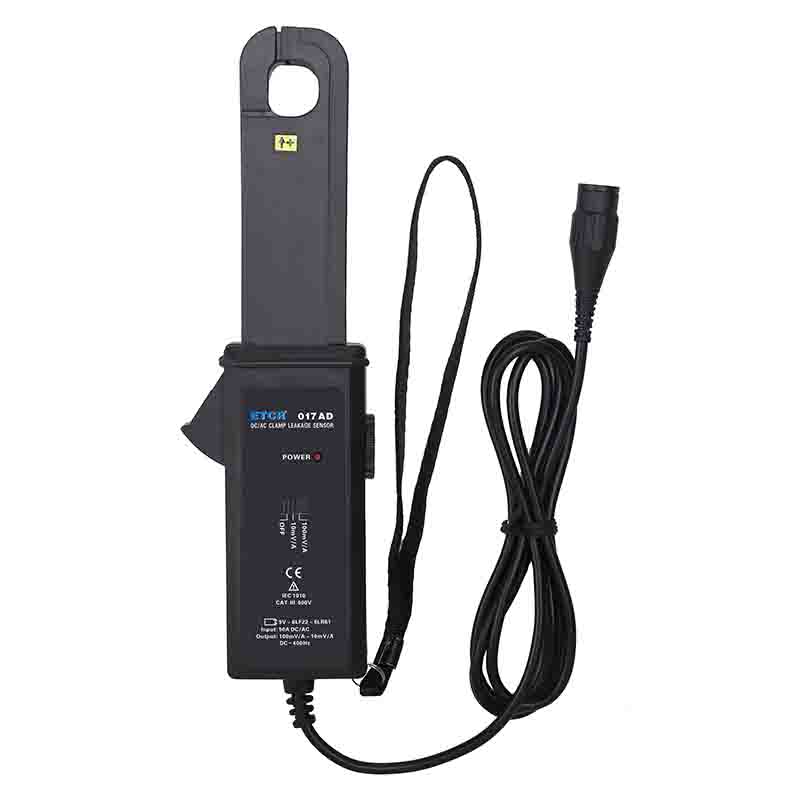

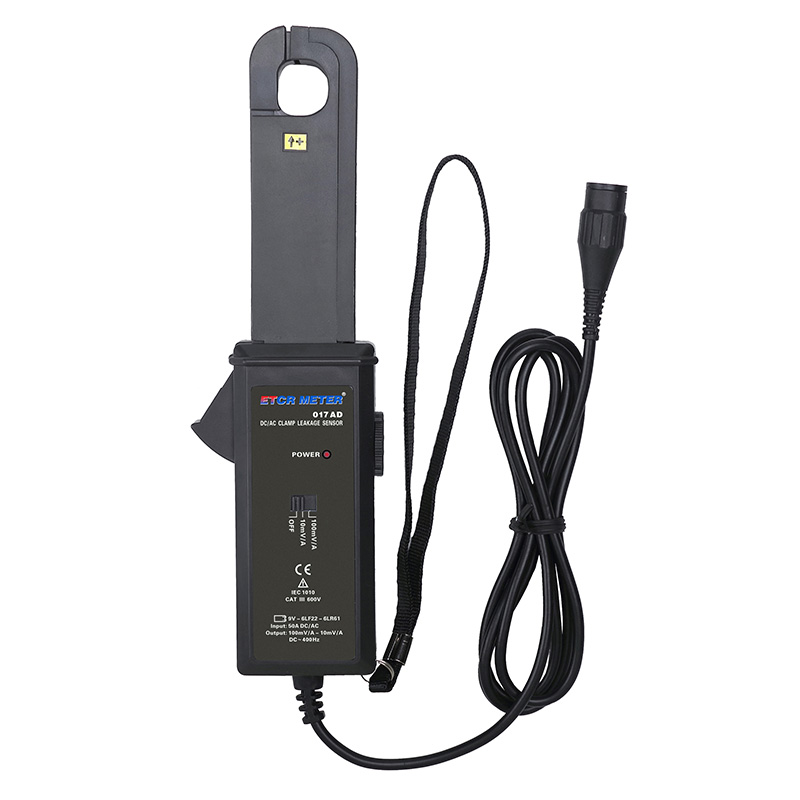

ETCR EM017AD		Range： 0mA～50A AC/DC Accuracy Grade：3 Phase Error：≤3° Operating Frequency：DC～400Hz	10mV/1A or 100mV/1A (manual shift)	16mm×18mm	215mm×65mm×34mm	202g

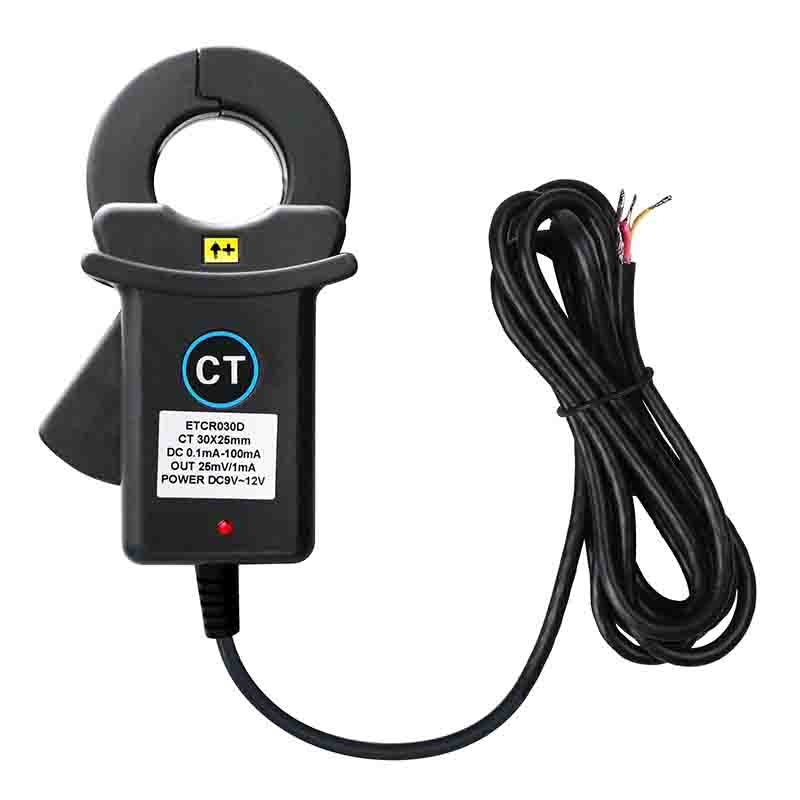

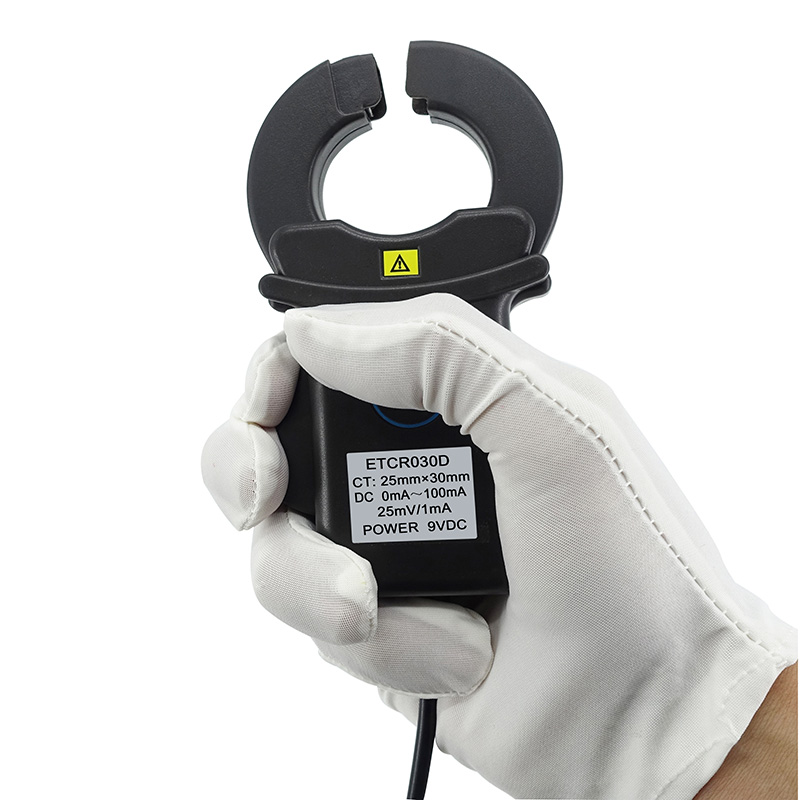

ETCR EM030D		Range： 0.1mA～100mA DC Accuracy Grade：3 Phase Error：≤3° Operating Frequency：DC	25mV/1mA	25mm×30mm	115mm×70mm×33mm	163g

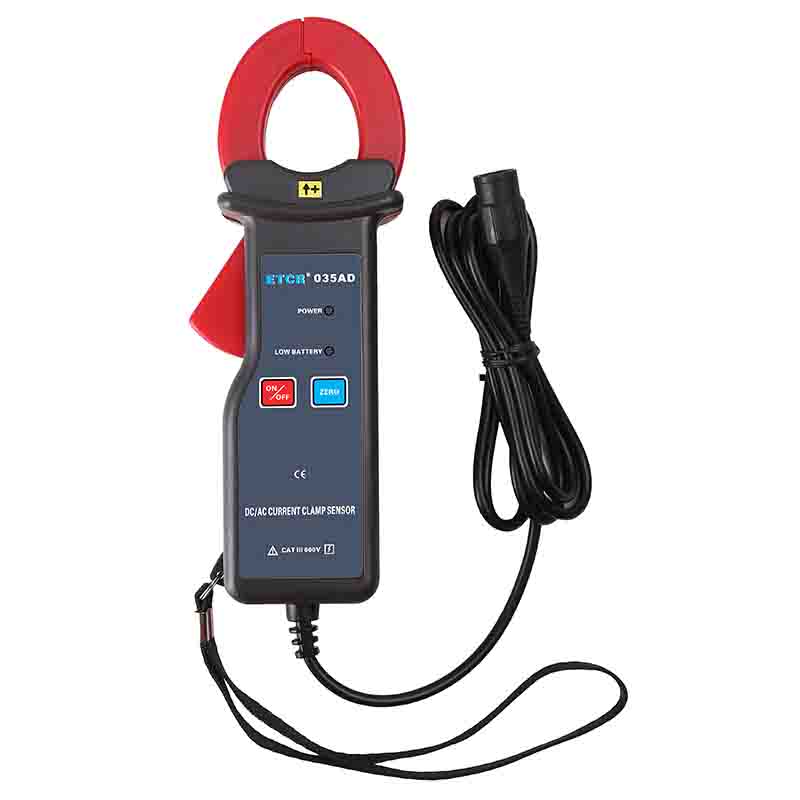

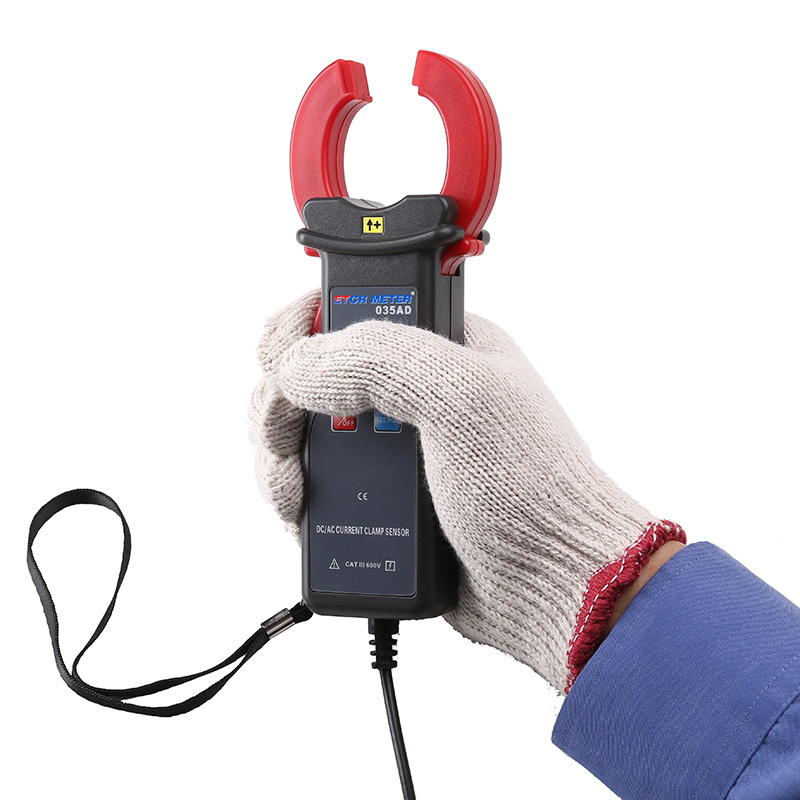

ETCR EM035AD		Range： 0.0A～1000A AC/DC Accuracy Grade：2 Phase Error：≤3° Operating Frequency：DC～400Hz	1mV/1A	30mm×35mm	122mm×70mm×33mm	180g

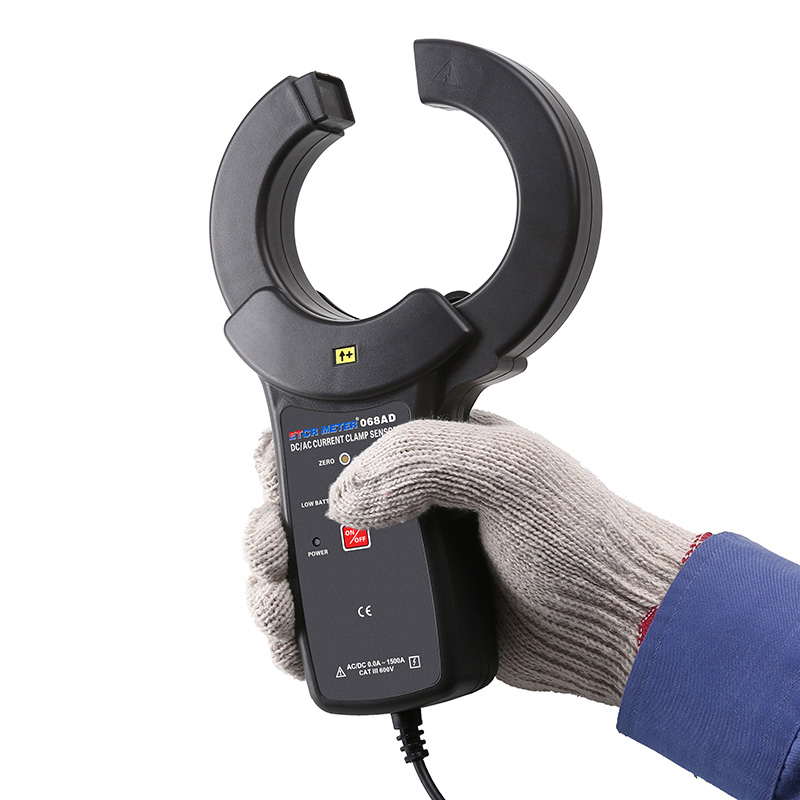

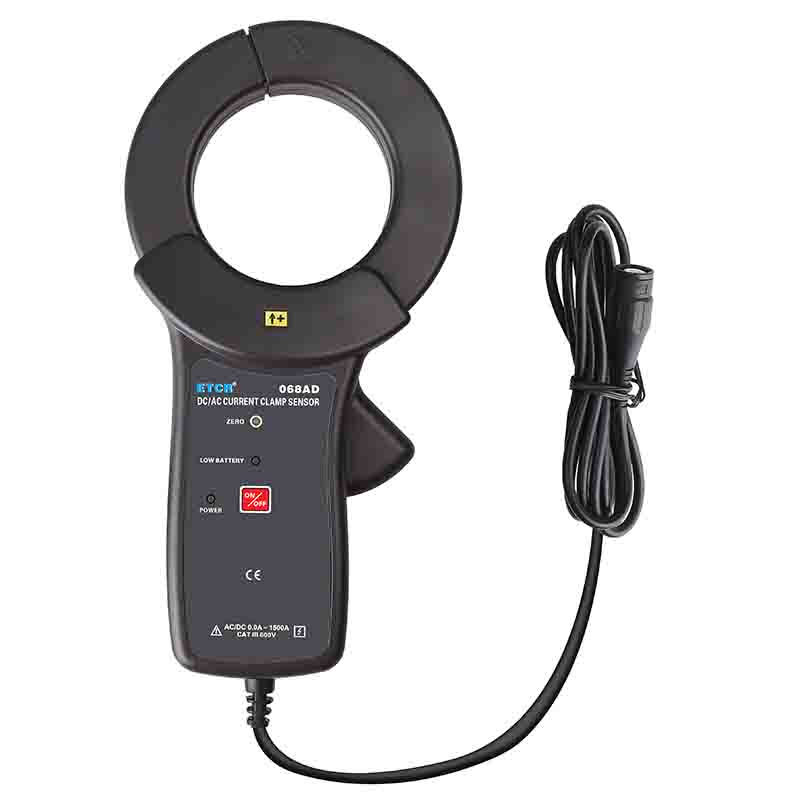

ETCR EM068AD		Range： 0.0A～1500A AC/DC Accuracy Grade：3 Phase Error：≤3° Operating Frequency：DC～400Hz	1mV/1A	Ф68mm	224mm×115mm×43mm	515g
