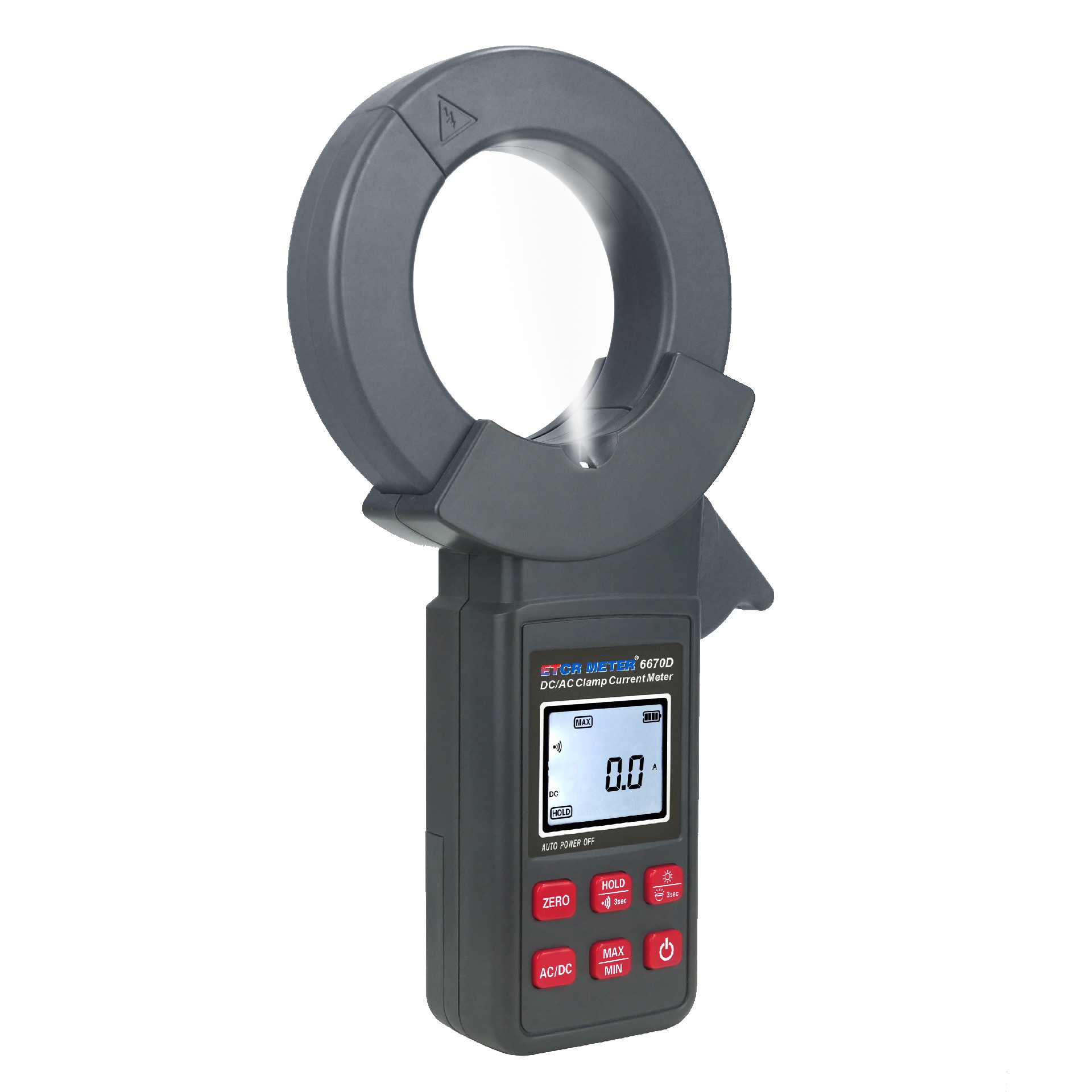

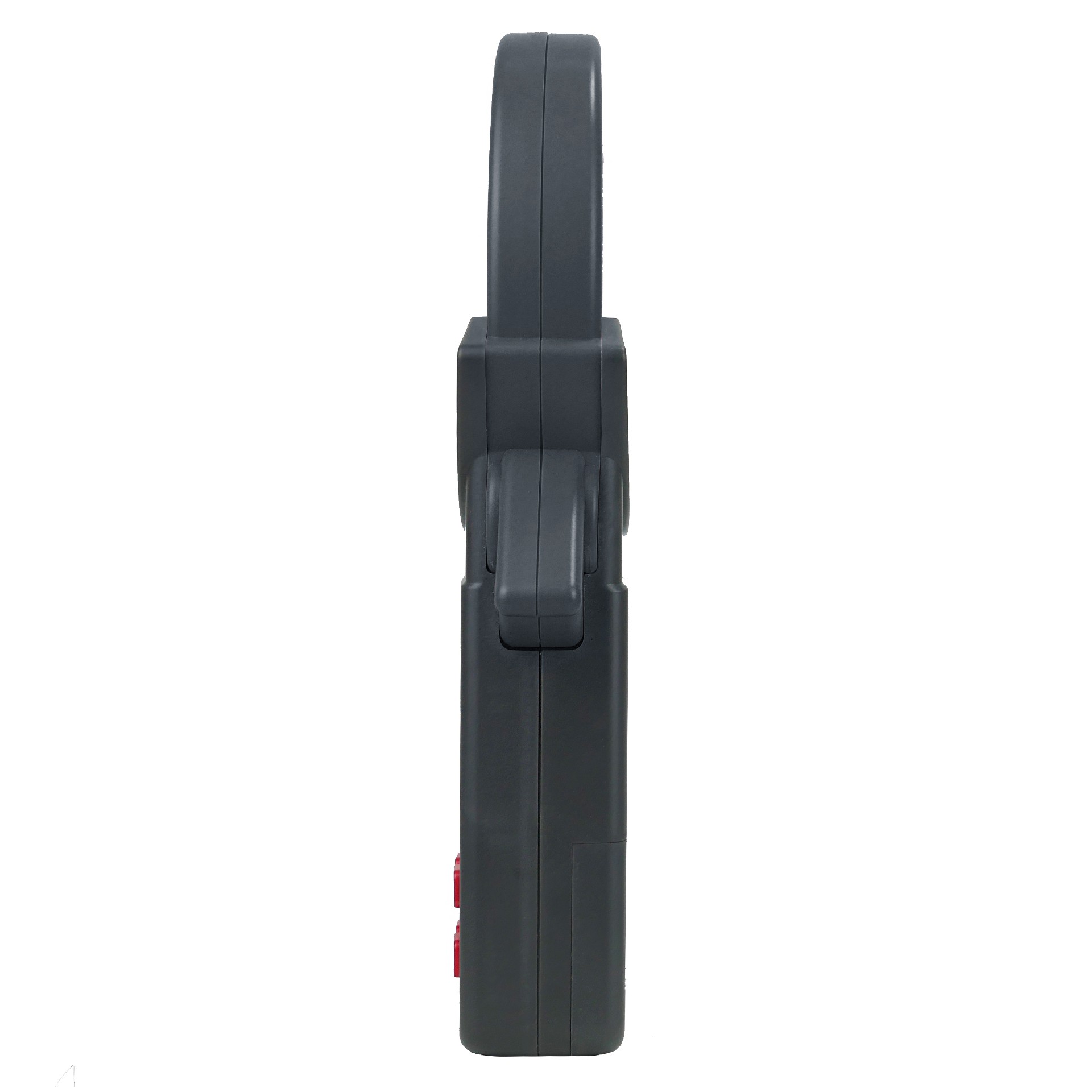

ETCR EM6670D Large Caliber DC/AC Clamp Leakage Current Meter
  • Product Series : AC/DC Current Tester

    • Main Features

      Measurement of AC/DC current
      Current measurement range: DC 0.0A~2000A、AC 0.0A~1500A
      Clamp jaw size: Φ70mm
      Memory: data storage 2000 groups
      Bluetooth communication function
      Flashlight function
      Lithium battery

    Product Introduction

    ETCR EM6670D Large Caliber DC/AC Clamp Current Meter, also known as clamp type current meter, which is used for measurement of AC/DC current. The meter adopt with Hall effect sensor and unique CT digital integration technology, the characteristics of small size, high precision and perfect function, which widely used in power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.

    ETCR EM6670D Large Caliber DC/AC Clamp Current Meter with DC/AC true RMS measurement, maximum value / minimum value / average value and other test functions. The meter with data hold function, Bluetooth communication function, equipped with large capacity rechargeable lithium battery and type-c charging port, which is new type essential tool for electrical safety testing.
    1.The meter adopt with Hall effect sensor and digital integration technology, high precision of measurement, stable performance.
    2.The meter with DC/AC true RMS measurement, maximum value / minimum value / average value and other test functions.
    3.Memory: data storage 2000 groups
    4.Bluetooth communication function
    5.Flashlight function
    6.Large capacity Lithium battery, type-c charging port.

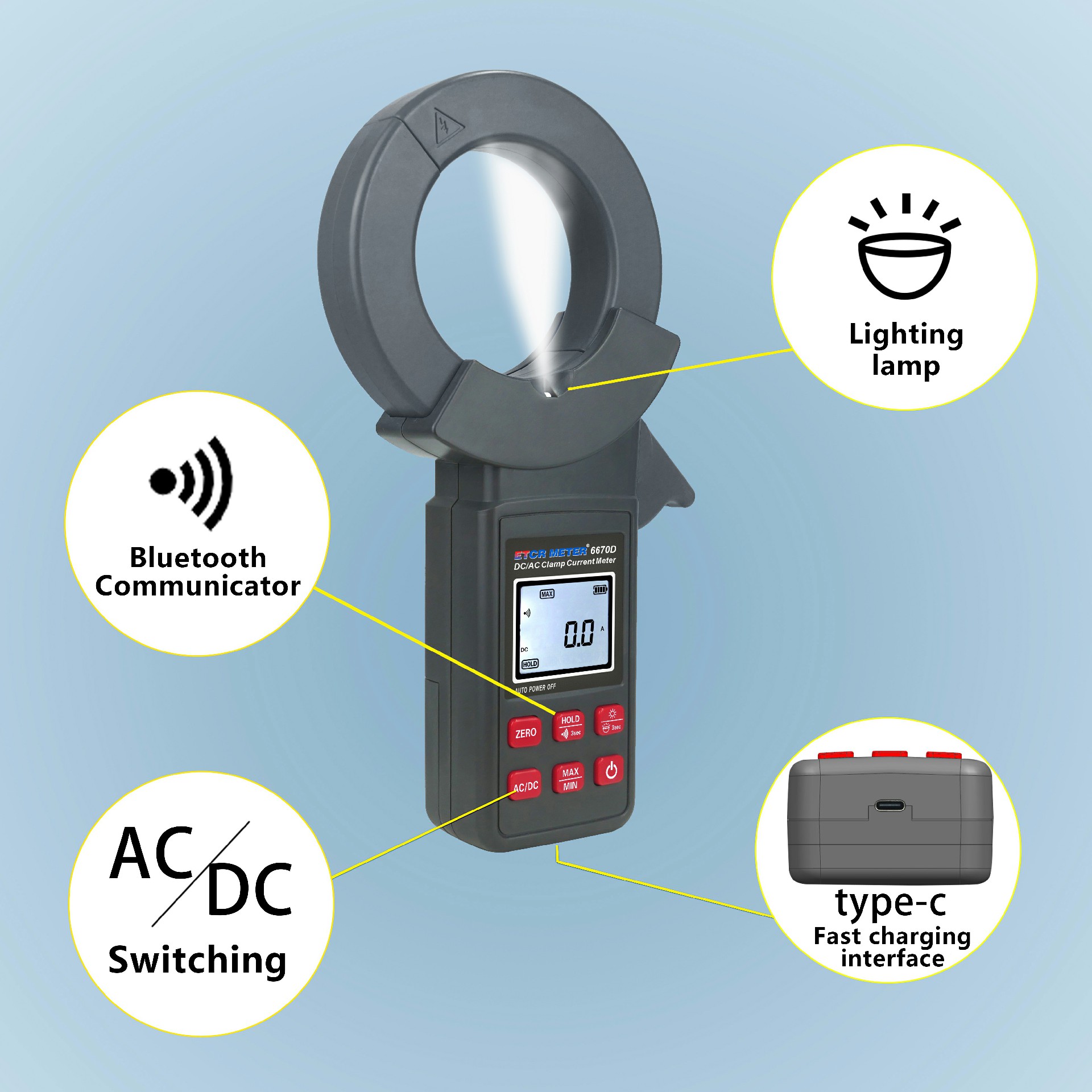

    EM6670D (7)~1.jpg

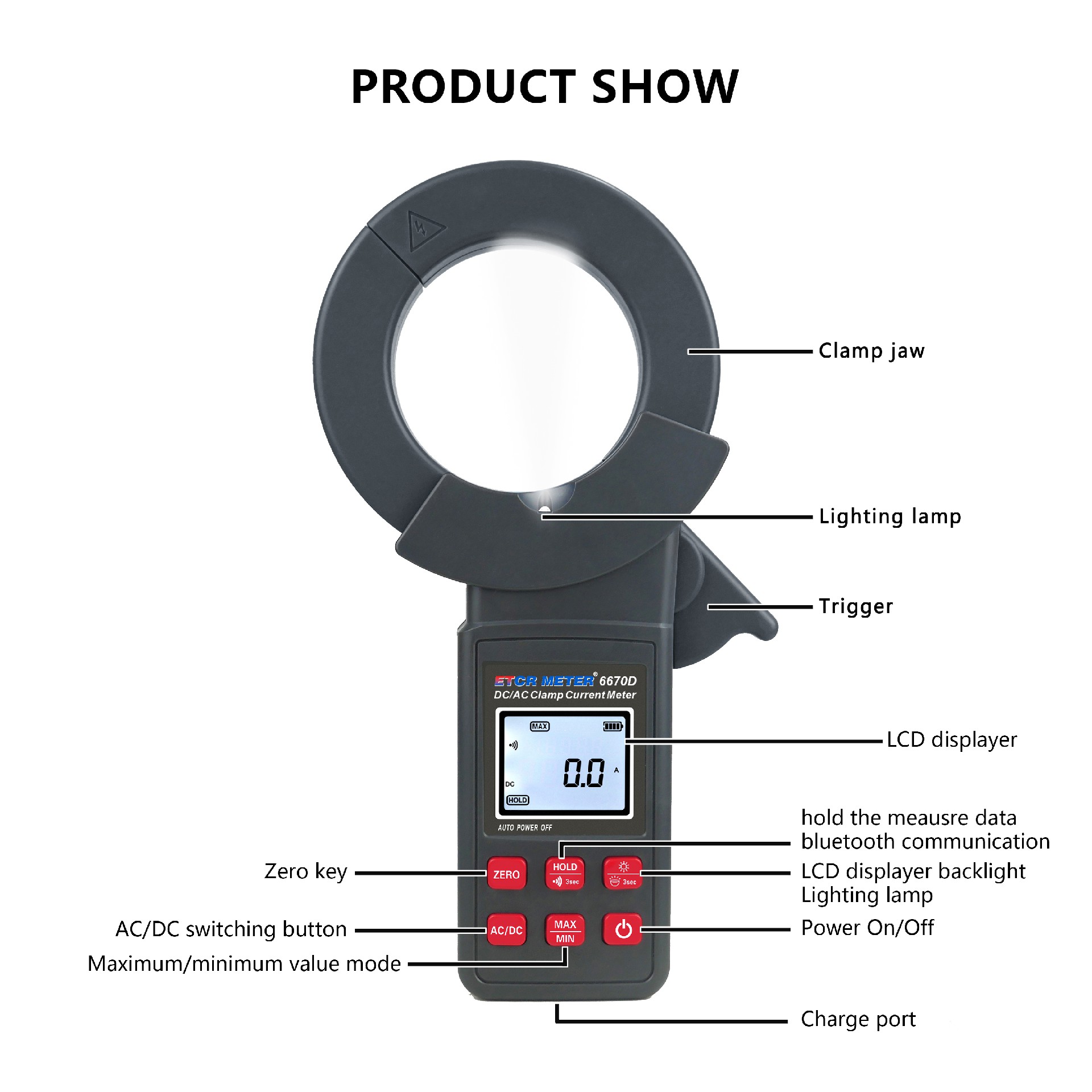

    EM6670D (8).jpg

    Technical Parameters


    Model

    EM6670D

    EM6680D

    Range

    DC 0.0A~2000A

    DC 0.0A~2000A


    AC 0.0A~1500A

    AC 0.0A~1000A

    Resolution

    AC/DC 0.0A

    AC/DC 0.0A

    Max Accuracy

    ±2%rdg±5dgt

    ±2%rdg±5dgt

    CT Size

    Φ70mm

    80mmX80mm

    Meter Dimension

    237mmX131mmX40mm

    253mmX145mmX40mm

    Weight

    477g

    664g

    Power Supply

    Rechargeable lithium battery DC3.7V/1000mAh

    LCD Size

    43mmX38mm; display area: 36.5mmX29mm

    LCD Backlight

    Yes

    Spotlight

    Yes

    Max/Min Value

    Yes

    Average Value

    Yes

    Data Hold

    Yes

    Data Store

    2000groups (Store with APP)

    Overflow Display

    Exceed measure range overflow function: “OL ” symbol display

    Bluetooth Communication

    Yes, can test or view the test results on mobile after installing the APP.

    Automatic Shutdown

    5 minutes without any operation after starting up, will shutdown automatically to reduce the power consumption.

    Working Current

    60mA (open spotlight 72mA)

    Line Voltage

    Circuit line test below 600V

    Working Condition

    -10~50; below 80%RH

    Dielectric Strength

    AC 3700V/rms(between the core and shell)

    Accessories

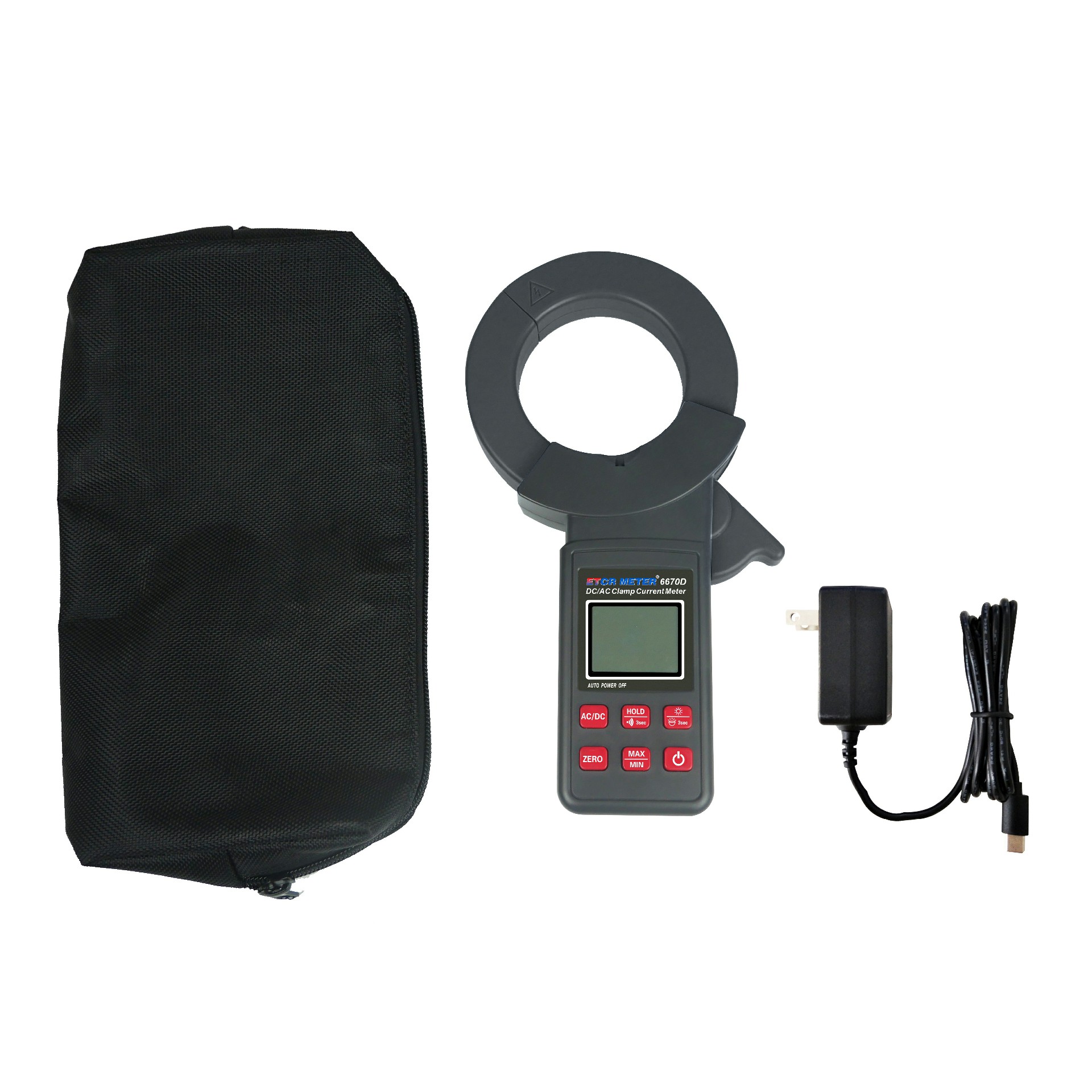

    Meter: 1PCS; Charge adaptor: 1set; Tool bag: 1PCS


    Model Comparison









    Product PictureProduct Model NameClamp Jaw SizeAC Current RangeDC Current RangeCommunication MethodOthers

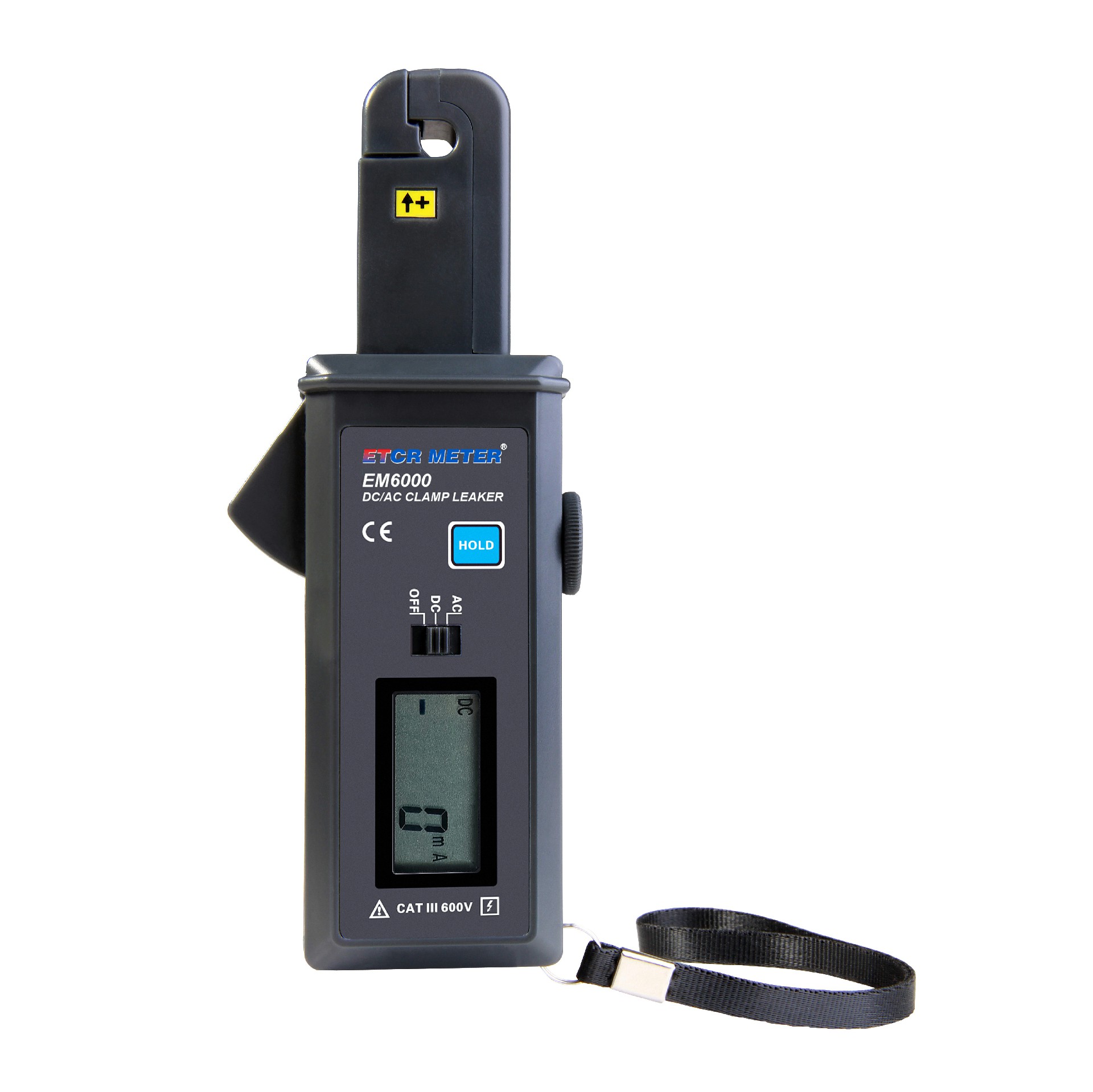

    EM6000 (1)~1.jpgETCR EM6000 DC/AC Clamp Leakage Current MeterΦ7mmAC 0mA~60.0ADC 0mA~60.0AUSB

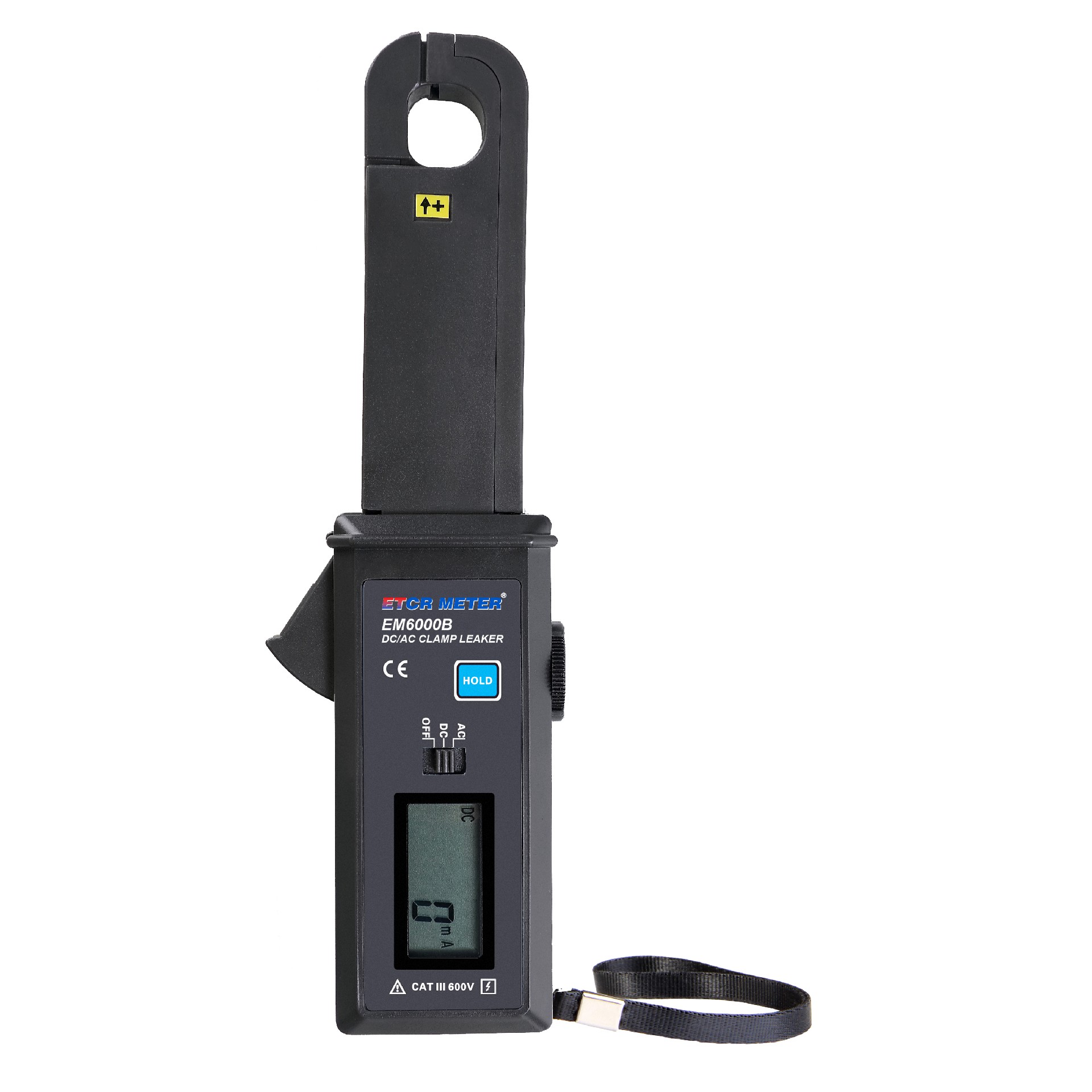

    EM6000B (1).jpgETCR EM6000B DC/AC Clamp Leakage Current Meter16mm×18mmAC 0mA~60.0ADC 0mA~60.0AUSB

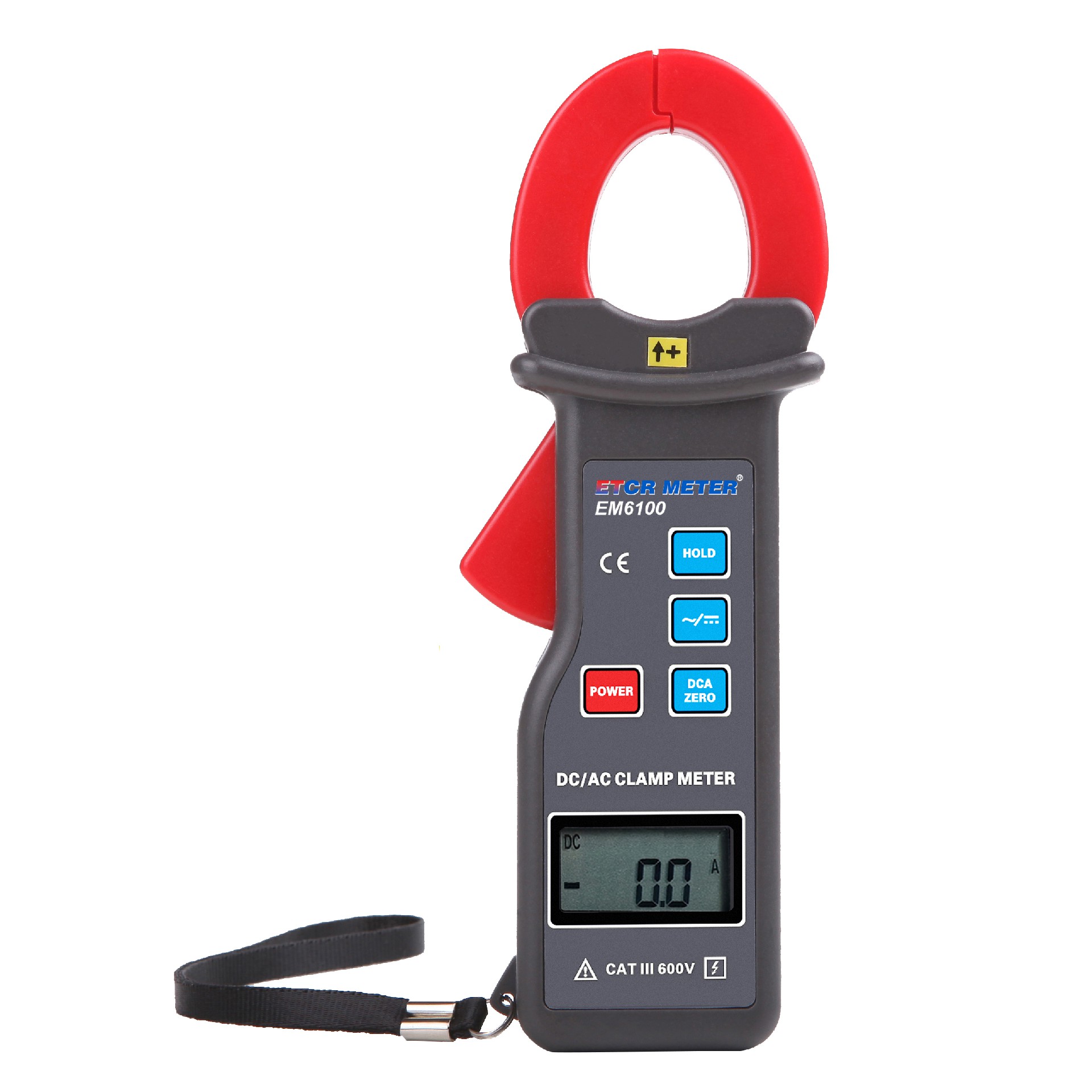

    EM6100 (1).jpgETCR EM6100 DC/AC Clamp Leakage Current Meter30mm×35mmAC 0.0A~1000ADC 0.0A~1000AUSB

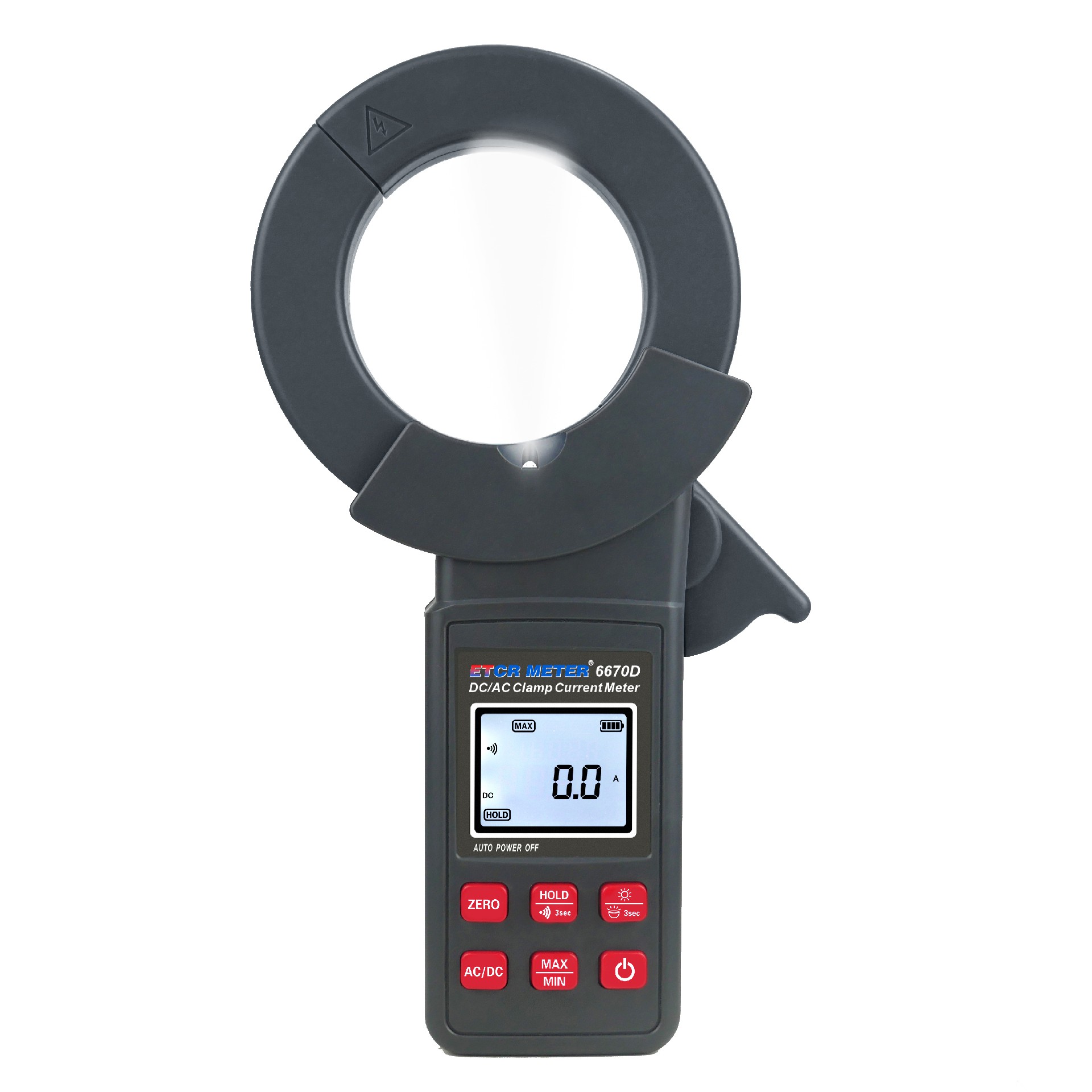

    EM6670D (1).jpgETCR EM6670D DC/AC Clamp Leakage Current MeterΦ70mmAC 0.0A~1500ADC 0.0A~2000ABluetoothTrue Virtual Value
    Harmonic
    Flashlight

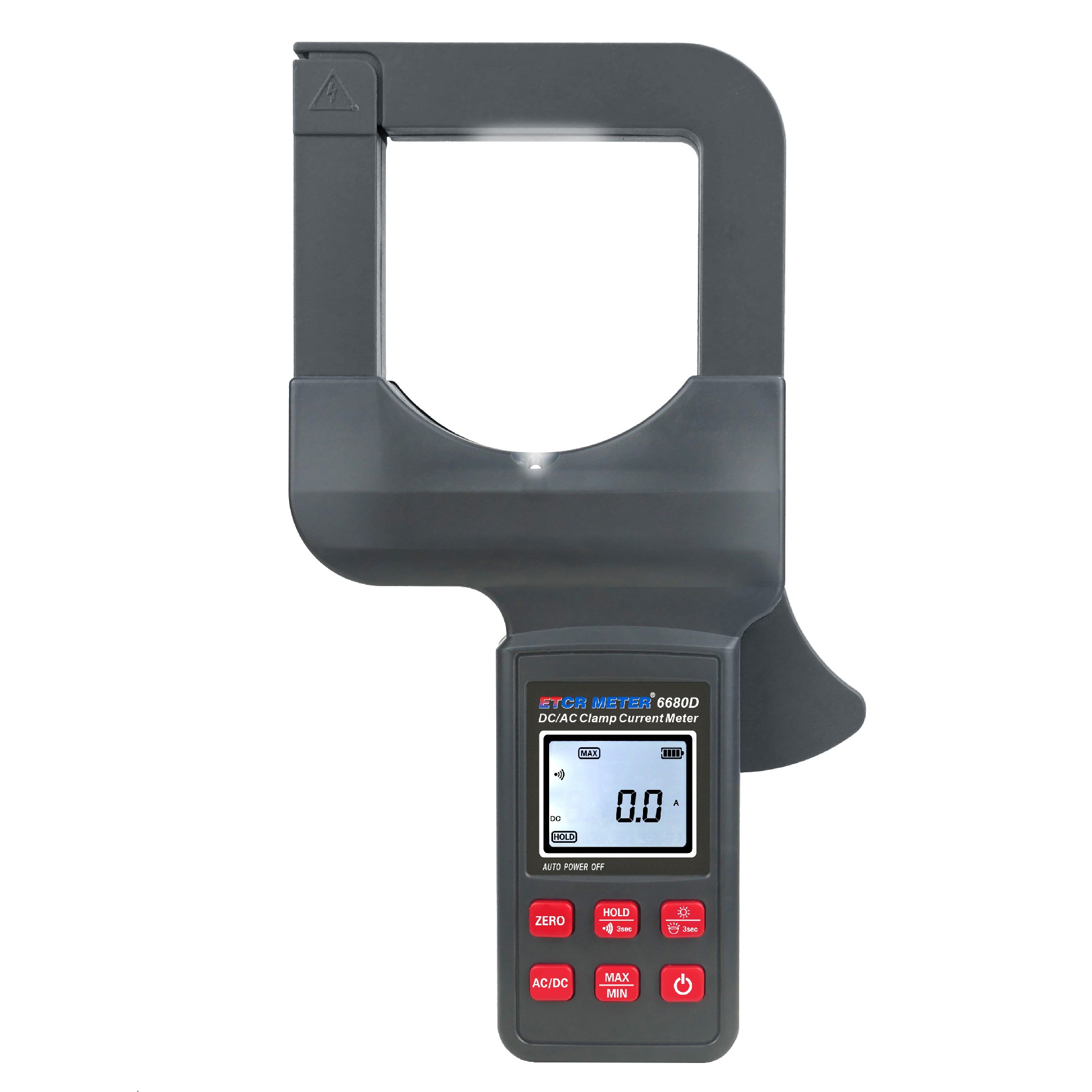

    EM6680D (1).jpgETCR EM6680D Large Caliber DC/AC Clamp Leakage Current Meter80mm×80mmAC 0.0A~1500ADC 0.0A~2000ABluetoothTrue Virtual Value
    Harmonic
    Flashlight

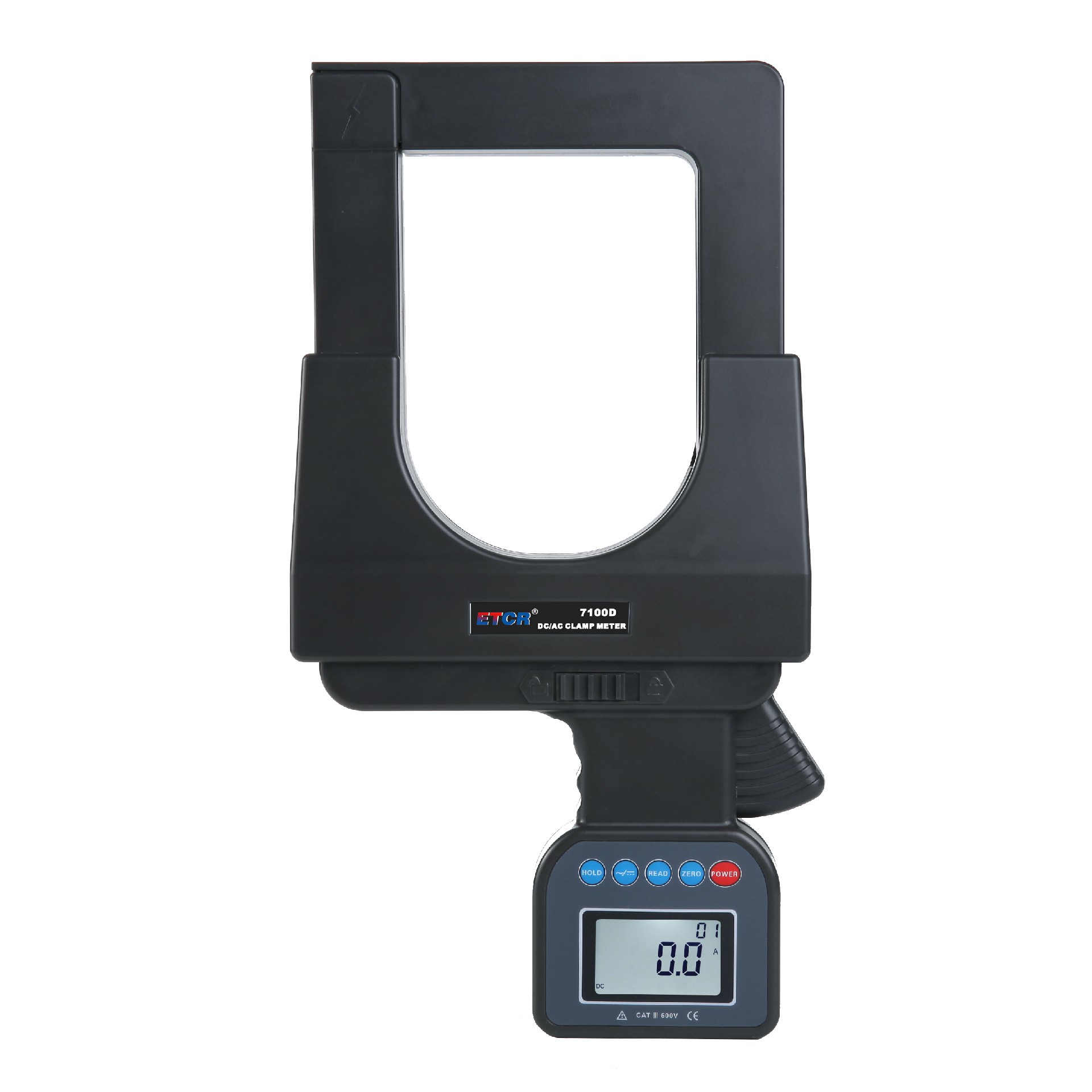

    ETCR7100D-1.JPGETCR EM7100D Super Large Caliber DC/AC Clamp Leakage Current Meter108mm×148mmAC 0.0A~1000ADC 0.0A~2000AUSB
