What test items are required for on-site electrical work, whether for acceptance inspection, routine inspections or troubleshooting?

Ground resistance, insulation resistance, leakage protection operating characteristics, line power parameters, DC resistance, socket wiring...each item is a must-measure content required by electrical safety regulations. Different test items originally correspond to different special instruments.

The EM7600 Portable Comprehensive Electrical Tester integrates all these functions into a single device. The following is a detailed description of the tests it can perform.

I. Ground Resistance Measurement

The reliability of the grounding system is directly related to personal safety and equipment protection.

EM7600 uses the three-wire method to measure ground resistance and is suitable for resistance value detection in building grounding, equipment grounding, lightning protection grounding and other scenarios.

II. Insulation Resistance Measurement

Insulation aging is the main hidden danger of leakage and short circuit.

The EM7600 features four test voltage ranges and can be used to test the insulation performance of motor windings, cable cores to ground, distribution cabinet busbars and other components.

Ⅲ. RCD leakage protector test

Whether the leakage protector operates normally is directly related to the effectiveness of electric shock protection.

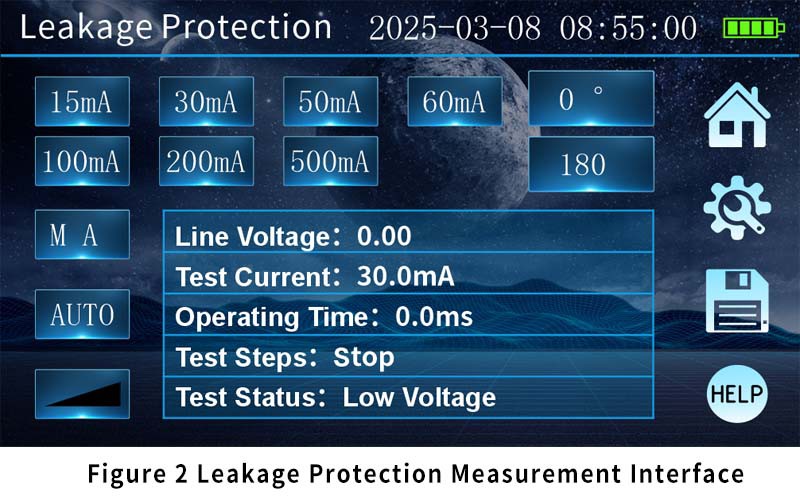

EM7600 can output 8 levels of leakage current and measure tripping time and tripping current. Used to verify whether the on-site leakage protection operates normally within the calibrated value.

IV. Electrical Parameter Measurement

What is the power quality of distribution circuits?

ETCR7600 can measure AC voltage, AC current, active/reactive/apparent power, power factor, frequency, phase, and 3rd and 5th harmonic content. It can be used to determine whether the voltage of the distribution line is stable, whether the three phases are balanced, and whether the harmonics exceed the standard.

V. DC Resistance, Socket Testing, and Data Management

DC resistance measurement adopts the four-wire method, which can eliminate errors caused by test lead resistance. It is suitable for accurate measurement of low-resistance components such as transformer windings, motor coils and contactor contacts.

The socket test function can measure 10 indicators including line voltage status, live-neutral wire sequence, live ground wire and ground resistance condition.

The operation adopts a 7-inch touch color screen, the function modules can be directly clicked to enter, and the wiring diagram is built-in. The test data can store 1,000 groups and supports Bluetooth mobile phone viewing and USB computer export.

VI. Conclusion

The EM7600 can perform all core electrical safety tests required at construction sites—including ground resistance, insulation resistance, RCD leakage protection testing, and power parameters—as well as auxiliary functions such as DC resistance and outlet testing. A single device covers a wide range of testing tasks.

Selection between EM7600 and EM7600B: EM7600 is equipped with one Φ32mm current clamp, which is suitable for conventional ground resistance and power parameter testing; EM7600B is equipped with two Φ50mm current clamps, which additionally supports double clamp method and selection method to measure ground resistance. The current range is extended to 600A, which is suitable for users who need to quickly measure multi-point grounding systems or high current scenarios.
