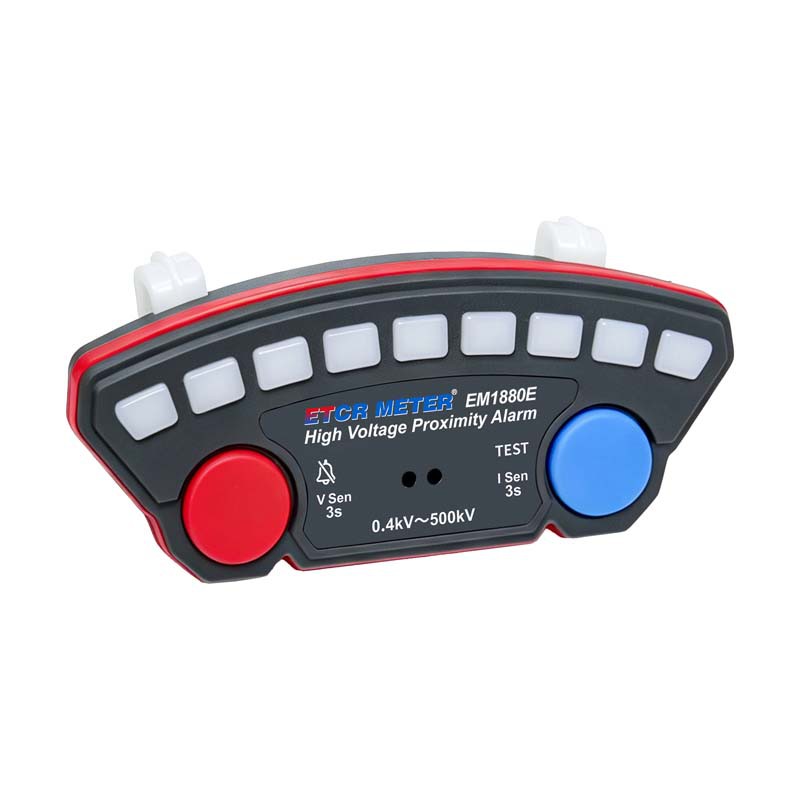

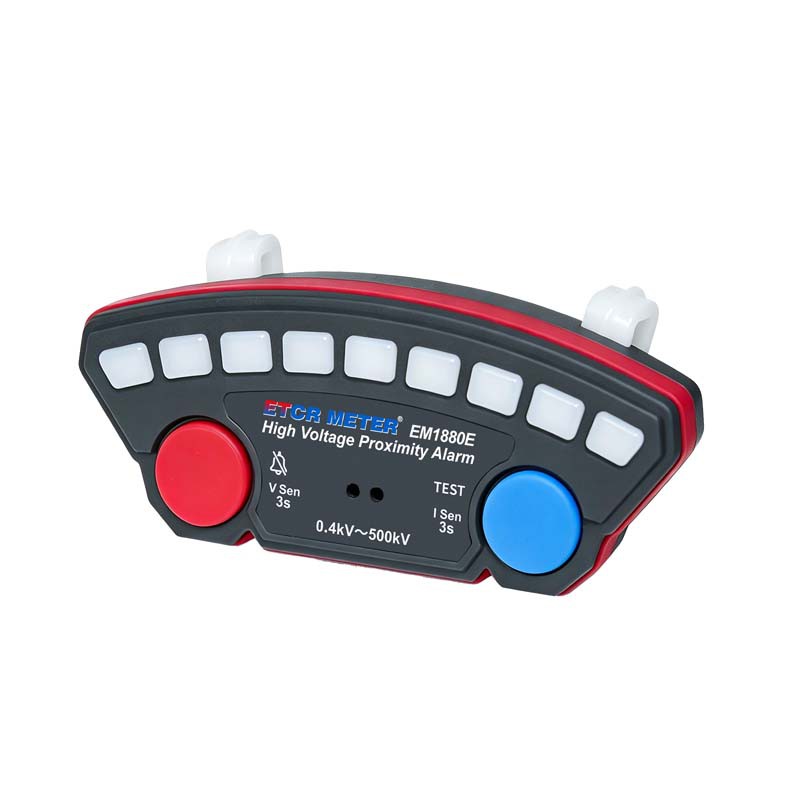

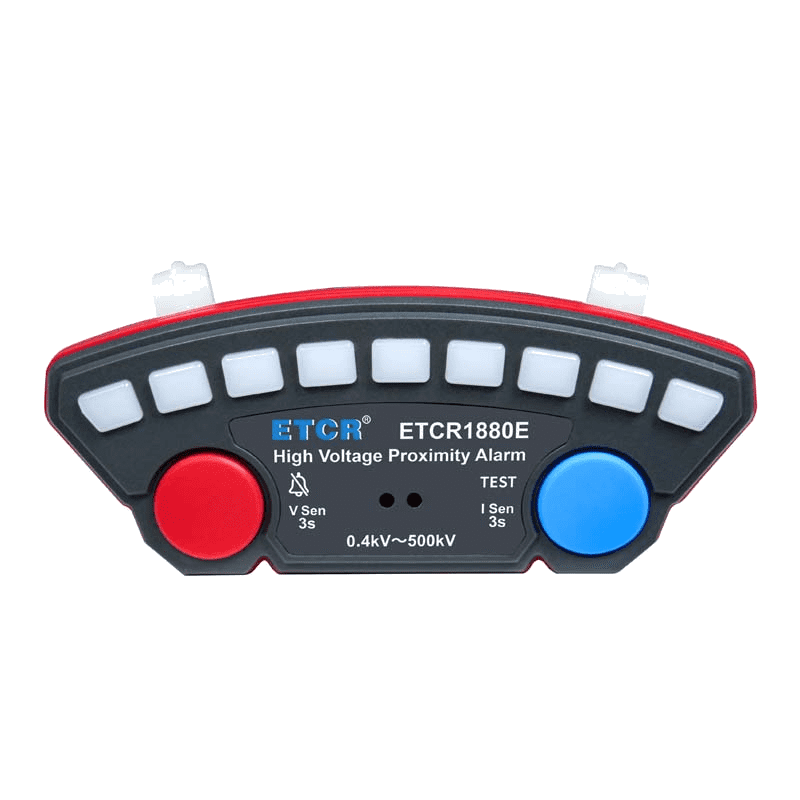

EM1880E Safety Helmet High-Voltage Proximity Alarm provides workers performing live-line operations with a safe, practical, and convenient new type of high-voltage proximity alarm device. When working on live lines, the safety distance between the operator and live parts must not be less than the requirements specified in relevant work procedures. When workers wear this alarm, it triggers audible and visual alerts upon approaching a high-voltage live conductor within a certain distance—based on the safety distance corresponding to the voltage level—to remind electrical workers to exercise caution and prevent high-voltage electric shock accidents. The alarm is widely used in high-voltage work environments such as the power industry, railways, and industrial and mining enterprises.

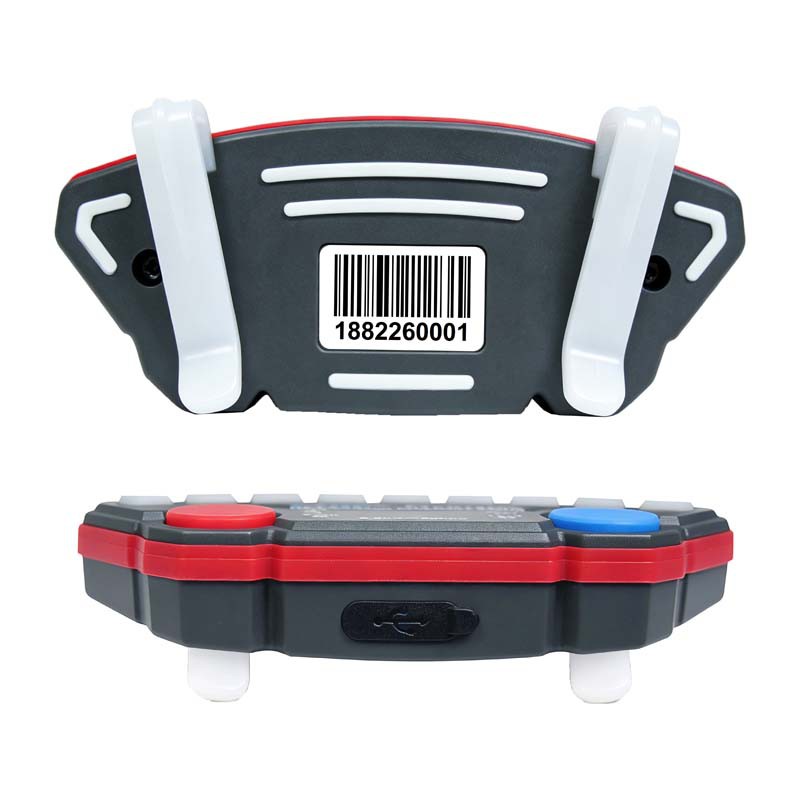

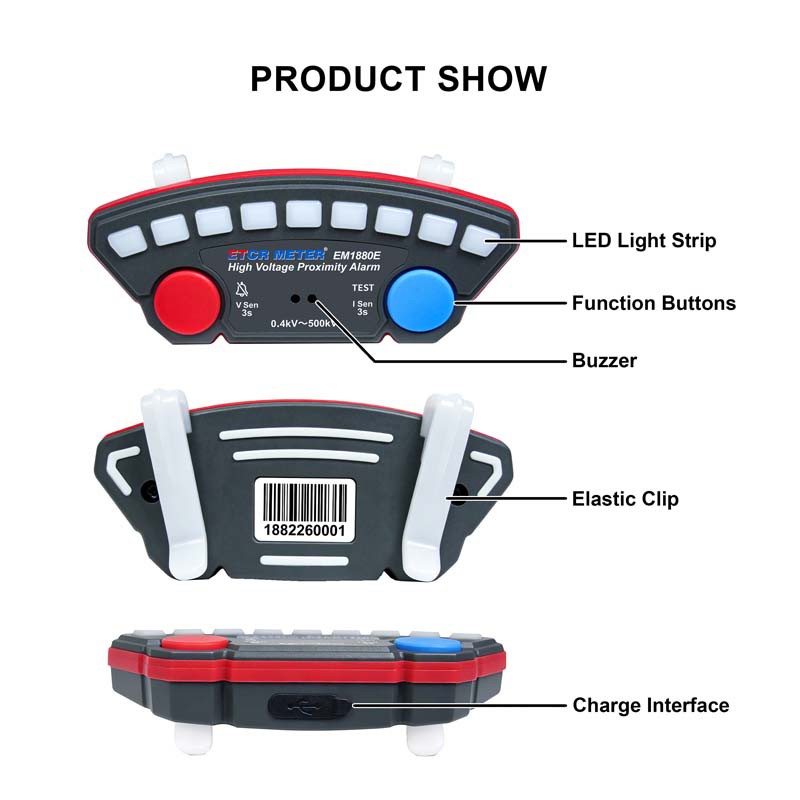

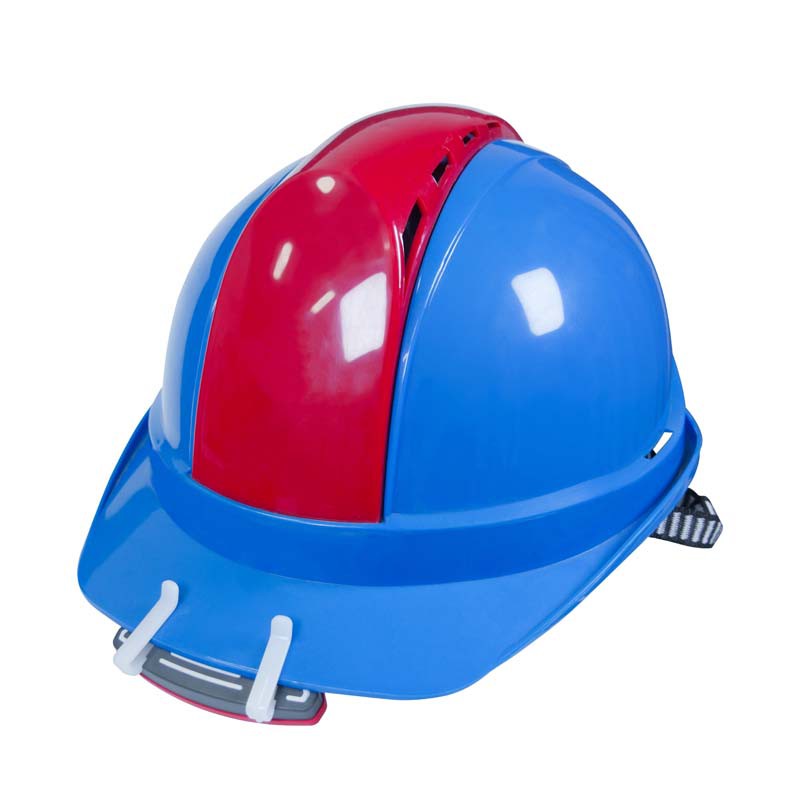

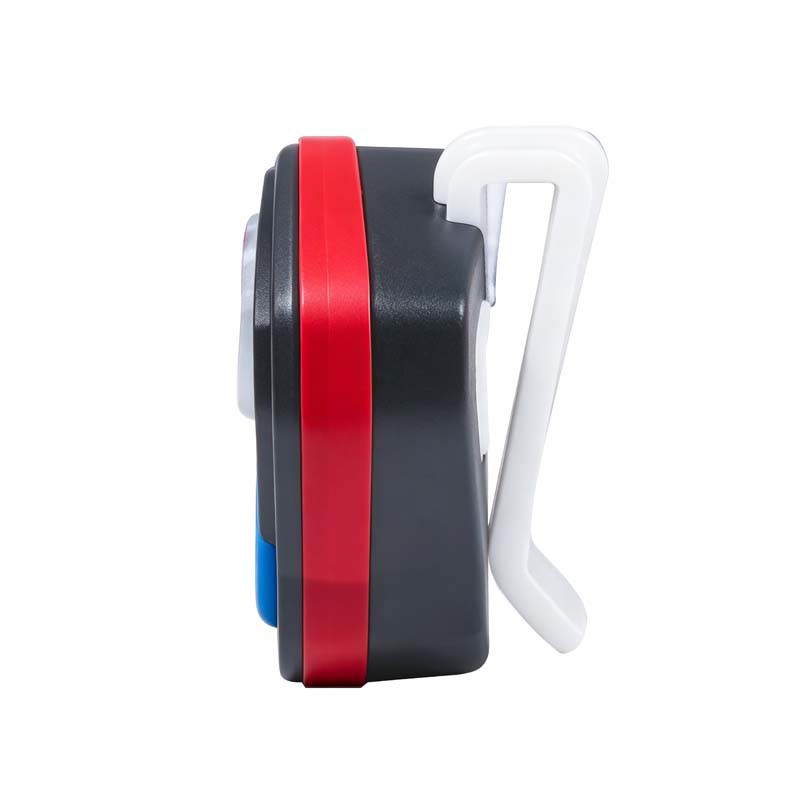

EM1880E Safety Helmet High-Voltage Proximity Alarm features two detection and alarm modes: voltage detection (monitoring electric fields) and current detection (monitoring magnetic fields). It utilizes non-contact sensing technology to comprehensively monitor overhead electric and magnetic fields, with a voltage detection range of 0.4 kV to 500 kV and a current detection range of 1 A to 200 A. Both detection modes are enabled simultaneously, and an alarm is triggered when values exceed the alarm threshold. When a voltage alarm is triggered, the LED strip lights up red; when a current alarm is triggered, the LED strip lights up blue, providing users with more comprehensive and safer protection. The alarm also features self-testing, adjustable alarm sensitivity, a mute function, progressive alarm indication, and voltage source direction indication. The alarm also features Bluetooth connectivity, allowing users to adjust alarm sensitivity, check battery level, and view alarm parameters via Bluetooth. The alarm is energy-efficient and durable, with a standby time of up to 7 days on a full charge. It attaches to the brim of a safety helmet using two elastic clips; its anti-slip design ensures a secure fit, and it is very easy to install or remove.

Product Features

1. Non-contact sensing technology: Monitors electric and magnetic fields in the air from all directions, with high alarm sensitivity.

2. Two detection and alarm modes: Voltage detection and current detection, providing users with more comprehensive and safer protection.

3. Self-test function: Continuously checks whether the alarm is operating normally.

4. Alarm Sensitivity Settings: Three adjustable levels—Low, Medium, and High—to accommodate use in complex electric field environments.

5. Silent Mode: Prevents alarm sounds from causing interference in environments with strong electric fields.

6. Progressive Alarm Indication: Alerts workers to their distance from live conductors via the flashing frequency of the LED light bar and the beeping frequency of the buzzer.

7. Voltage Source Direction Indication: The LED strip indicates the direction of the voltage source (for voltage detection only).

8. Battery Level Check: The battery level can be checked via the LED strip upon completion of the self-test.

9. Low Battery Alert: When the battery level drops below one bar, one LED on the LED strip flashes green to remind the user to recharge the alarm promptly.

10. Bluetooth Communication: Allows for sensitivity adjustment and viewing of alarm parameters.

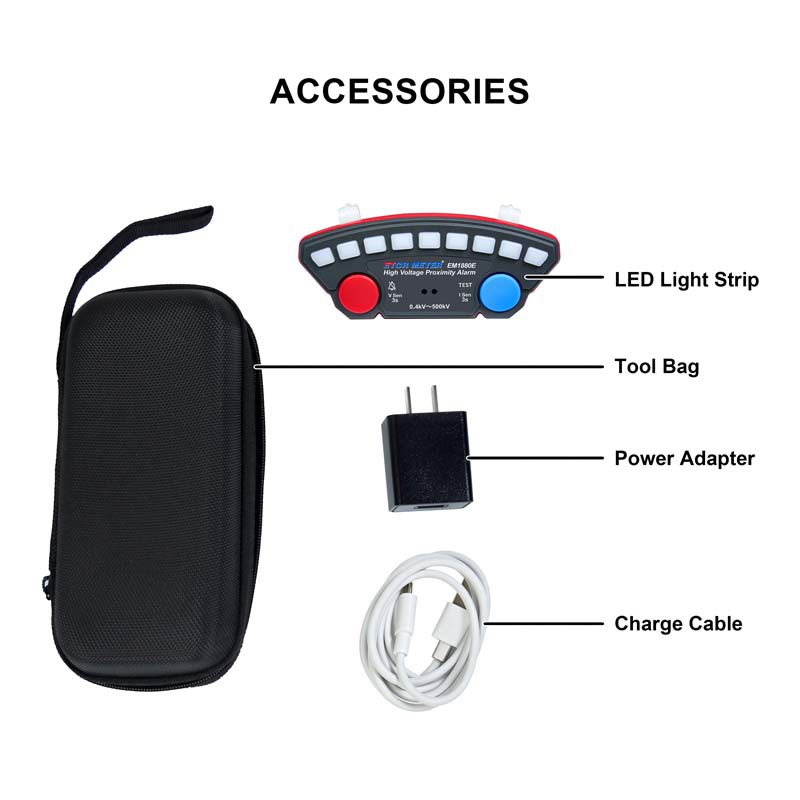

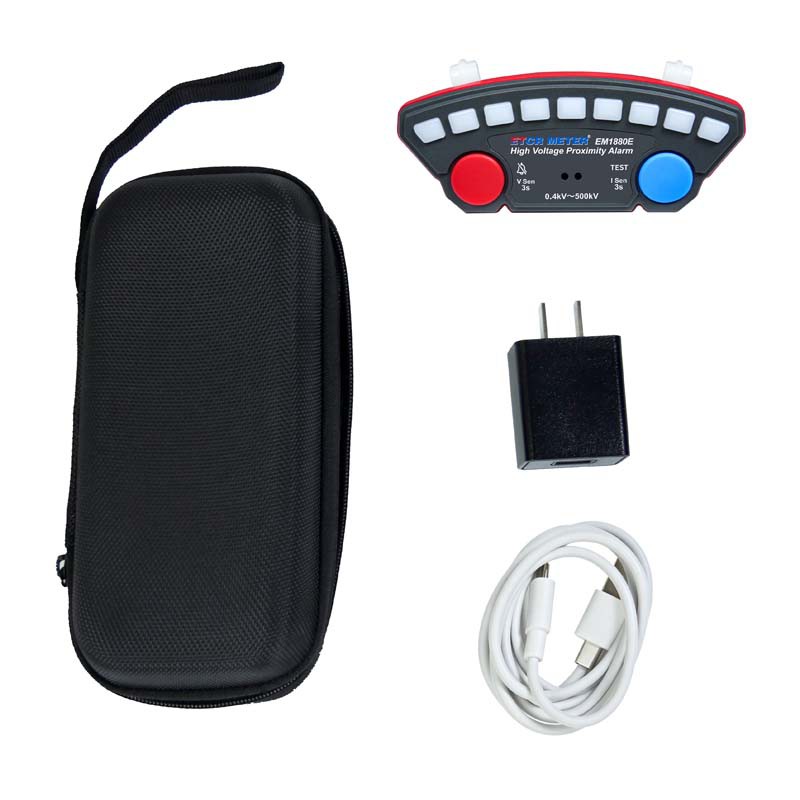

11. Equipped with a shielded carrying case; placing the alarm inside the case prevents it from triggering an alarm.
