    EM6670 High Precision Clamp Leakage Current Meter
  • Product Series : High Accuracy Clamp Leakage Current Meter

    • Main Features

      Measurement of AC leakage current, AC current, true effective value, filtering, maximum/minimum/average value, harmonics, distortion rate, etc.
      Current Range: AC 0.00mA ~1200A
      Harmonic Analysis: 21times
      Clamp Jaw Size: Φ70mm
      Data Storage: 2000 Groups
      Bluetooth Communication Function
      Flashlight Function
      Rechargeable Lithium-ion Battery (Type-C charging port)

    Product Introduction

    EM6670 clamp-on leakage current meter, also known as a clamp-on leakage current tester, clamp-on ammeter, multifunctional clamp-on leakage current meter, or ground fault current tester, is used for measuring AC leakage current and AC current. The clamp meter features true RMS measurement, filtering functions, and testing capabilities such as maximum/minimum/average values, harmonics, and distortion ratio. The clamp meter’s sensor core utilizes a ferrite alloy and dual-layer shielding technology, making it virtually immune to external electromagnetic fields. This ensures high precision, stability, and reliability for continuous, uninterrupted measurements over the long term. It is widely applicable in fields such as power, telecommunications, meteorology, railways, oil fields, construction, metrology, research and educational institutions, and industrial and mining enterprises.
    EM6670 clamp-on leakage current meter can measure currents in the 40 Hz to 1 kHz frequency range. It also features a backlight, flashlight, data storage, and Bluetooth connectivity. Powered by a high-capacity lithium battery and equipped with a Type-C charging port, this meter is an essential tool for electrical safety inspections.
    ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.

    Product Features
    1. Wide frequency range: capable of measuring currents from 40 Hz to 1 kHz, making it an essential tool for electrical safety inspections.
    2. Features a Permalloy core and dual-layer shielding technology, ensuring high accuracy, strong anti-interference performance, and a resolution of 10 μA.
    3. The clamp meter features true RMS measurement, filtering, and testing functions such as maximum/minimum/average values, harmonics, and distortion ratio.
    4. Data storage function.
    5. Bluetooth communication function.
    6. Flashlight function.
    7. Lithium battery (Type-C charging port).

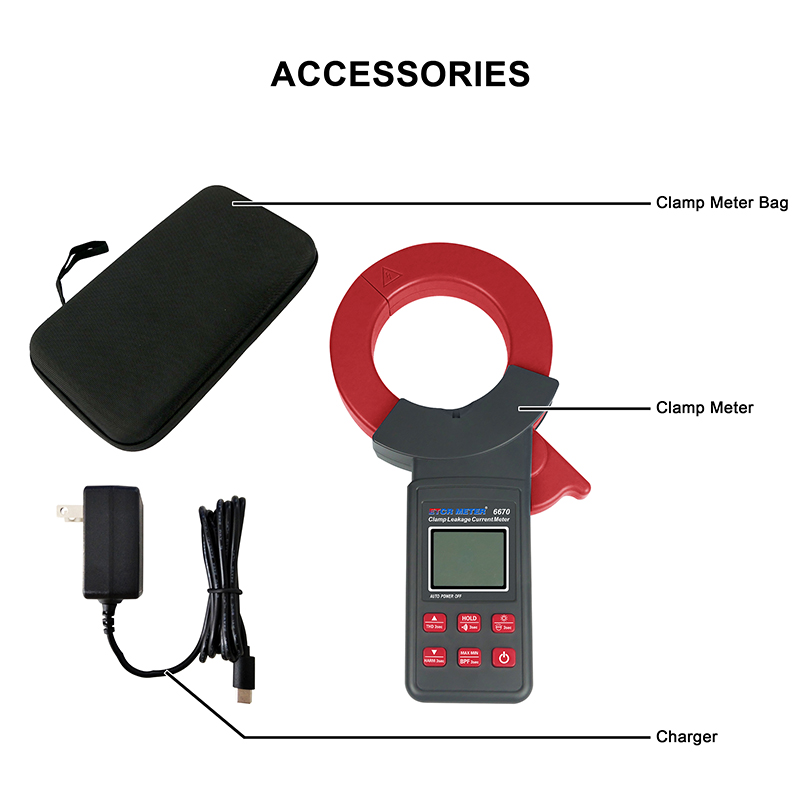

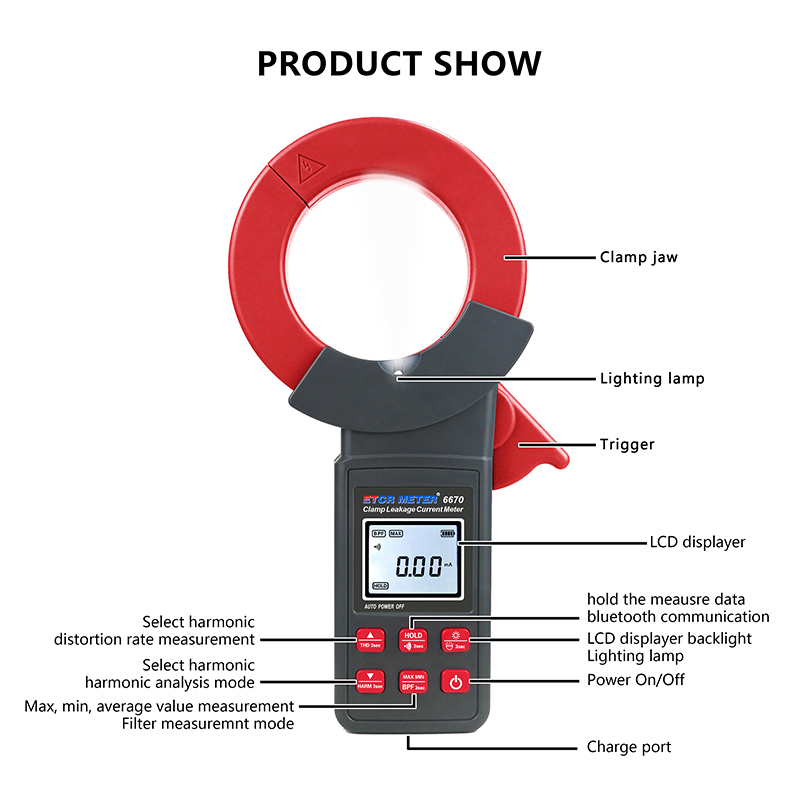

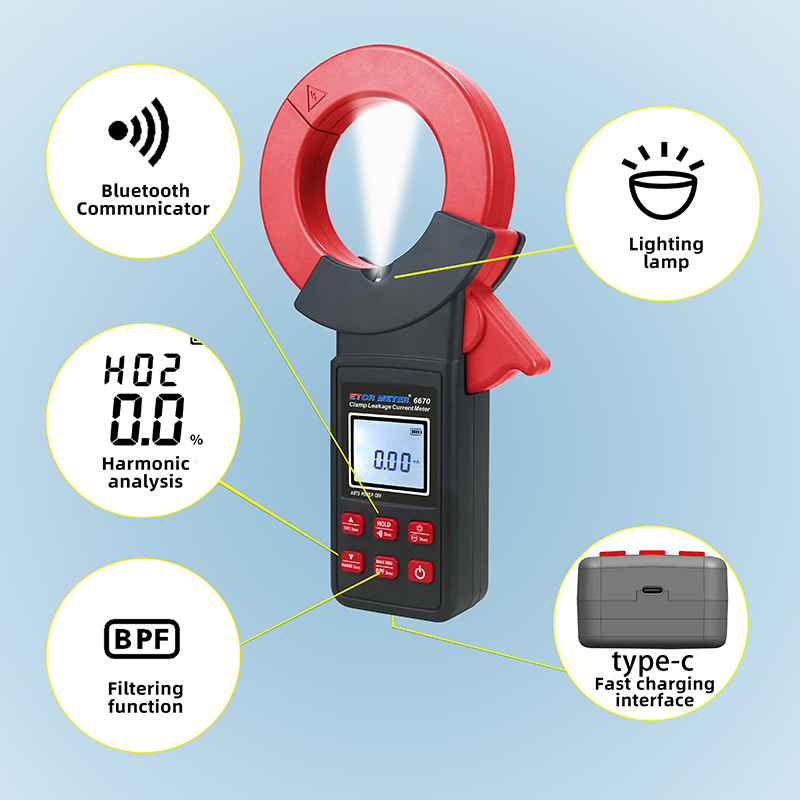

    EM6670 (6).jpg EM6670 (7).jpg EM6670 (8).jpg

    Technical Parameters

    SpecificationParameters Description
    Power Supply3.7V DC, 1000mAh lithium battery
    LCD ScreenOverall: 43mm×38mm; Display area: 36.5mm×29mm, with backlight
    Measuring Range0.00mA~1200A
    Resolution10μA
    Accuracy0.00mA~999mA         ±1.5%rdg±5dgt
    1.00A~300A               ±1.5%rdg±5dgt
    300A~599A                ±2.0%rdg±5dgt
    600A~1199A              ±2.5%rdg±5dgt
    1200A~2000A            ±2.5%rdg±5dgt
    FlashlightEquipped
    Filter FunctionFilter ON: 40Hz~70Hz; Filter OFF: 40Hz~1kHz
    Harmonic AnalysisUp to 21st order (≥10mA)
    THD TestAvailable (≥10mA)
    Max/Min ValueSupported
    Average ValueSupported
    Data HoldAvailable
    Data Storage2000 records (saved via APP)
    Overrange DisplayShows "OL" when overloaded
    BluetoothAvailable; measure & view data on mobile via APP
    Auto Power-offAuto shutdown in approx. 5 mins after startup for power saving
    Battery Indicator4-level bar display
    Sampling Rate2 readings per second
    Operating Current60mA; 72mA with flashlight on
    Jaw DiameterΦ70mm
    Dimension237mm×131mm×40mm
    WeightApprox. 477g (with battery); 750g total (including accessories)
    Circuit Voltage TestFor AC circuits ≤600V
    Dielectric StrengthAC 3700V/rms (between core and housing)
    Safety StandardIEC1010-1, IEC1010-2-032, Pollution Degree 2, CAT Ⅲ(600V)
    Operating Condition-10℃~50℃, RH<80%
    Storage Condition-20℃~60℃, RH<70%

    Model Comparison

    Product ModelCurrent RangeJaw SizeHarmonic AnalysisStorage Function

    EM6530 (1)(1).jpg

    EM6530
    AC 0.000mA~60.0AΦ30mm——99 groups

    EM6540 (1)(1)(1).png

    EM6540
    AC 0.00mA~300.0AΦ40mm——99 groups

    EM6640 (1).jpg

    EM6640
    AC 0.00mA~300.0AΦ40mm21 times2000 groups

    EM6670 (1)(1)(1).png

    EM6670
    AC 0.00mA~1200AΦ70mm21 times2000 groups

    EM6680 (1).jpg

    EM6680
    AC 0.00mA~2000A80mm×80mm21 times2000 groups

    EM7100 (1)(1)(1)(1).png

    EM7100
    AC 0.0mA~3200A108mm×148mm——99 groups

    EM7100A (1)(1)(1).jpg

    EM7100A
    AC 0.0A~4000A108mm×148mm——99 groups
